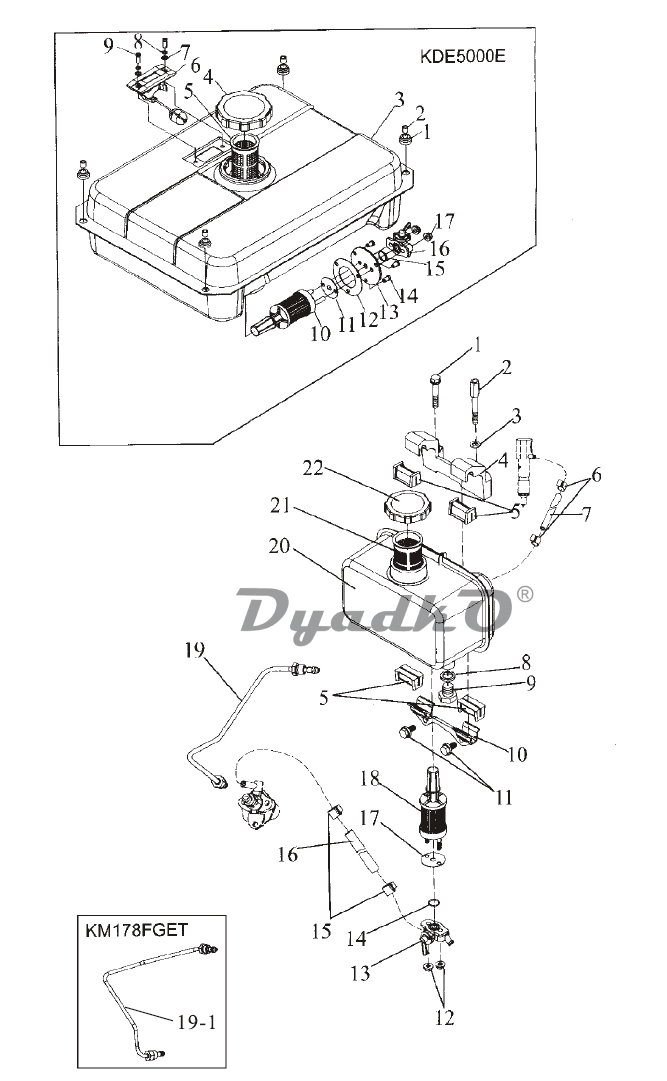

Схема (деталировка) дизельные двигатели с горизонтальным валом KIPOR KM178F Топливный бак. Подбор по модели, низкие цены в интернет-магазине Дядько.ру с доставкой по Москве и всей России

1	Bolt M8X45
1	Cushion
2	Set Bolt of Fuel Tank Upper Support
2	Sheath
3	Fuel Tank Weldment Assem.
3	Gasket 8
4	Fuel Tank Upper Support
4	Fuel Tank Cap
5	Cushion
5	Fuel Filler Screen
6	Fuel Return Pipe Clip
6	Fuel Indicator Assem.
7	Fuel Return Pipe
7	Spring Gasket 5
8	Gasket 5
8	Drain Bolt Washer
9	Bolt M12X 1.25X 14
9	Plus Screw M5X12
10	Element Assem.
10	Fuel Tank Lower Support
11	Fuel Cleaner Washer
11	Nut M6X14
12	Joint Washer
12	Nut M6
13	Sealing Plate
13	Fuel Tank Switch Assem.
14	O-Ring 13.2X1.8
14	Plus Screw M5X8
15	Clip
15	O-Ring 13.2X1.8
16	Throttle Switch Assem.
16	Fuel Pipe
17	Nut M6
17	Fuel Filter Washer
18	Element Assem.
19	High-pressure Fuel Pipe Unit
19-1	High-pressure Fuel Pipe Unit
20	Fuel Tank Weldment Assem.
21	Fuel Filler Screen
22	Fuel Tank Cap
	Fuel Return Pipe
	High-pressure Fuel Pipe Unit
	High-pressure Fuel Pipe Unit
