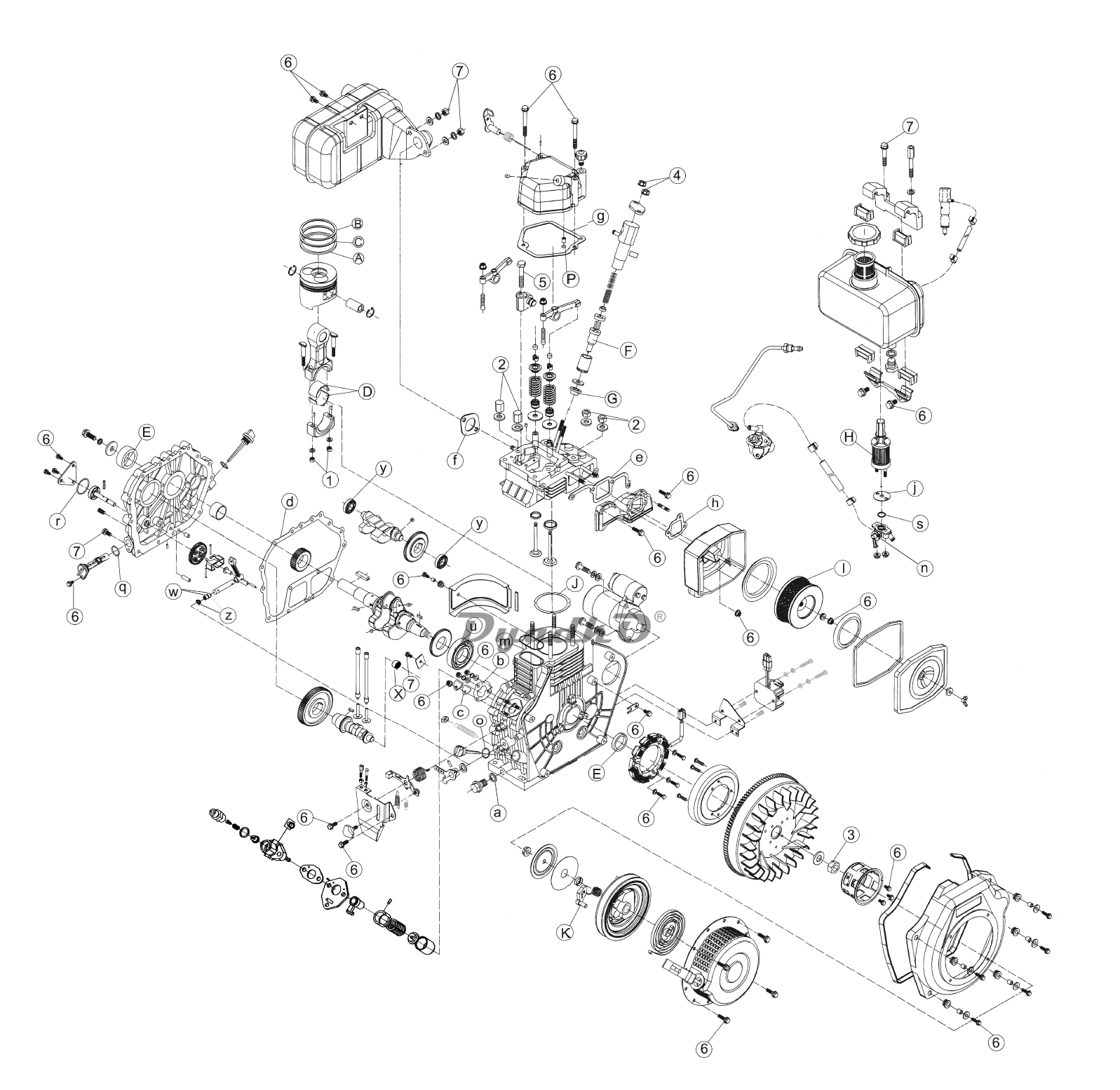

Схема (деталировка) дизельные двигатели с горизонтальным валом KIPOR KM178F Ремкоплекты. Подбор по модели, низкие цены в интернет-магазине Дядько.ру с доставкой по Москве и всей России

1	18-21
2	42-46
3	100-120
4	10-12
5	20-23
6	10-12
7	18-20
	OIL SEAL
	FASTENING TORQUE OF MAIN BOLTS & NUTS
	EASY DESTROYED PARTS
	BEARINGS
	WASHER KIT
	RINGS
a	Washer Unit of Drain Plug
A	Oil Ring Unit (4) Piston & Connecting Rod Assem.
b	Fuel Injection Pump Washer
B	First Air Ring (4) Piston & Connecting Rod Assem.
c	Joint Washer
C	Second Air Ring (4) Piston & Connecting Rod Assem.
d	Crankcase Cover Washer
D	Connecting Rod Bushinc (4) Piston & Connecting Rod Assem.
e	Intake Pipe Washer
E	Oil Seal Sg30 x 45 x 8 (1) Cylinder Block Assem.
f	Outtake Pipe Washer
F	Nozzle (8) Fuel Injection Valve Assem.
g	Cylinder Head Cover Washer
G	Heat Insulator (2) Cylinder Head Assem
h	Air Cleaner Washer
H	Element Unit (11) Fuel System
I	Air Cleaning Element Unit (7) Air Intake System
j	Fuel Filter Washer
J	Cylinder Head Gasket (1) CylinderBlock Assem.
K	Startar Ratchet (14) Manual Starting Assem.
m	Sheet Gasket
n	O-Ring 11 x 1.9
o	O-Ring 22.5 x 2.4
p	O-Ring 12x1.9
q	O-Ring 25 x 2.4
r	O-Ring 34 x 1.8
s	O-Ring 13.2x1.8
u	Ball Bearing 6307/P5
w	Needle Bearing 7941/8
X	Needle Bearing HK1512
y	Ball Bearing 6202/P5
z	Lever Shaft Oil Seal
