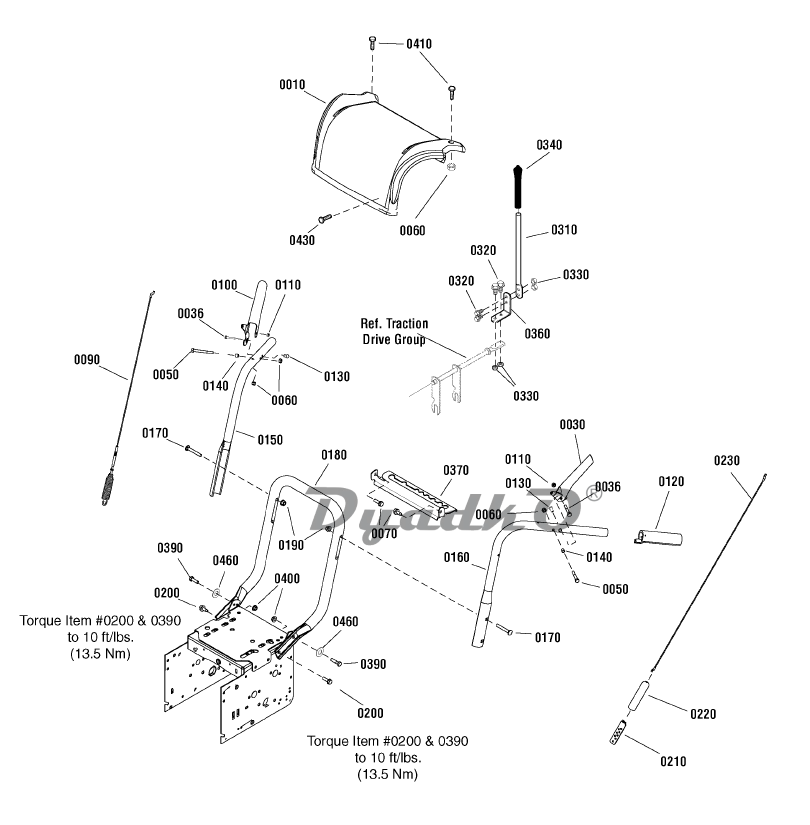

Схема (деталировка) снегоуборщики бензиновые CHAMPION (IGP) ST 761 BS Handles & Controls Group. Подбор по модели, низкие цены в интернет-магазине Дядько.ру с доставкой по Москве и всей России

10	PANEL, Dash
30	LEVER, Clutch, L.H.
36	BOLT, Shoulder, 1/4 x 1-1/4
50	CAPSCREW, Hex Head, 1/4-20 x 1-3/4, G5
60	NUT, Hex Lock, ESNA Light, 1/4-20
70	SCREW, Hex Washer Head, Taptite, 1/4-20 x 5/8
90	CABLE & SPRING ASSSEMBLY, Auger Drive, R.H.
100	LEVER, Clutch, R.H.
110	NUT, Hex Lock, Nylon Insert, 10-24
120	GRIP
130	SPACER, Stepped
140	SPACER, 1/4 ID x 3/8 OD x 5/16
150	HANDLE, Upper, R.H.
160	HANDLE, Upper, L.H.
170	BOLT, Carriage, 5/16-18 x 2-1/4, G5
180	HANDLE, Lower
190	NUT, Hex Flange, ESNA, 5/16-18
200	SCREW, Hex-Washer head, Taptite, 5/16-18 x 3/4
210	BRACKET, Cable Adjusting
220	BOOT, Spring
230	CABLE, Front Drive
250	BOLT, Carriage, 5/16-18 x 1-3/4, G5
310	ROD, Shift
320	BOLT, Hex, 1/4-20 x 3/4, G5
330	NUT, Hex Centerlock, 1/4-20
340	GRIP, Lever
360	LEVER, Spring Shift
370	BRACKET, Gear Select
390	CAPSCREW, Hex Head, 5/16-18 x 1, G5
400	NUT, Hex Flange, Two Way Lock, 5/16-18
410	BOLT, Carriage, 1/4-20 x 1-1/4, G5
430	SCREW, Pan Head Torx, 1/4-20 x 3/4
460	WASHER, Flat
