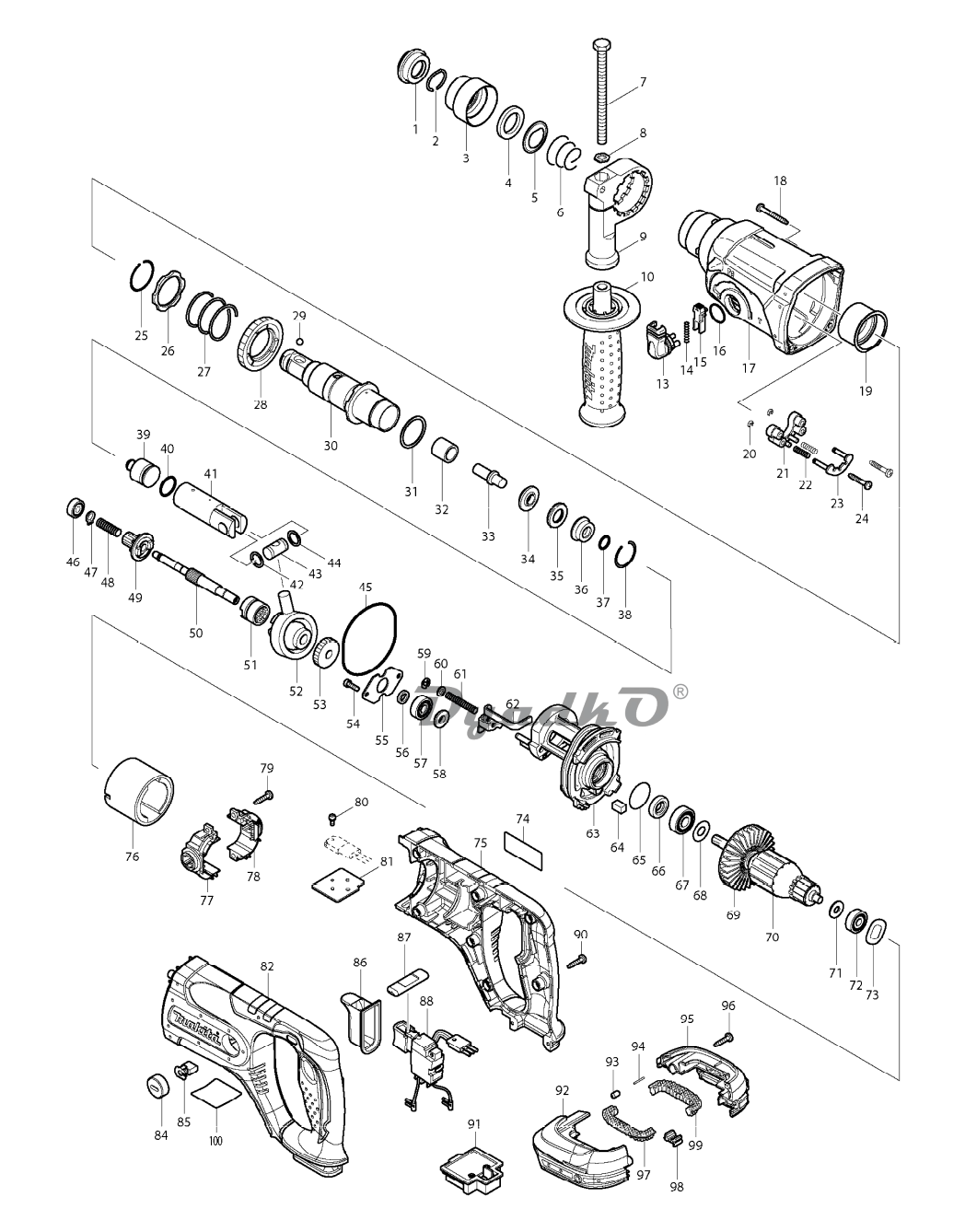

Схема MAKITA DHR241

1 CAP 35
2 RING SPRING 19
3 CHUCK COVER
4 RING 21
5 GUIDE WASHER
6 CONICAL COMP. SPRING 21-29
7 HEX. BOLT M8X120
8 HEX. WASHER
9 GRIP BASE
10 GRIP 36 COMPLETE
13 CHANGE LEVER
14 COMPRESSION SPRING 3
15 LOCK BUTTON
16 O RING 17
17 GEAR HOUSING COMPLETE
18 TAPPING SCREW 4X35
19 NEEDLE BEARING COMPLETE
20 STOP RING E-3
21 GUIDE BASE
22 COMPRESSION SPRING 4
23 LOCK PLATE COMPLETE
24 TAPPING SCREW 4X25
25 RING SPRING 29
26 WASHER 31
27 COMPRESSION SPRING 32
28 SPUR GEAR 51
29 STEEL BALL 7.0
30 TOOL HOLDER COMPLETE
31 FLAT WASHER 28
32 SLEEVE 9
33 IMPACT BOLT
34 RING 10
35 CUSHION RING 13
36 O RING CASE
37 O RING 9
38 RING SPRING 28
39 STRIKER
40 O RING 16
41 PISTON CYLINDER
42 FLAT WASHER 12
43 PISTON JOINT
44 FLAT WASHER 12
45 O-RING 63
46 BALL BEARING 606ZZ
47 RETAINING RING S-7
48 COMPRESSION SPRING 7
49 SPUR GEAR 10
50 CAM SHAFT
51 CLUTCH CAM
52 SWASH BEARING 10
53 HELICAL GEAR 25
54 HEX. SOCKET HEAD BOLT M4X12
55 BEARING RETAINER
56 FLAT WASHER 8
57 BALL BEARING 608ZZ
58 RING 8
59 STOP RING E-4
60 FLAT WASHER 5
61 COMPRESSION SPRING 6
62 CHANGE PLATE
63 INNER HOUSING COMPLETE
65 O RING 26
66 OIL SEAL 10
67 BALL BEARING 6000DDW
68 FLAT WASHER 10
69 FAN 64
70 ARMATURE ASS\'Y 18V INC. 67-69,71,72
71 FLAT WASHER 7
72 BALL BEARING 627DDW
73 WAVE WASHER 15
74 DHR241 NAME PLATE 20MM
75 HOUSING SET INC. 82
76 YOKE UNIT
77 BRUSH HOLDER COMPLETE
79 TAPPING SCREW 4X18
80 PAN HEAD SCREW M3X10
81 HEAT SINK
82 HOUSING SET INC. 75
84 HOLDER CAP
85 CARBON BRUSH CB-441
86 SWITCH COVER
87 F/R CHANGE LEVER
88 SWITCH TG553FSB-7B
90 TAPPING SCREW 4X18
91 TERMINAL
92 BATTERYHOUSING SET INC. 95
93 RUBBER PIN 5
94 PIN 1.5
95 BATTERYHOUSING SET INC. 92
96 TAPPING SCREW 4X18
97 CUSHION RUBBER
98 CUSHION
99 CUSHION RUBBER
100 DHR241 SERIAL NO. LABEL
101 TOOL HOLDER ASS\'Y INC. 25-28,30,32-38
A01 DEPTH GAUGE
A02 DC18RC FAST CHARGER
A03 BATTERY BL1830 SET
A04 BATTERY COVER
A05 PLASTIC CASE COMPLETE
