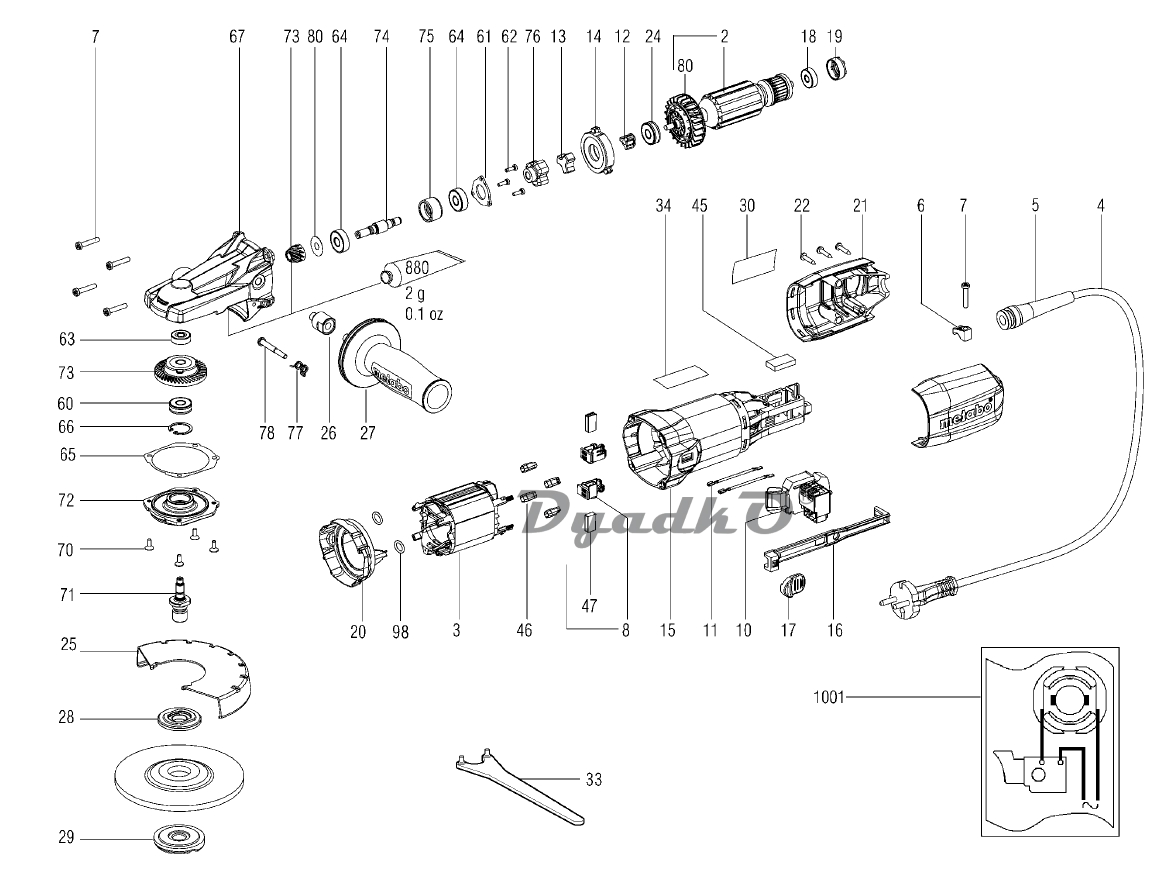

Схема METABO WEF 9-125 Quick (13060000)

2	Armature compl., 230V
3	Field coil w.adapt.,230 V
4	Cable with plug
5	Cable sleeve
6	Cable clip
7	Self-tap. fill. h. screw
8	Brush holder compl. cut out,230V
10	Switch with elektronic,230 V / 50-60 Hz
11	Strand compl.
12	Carrier
13	Buffer
14	Bearing flange
15	Motor housing
16	Switch rod
17	Switch slide,H/L
18	Ball bearing,6x19x6
19	Rubber bushing
20	Baffle
21	Motor cap 2 part
22	Self-tap. fill. h. screw
24	Ball bearing,8x22x7
25	Wheel guard compl.
26	Extension
27	Side support handle compl.
28	Clamping flange
29	Quicknut,M14
30	Rating plate
33	Part not needed
34	Part not needed
45	Insert, selfsticking
46	Shrink hose
47	Carbon brush set cut-off
49	Flange compl.
60	Ball bearing,8x22x7
61	Bearing cover
62	Fillister head screw
63	RI.KU.LA. 6X 19X 6
64	Ball bearing,8x22x7
65	Compensating washer
66	Retaining ring
67	Gear housing compl.
70	Countersunk screw
71	Spindle
72	Flange
73	Bevel gear and bevel gear
74	Drive shaft
75	Spacer bush
76	Carrier
77	Spring clip
78	Tight-fit screw
80	Fan
98	O-ring
880	Grease 100G
1001	Wiring diagram
