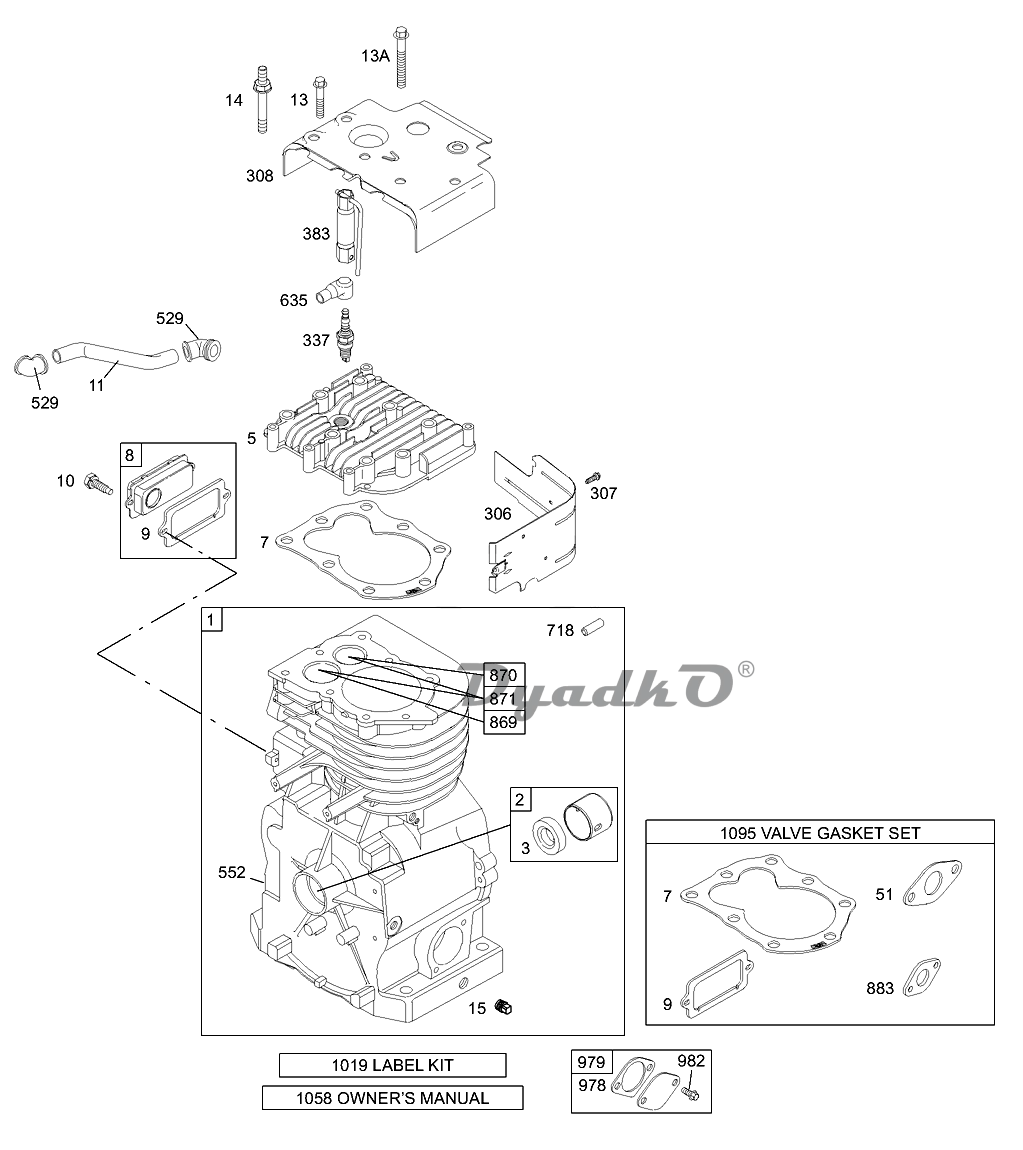

Схема (деталировка) бензиновые двигатели с горизонтальным валом BRIGGS&STRATTON 133432-0038-03 Cylinder, Head, Kits/Gaskets Sets - Valves. Подбор по модели, низкие цены в интернет-магазине Дядько.ру с доставкой по Москве и всей России

1	Cylinder Assembly
2	Kit-Bushing/Seal (Magneto Side)
3	SEAL, Oil (Magneto Side)
5	Head-Cylinder
7	Gasket-Cylinder Head
8	Breather Assembly
9	Gasket-Breather
10	Screw (Breather Assembly)
11	Tube-Breather
13	Screw (Cylinder Head)
13A	Screw (Cylinder Head)
14	Stud (Cylinder Head)
15	Plug-Oil Drain (Square Head)(1/4\" Diameter, Magnetic)
15	PLUG, Oil Drain (Square Head)(1/4\" Diameter)
51	Gasket-Intake
306	Shield-Cylinder
307	Screw (Cylinder Shield)
308	Cover-Cylinder Head
337	Plug-Spark (Resistor)
383	Wrench-Spark Plug
529	Grommet
552	Bushing-Governor Crank
635	BOOT, Spark Plug
718	PIN, Locating
869	Seat-Valve (Intake)
870	Seat-Valve (Exhaust) (Cobalite)
871	Bushing-Valve Guide (Exhaust)
871	Bushing-Valve Guide (Intake)
883	Gasket-Exhaust
978	Gasket-Oil Gard
979	Cover-OIL GARD
982	SCREW (Oil GARD) (Oil GARD Cover)
1019	Kit-Label
1058	Operator\'s Manual
1095	Gasket Set-Valve
