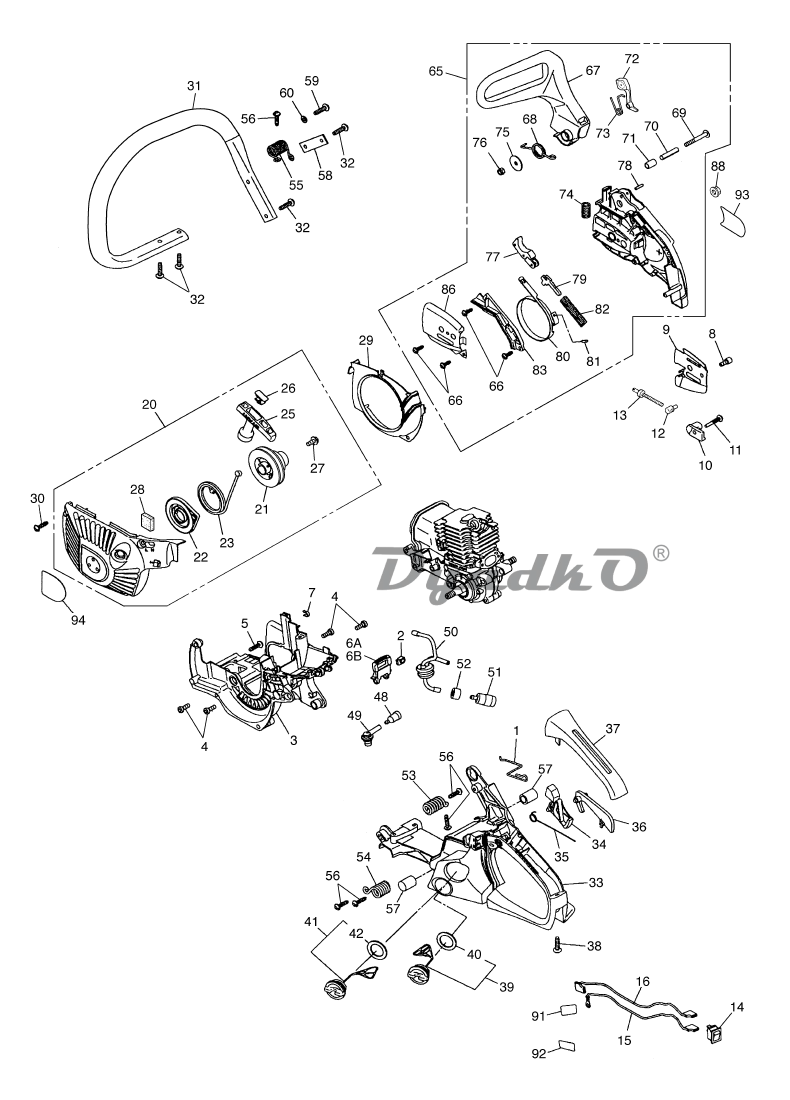

Схема ZENOAH G 3300, G 3300 EZ, G 3300 E/CE 2 POWER UNIT

1	ROD
2	GROMMET
3	CASE
4	SCREWM5xL14 T27
5	SCREWTP5 (P-tight) xL19 T27
6A	KNOB
6B	KNOB
7	CLIP
8	BOLT
9	PLATE
10	CATCHER
11	SCREWTP5 (P-tight) xL19 T27
12	NUT
13	SCREW
14	SWITCH ASSY
15	CORD EARTH
16	CORD SWITCH
20	STARTER ASSY
21	• REEL
22	• SPRING COMP.
23	• ROPE ø3
25	• KNOB
26	• KNOB CAP
27	• SCREWM5xL12
28	• CUSHION
29	COVER
30	SCREWTP5 (P-tight) xL19 T27
31	HANDLE
32	SCREWTP5 (P-tight) xL27 T27
33	HANDLE COMP.
34	LEVER
35	SPRING
36	ARM
37	COVER
38	SCREWTP5 (P-tight) xL19 T27
39	CAP ASSY
40	• GASKET
41	CAP ASSY
42	• GASKET
48	BREATHER ASSY
49	GROMMET
50	PIPE ASSY
51	FILTER
52	COLLAR
53	SPRING F
54	SPRING M
55	SPRING P
56	SCREWTP5 (P-tight) xL19 T27
57	HELPER
58	BAND
59	SCREW TP5(P-tight)xL16 T27
60	WASHER
65	BRAKE ASSY
66	• SCREW TP4(B-tight)xL12 T20
67	• GUARD
68	•SPRING
69	•SCREW
70	•SPACER
71	•SPACER
72	•WEIGHT
73	•SPRING
74	•SPRING
75	•WASHER
76	•NUT
77	•LEVER COMP.
78	•ROLLER
79	•ARM
80	•BAND
81	•ROLLER
82	•SPRING
83	• COVER
86	• PLATE(B)
88	NUT
91	LABEL
92	LABEL
93	LABEL, cover
94	LABEL, case
	*:
	Attach 6A KNOB to the 848C3031 A2(COVER)
	Attach 6B KNOB to the 574625101 (COVER, cyl)
	**:
	G3300 SN #914240 and up
	G3300E SN #914180 and up
