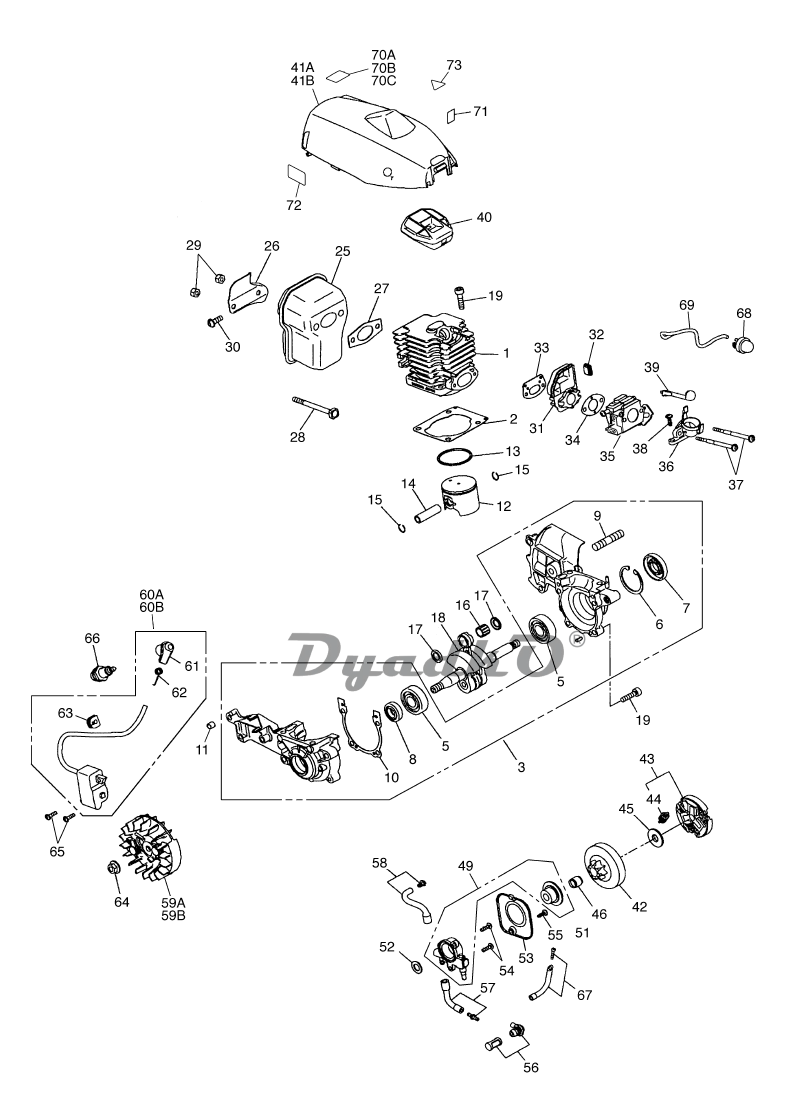

Схема ZENOAH G 3300, G 3300 EZ, G 3300 E/CE 1 POWER UNIT

1	CYLINDER
2	GASKET, cyl
3	CASE ASSY
5	• BEARING
6	• SNAPRING ø32
7	• SEAL
8	• SEAL
9	• STUD
10	• GASKET
11	SPACER
12	PISTON
13	RING
14	PIN
15	RING
16	BEARING
17	WASHER
18	SHAFT COMP.
19	BOLT TORX M5xL20 T27
25	MUFFLER
26	STAY
27	GASKET
28	BOLT
29	NUT
30	SCREWM5xL14 T27
31	INSULATOR
32	CAP
33	GASKET, in
34	GASKET,carb
35	CARBURETOR ASSY
36	MANIFOLD
37	BOLT M4x70
38	SCREWTP5(P-tight)xL16 T27
39	ROD CHOKE
40	CLEANER
41A	COVER
41B	COVER, cyl
42	DRUM3/8x6T ø60
43	CLUTCH
44	• SPRING
45	PLATE
46	BEARING
49	OIL PUMP SET
52	WASHER
53	COVER
54	SCREWM4xL14 T20
55	SCREWTP4(B-tight)xL12 T20
56	FILTER COMP.
57	PIPE IN COMP.
58	PIPE OUT COMP.
59A	ROTOR COMP. G3300
59B	ROTOR COMP. G3300EZ G3300E
60A	COIL ASSY G3300
60B	COIL ASSY G3300EZ G3300E
61	•CAP
62	• SPRING
63	• GROMMET
64	NUT M8xP1.0
65	SCREW M4xL14 T20
66	SPARK PLUG BPMR7A
67	PIPE COMP.
68	PUMP
69	PIPE
70A	LABEL, caution G3300
70B	LABEL, caution G3300EZ
70C	LABEL, caution G3300E
71	LABEL, choke
72	LABEL
73	LABEL, hot mark G3300E
	G3300E SN #914180 and up
	• OIL PUMP
	GASKET KIT (*: #2,10,27,33,34) OPTION
	**:
	Attach KNOB (848C3025C2) to the 41 A(COVER)
	Attach KNOB (574556401) to the 41B(COVER, cyl)
	***:
	G3300 SN #914240 and up
	• WORM
