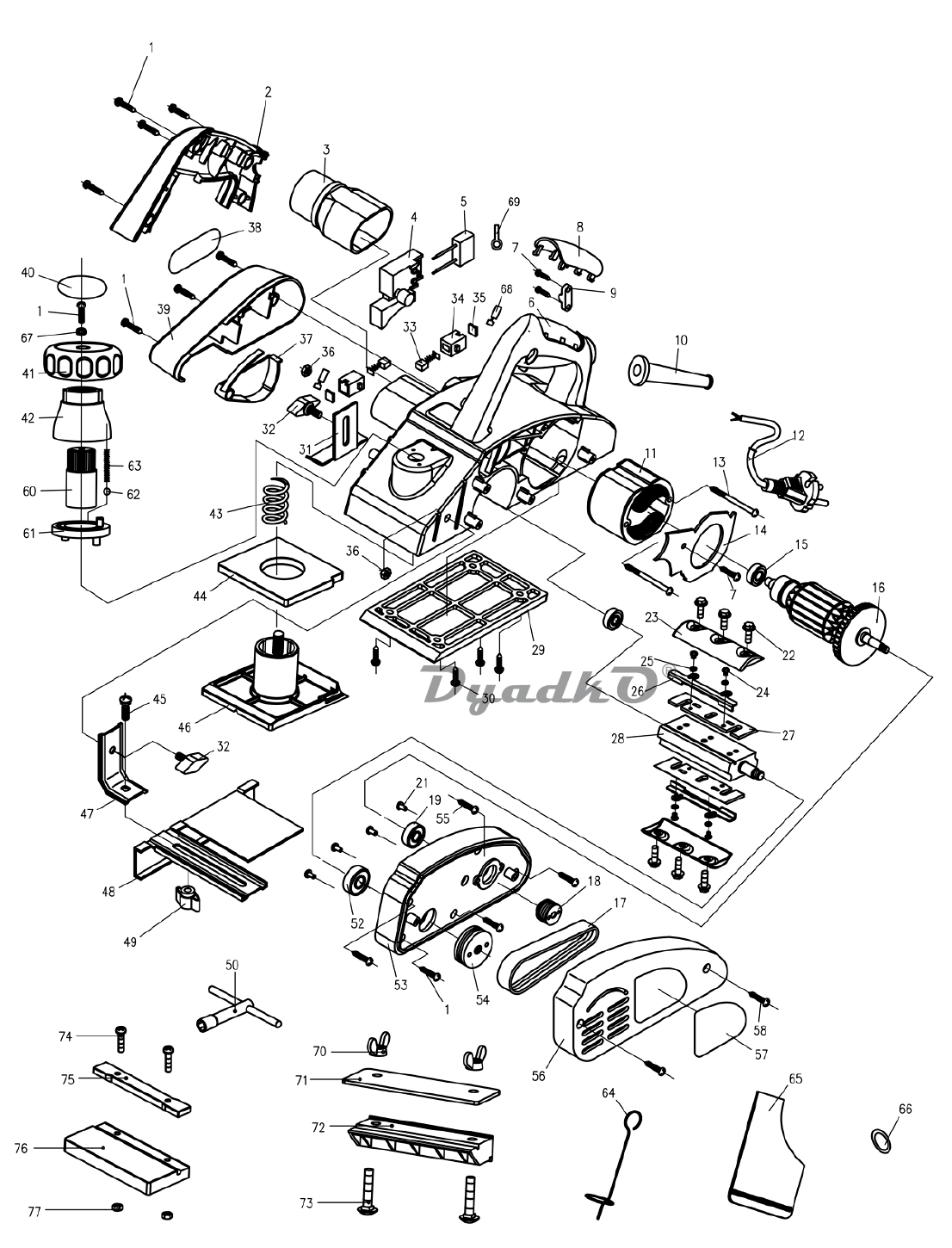

Схема (деталировка) рубанки DWT HB02-82 B . Подбор по модели, низкие цены в интернет-магазине Дядько.ру с доставкой по Москве и всей России

1	Screw\\ST4x16F
2	Handle cover Pos.2,6 supplied as a set
3	Dust adaptor
4	switch
5	Capacitor
6	Housing Pos.2,6 supplied as a set
7	Screw\\ST4x16F
8	Soft grip
9	Cable secure
10	Cable protector
11	Stator
12	Cord
13	Screw\\ST4x55C
14	Baffle
15	Ball bearing\\607.2RS
16	Armature
17	Belt
18	Pulley
19	Ball bearing\\608
21	screw\\M5x10
22	Screw\\M6x22
23	Blade clamp
24	Pan head screw\\M4x6
25	Spring washer\\φ4
26	Blade holder
27	Blade
28	Drum
29	Rear base
30	Screw\\ST5x14
31	Rabbeting depth stop
32	Wing screw
33	Carbon brush
34	Brush holder
35	Brush holder cap
36	Nut
37	Safeguard cover
38	Rating label
39	Rear cover
40	Depth label
41	Adjusting knob cover
42	Adjusting knob body
43	Spring
44	Sponge
45	screw\\M6X16
46	Front base
47	Guide bracket
48	Parallel guide
49	Wing nut
50	Socket wrench
52	ball bearing\\6000.2RS
53	Gear box cover
54	Pulley
55	Screw\\ST4x30C
56	Belt cover
57	Brand label
58	Screw\\M4x12
60	Adjusting nut
61	Stop ring
62	Steel ball
63	Spring
64	Steel wire frame
65	Dust bag
66	Otype ring
67	Washer
68	Tab
69	O-ring buckle
70	Wing nut
71	Sharpening clamp\\M6
72	Sharpening holder
73	Square neck bolt\\M6x30
74	Tapping screw\\M4x25
75	Stopper
76	Blade gauge
77	Hex. nut\\M4
