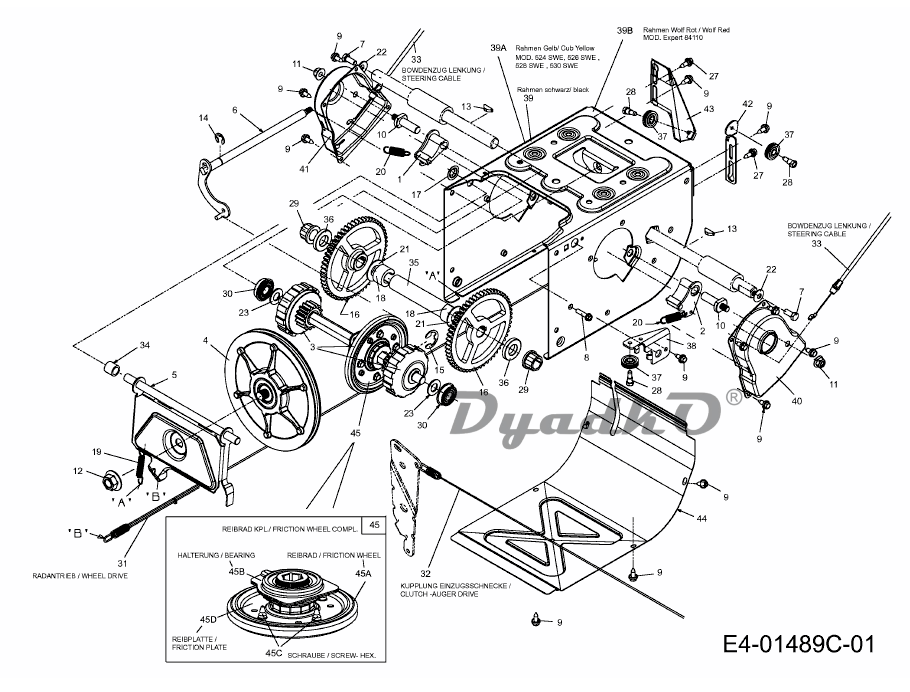

Схема YARD-MAN YM 61 M-W (31AW53LR643) 2011 Drive system

1 DOGG ASM:RH 618-04287
2 DOGG ASM:LH 618-04288
3 SHAFT ASM:HEX:FRICTION WHEEL 918-04322A
4 DISC ASM:WHL:FRICTION 656-04055
5 BRKT ASM:SUPT:FRCTN WHL 684-04154B-0637
6 SHFT ASM:ROD S/T SCHWEISSTEIL:684-04156A-Z
7 SCREW HHCS:5/16-24:.750GR5LOCK FINISH:MTD STD 701-01000
8 SCREW:TT:1/4-20:1.000:HXINDWSH FINISH:MTD STD 701-01002
9 SCR:TT:1/4-20 x.625:HXINDWH FINISH:MTD-SPEC-701-01002
10 SHAFT ACTUATOR DR 500 S/T 711-1268B
11 NUT:FLGLK:3/8-16:GRF:NYLON FINISH:SPEC-101616 912-04065
12 NUT:FLG:5/8-18 FINISH:MTD STD 701-01000
13 KEY-HI-PRO:3/16 x 3/4 DIA FINISH:PHOS & OIL 914-0126
14 E-RING:.500 DIA SHAFT FINISH:ÖL BENETZT
15 RING:RET:TYPE-E .875 DIA FINISH:PHOSPHATIERT / WELLE
16 GEAR-56 TOOTH 917-04210
17 NUT:SPD:.500 FINISH:SCHWARZ
18 SPACER: .76ID X .75 LG FINISH:KUNSTSTOFF SCHWARZ
19 SPR:EXTN:.380 OD x 2.500 LG FINISH:SPEC-701-01006 932-0264
20 TENSION SPRING .500 OD X 1.71
21 WASH:FLAT:.760x1.490X.060:HD FINISH:MTD STD 701-01001
22 WASH:BLVL:.340 x .872 x .060 FINISH:MTD STD 701-01001
23 WASH:FLAT:.58 x 1.125 x .08:HT FINISH:701-01001
27 SCR:SHLDR:.368x.113:TT:1/4-20 :1/4-20 / FINISH:701-01002
28 SCR:SHLDR:.340x.355xC:1/4-28 1/4-28 / FINISH: VERZINKT
29 BRG:HEX FLANGE x.75 ID FINISH:SCHWARZ 941-0245
30 SELF-ALIGNING BEARING .5625 X 1.375 X .4375
31 CBL:CLU:DR:WHL:44.955 LG 44.955 LG FINISH:SIEHE ZG.
32 CBL:CLU:DR:AUGER:47.48 LG 47.48 LG: FINISH:SIEHE ZG.
33 CABLE STEERING 746-0956B
34 SPCR:.508 ID x.750 OD x.68 FINISH:ÖL IMPRÄGNIERT
35 TUBE:SUPT:AXLE 750-04474
36 SPACER:AXLE HITZEBEHANDELT - GEHÄRTET
37 Guide pulley 756-0625
38 GUIDE BRACKET, FRONT 790-00096-0637
39 FRAME ASM:500 S/T POWDER BLACK 790-00183B-0637
39A FRAME ASM:500 S/T CUB YELLOW 790-00183B-4021
39B FRAME ASM:500 S/T WOLF RED 790-00183BWR
40 RET:SHF:DR/ACTR LH BLACK JACK BLACK JACK / 790-00185-0691
41 SHAFT RETAINER RH BLACK JACK / 790-00186-0691
42 BRKT:GDE:CBL:CLU:AUGER 790-00206A-0637
43 BRKT:GDE:CBL:CLU:DRIVE FINISH:MTD 701-01000
44 CVR:FRM:S/T 790-00316-0637
45 FRICTION WHEEL ASM 5.5 OD 684-04159
45A WHEEL:FRICTION:5.5 OD 935-04054
45B FRICTION WHEEL BEARING 618-0063A
45C SCR:AB:1/4-14:.625:HXINDWSH FINISH:MTD STD 701-01002
45D KNIFE GUIDE 790-00174
