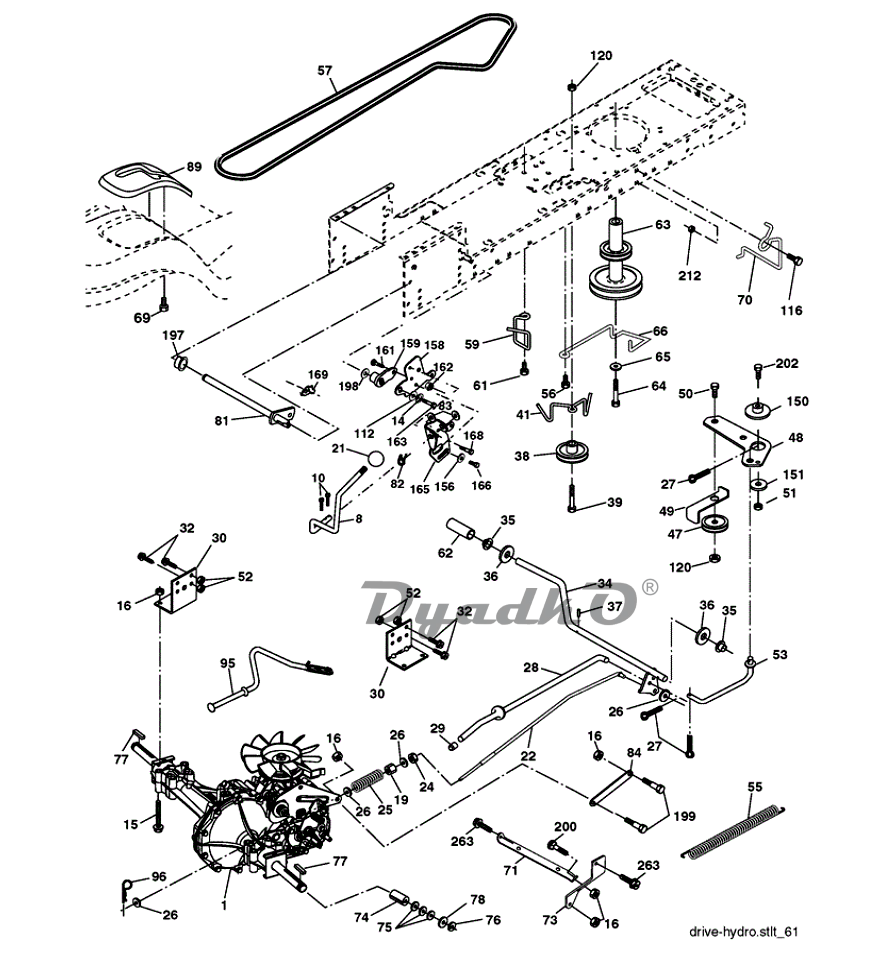

| 8 | ROD |
| 10 | SPLIT PIN |
| 14 | WASHER |
| 15 | SCREW |
| 16 | LOCK NUT |
| 19 | NUT |
| 21 | KNOB |
| 22 | ROD |
| 24 | NUT |
| 25 | SPRING |
| 26 | WASHER |
| 27 | SPLIT PIN |
| 28 | SHAFT |
| 29 | COVER |
| 30 | BRACKET |
| 32 | BOLT |
| 34 | SHAFT |
| 35 | BEARING |
| 36 | WASHER |
| 37 | PIN RETAINING SCREW |
| 38 | PULLEY |
| 39 | BOLT |
| 41 | BELT GUIDE |
| 47 | PULLEY |
| 48 | GUIDE |
| 49 | BELT GUIDE |
| 50 | BOLT |
| 51 | NUT |
| 52 | NUT |
| 53 | LINK |
| 55 | SPRING |
| 56 | SCREW |
| 57 | BELT |
| 59 | BELT GUIDE |
| 61 | SCREW |
| 62 | PEDAL RUBBER |
| 63 | PULLEY |
| 64 | BOLT |
| 65 | WASHER |
| 66 | TENSIONER |
| 69 | SCREW |
| 70 | BELT GUIDE |
| 71 | ROD |
| 73 | BRACKET |
| 74 | SPACER |
| 75 | WASHER |
| 76 | RETAINER RING |
| 77 | KEY |
| 78 | WASHER |
| 81 | SHAFT |
| 82 | SPRING |
| 83 | WASHER |
| 84 | LINK |
| 89 | BRACKET |
| 95 | CONTROL |
| 96 | RETAINING RING |
| 112 | WASHER |
| 116 | BOLT |
| 120 | NUT |
| 150 | SPACER |
| 151 | WASHER |
| 156 | WASHER |
| 158 | BRACKET |
| 159 | LEVER |
| 161 | BOLT |
| 162 | NUT |
| 163 | BOLT |
| 165 | BRACKET |
| 166 | SCREW |
| 168 | BOLT |
| 169 | RETAINER |
| 197 | SLEEVE |
| 198 | WASHER |
| 199 | SCREW |
| 200 | BOLT |
| 202 | BOLT |
| 212 | NUT |
| 250 | SCREW |
