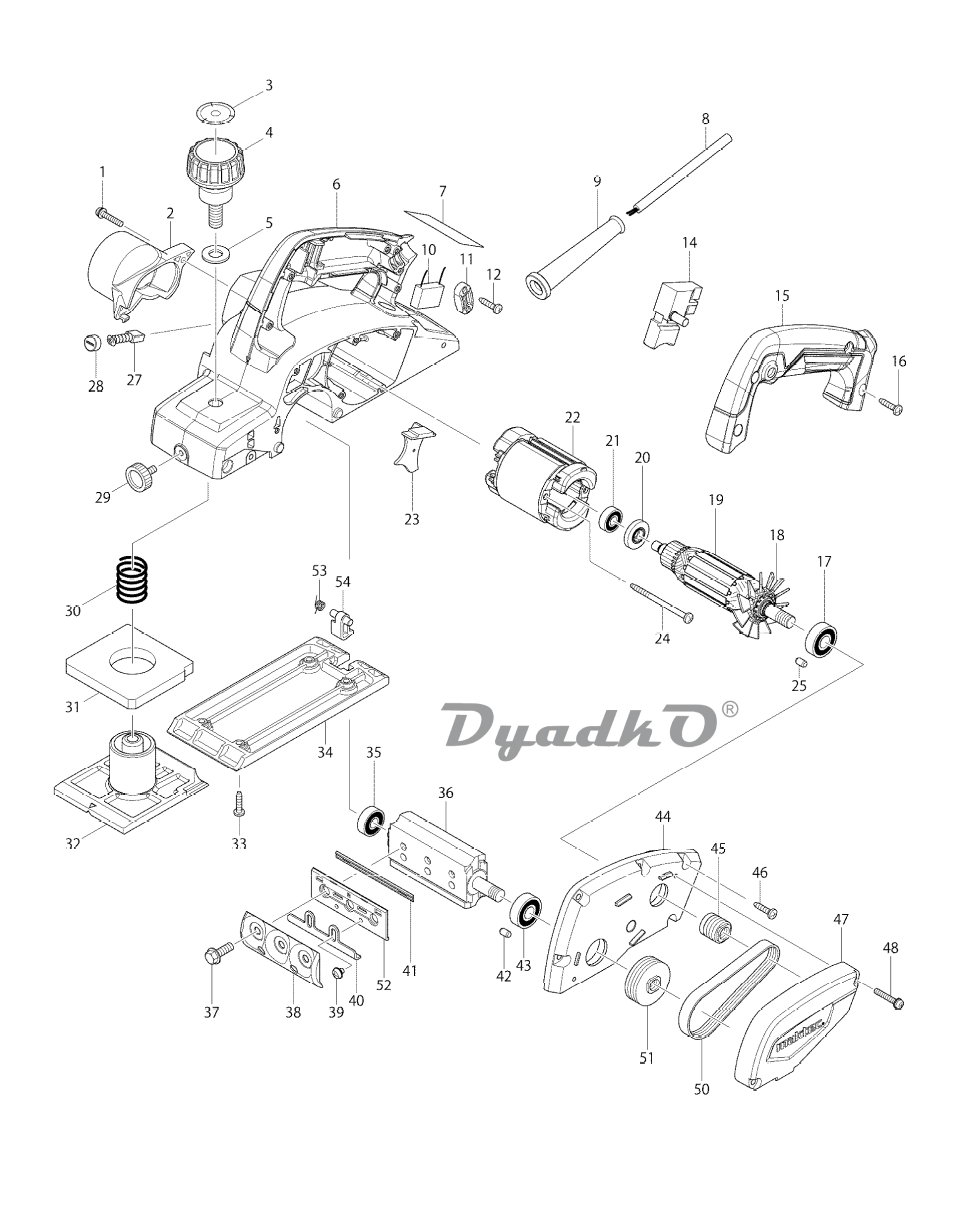

Схема MAKTEC MT191
1
PAN HEAD SCREW M4X22
2
NOZZLE
3
SCALE LABEL
4
KNOB 44
5
FLAT WASHER 10
6
MAIN FRAME COMPLETE
7
MT191 NAME PLATE
8
POWER SUPPLY CORD 1.0-2-2.0
9
CORD GUARD 8-85
10
NOISE SUPPRESSOR
11
STRAIN RELIEF
12
TAPPING SCREW 4X18
14
SWITCH FA1-6/1D-1
15
HANDLE COVER
16
TAPPING SCREW 4X18
17
BALL BEARING 6000ZZ
18
FAN 52
19
ARMATURE ASS\'Y 240V INC. 17,18,20,21
20
INSULATION WASHER
21
BALL BEARING 607ZZ
22
FIELD ASS\'Y 240V
23
ASSIST FAN GUIDE
24
TAPPING SCREW 4X60
25
RUBBER PIN 4
27
CARBON BRUSH CB-411
28
BRUSH HOLDER CAP 5-8
29
THUMB SCREW M5X10
30
COMPRESSION SPRING 18
31
RUBBER PACKING
32
FRONT BASE
33
TAPPING SCREW 4X18
34
BASE
35
BALL BEARING 608ZZ
36
DRUM
37
FLANGE HEX.BOLT M6X17
38
DRUM PLATE SET
39
PAN HEAD SCREW M4X5
40
ADJUST PLATE
41
T.C.T. MINI PLANER BLADE
42
RUBBER PIN 4
43
BALL BEARING 6000ZZ
44
BRACKET COMPLETE INC. 25,42
45
V PULLEY 4-20L
46
TAPPING SCREW 4X18
47
BELT COVER
48
PAN HEAD SCREW M4X25
50
POLY V-BELT 4-241
51
V PULLEY 4-37
52
SET PLATE F/MINI BLADE
53
TORSION SPRING 7
54
FOOT
A01
GUIDE RULE
A02
BLADE GAUGE ASS\'Y
A03
BOX WRENCH 9
