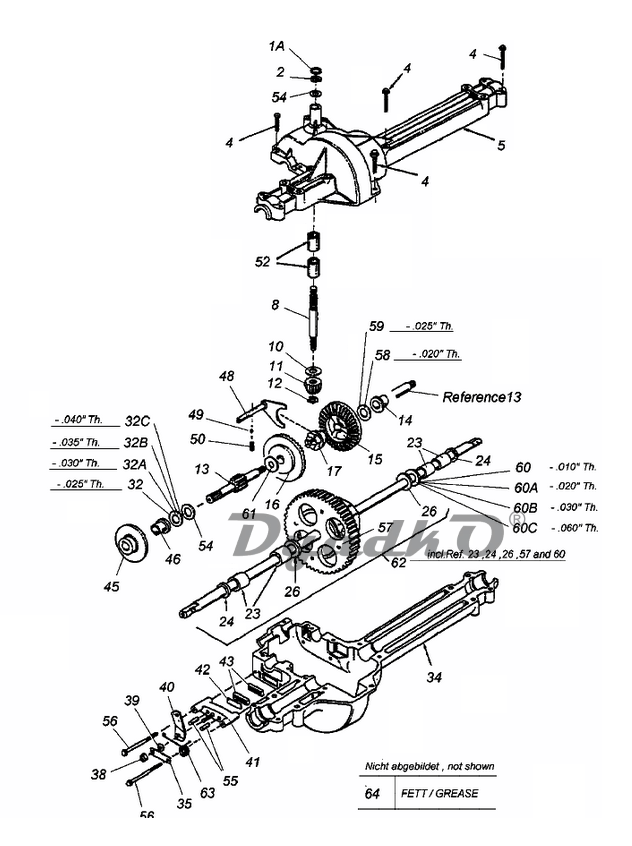

Схема MTD TA 4135 (2006) Gearbox

1 TRANSMISSION CPL. HINTERACHSE
1A Circlip FINISH:ZINC PHOSPHATE
2 RING:E-TYPE:.750 FINISH:PHOS & OIL/916-0231
4 SCREW:TT:1/4-20:1.625:HXINDWSH FINISH:MTD SPEC-701-01002
5 HOUSING HALF OBEN
8 INPUT SHAFT FINISH:SIEHE ZG.
10 WASH:THRST:.635 X 1.26 X .06 FINISH:SIEHE ZG.
11 PINION INPUT 14T FINISH:HITZEBEHANDELT
12 RETAINING:RING:EXT .437 FINISH:PHOSPATIERT 916-0108
13 DRIVE SHAFT - LH BRAKE 711-1016/911-1016
14 FLANGE BEARING FINISH:SIEHE ZG. 941-0336
15 PINION 42 T., SM. BORE HOLE 717-1362 / 917-1362 *
16 PINION 42 T., BIG BORE HOLE 717-1363/917-1363 *
17 HINGE PIN 718-0228
23 BRG:SLEEVE:.75 x 1.00 x 1.00 ÖLIMRÄGNIERT EXXON 941-0340
24 OIL SEAL:.75x1.00x.125 .75 x 1.00 x .125:FINISH STD
26 WASH:THRST:.760 x 1.500 x.060 FINISH:701-01001
32 WASHER:SHIM:.632x1.000x.025:HD FINISH:SIEHE ZG. 936-0495
32A WASH:FLAT:16x22x1 DIN 988 24.6273.68
32B WASHER:FL:.632X1.000X.035:HD FINISH:ZINC SIEHE ZG.
32C WASH:SHIM:.634x1.000x.040:HD MTD STD 701-01001 936-0337
34 LOWER HOUSING HALF UNTEN
35 BRACKET-ANTI ROTATION FINISH:GELB VERZINKT
38 NUT:HEXLK:5/16-24:GR2:NYLON FINISH:MTD STD 701-01000
39 WASH:THRST:.343 x .880 x .062 FINISH:701-01001
40 LEVER, PARK BRAKE ENGAGEMENT FINISH:PHOSPHATE & OIL
41 BRAKE YOKE FINISH:NONE 961-0198A
42 PLATE-PUCK FINISH:NONE 917-0682
43 BRAKE CORK FINISH:
45 BRAKE DISC FINISH:ÖL UND FETTFREI
46 FLANGE BEARING 941-0337
48 SHF ASM:DETENT FINISH: 911-0011
49 BALL:DETENT:.250 DIA FINISH: SIEHE ZG.
50 COMPRESSION SPRING FINISH: PHOS & OIL 932-0863
52 BEARING-NEEDLE:.625X.813X.495 FINISH:SIEHE ZG. 941-0335
54 WASHER:SHIM:.630x1.000x.020:HD FINISH:SIEHE ZG.
55 PIN:ACTR:BRAKE: .3125 FINISH:SIEHE ZG. 941-0343
56 SCREW:TT:1/4-20:2.375:HXINDWSH FINISH:MTD SPEC-701-01002
57 GEAR-DIFFERENTIAL 58 TEETH 717-1364 / E-TEIL-SET
58 WASHER:SHIM:.630x1.000x.020:HD FINISH:SIEHE ZG.
59 WASHER:SHIM:.632x1.000x.025:HD FINISH:SIEHE ZG. 936-0495
60 WASH:SHIM:.760x1.500x.010:HD FINISH:VERZINKT: 936-0492
60A WASHER:SHIM:.760x1.500x.020:HD FINISH:BLAU VERZINKT 936-0493
60B WASH:SHIM:.760x1.500X.030:HD FINISH:BLAU VERZINKT 936-0351
60C WASH:THRST:.760 x 1.500 x.060 FINISH:701-01001
61 WASH:FLAT:.70X1.125X.031 736-0519/936-0519
62 DIFFERENTIAL ASSEMBLY 918-04093A
63 SPR:TORSION .75 OD X3 COILS-LH FINISH:ZINC PHOS&OIL 932-0743
64 GREASE DURAPLEX EP00
