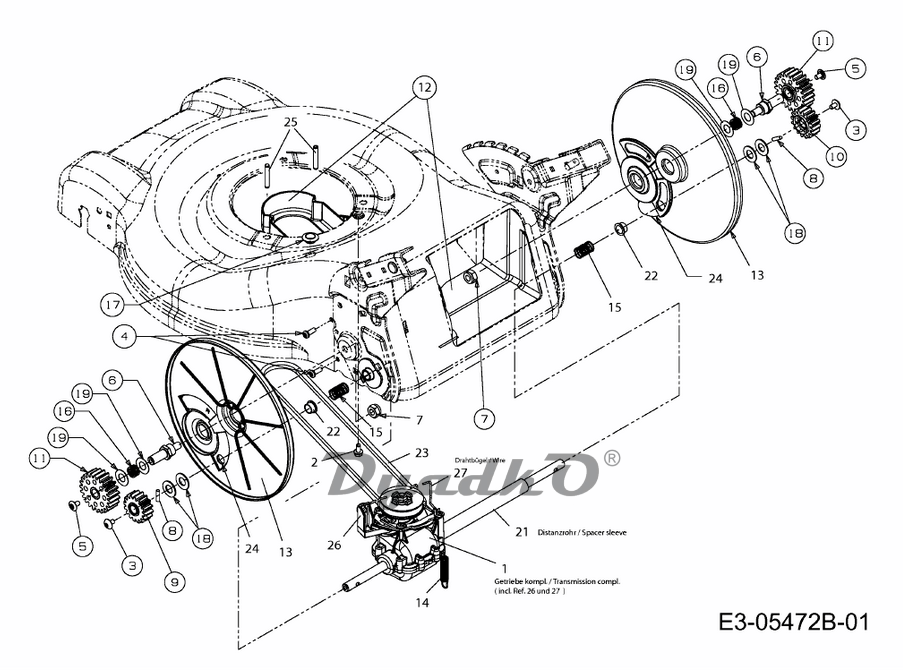

Схема (деталировка) газонокосилки бензиновые MTD SP 46 BHW (12A-J65C615) 2012 Gearbox, Rear baffle. Подбор по модели, низкие цены в интернет-магазине Дядько.ру с доставкой по Москве и всей России

1	TRANS ASM:J-DECK 618-04990
2	SCR:M6x1:12 MM:DIN 7500 DIN 7500 MTD SPEC-100015
3	SCR:1/4-20 x.390:PANTRXI FINISH:MTD SPEC-100015
4	SCR:HI:M6-.37:16:PANTRXI FINISH:MTD SPEC-100015
5	SCR:1/4-20 x.390:PANTRXI FINISH:MTD SPEC-100015
6	SHFT:.500 DIA:M10 THRD FINISH:PHOS AND OIL SIEHE ZG.
7	NUT:HEX:M10x1.25 DIN 985 FINISH:MTD SPEC-100015
8	DOWEL PIN:H.G.PROD. 3/16 x 3/4 FINISH:SIEHE ZG.
9	GEAR:SPUR:16T:BRNZ BUSH:LH 717-04577A
10	GEAR:SPUR:16T:BRNZ BUSH:RH 717-04578A
11	GEAR:SPUR:23T 717-04678
12	BFL:RR:46CM:SP FINISH:FARBE SCHWARZ
13	COVER-DUST 12\" HIGH WHEEL SP 731-06145C
14	SPRING:EXTN:.429 OD x 2.515 FINISH:701-01000
15	SPR:COMPRS:0.63 x 1.00 FINISH:MTD-SPEC 101616
16	SPR:WAVE FINISH:ÖL GEDIPPT
17	GROM:.52IDX.66ODX.31 AUßEN Ò 20mm FINISH:SCHWARZ
18	WASHER:FL:.510 X 1.000 X .060 FINISH:MTD-SPEC 101616
19	WASH:THRST:.508x1.000x.020 FINISH:SIEHE ZG. 936-0369
21	SPCR:SLEV:.550 ID x 7.230 .550ID x 7.230:PLASTIC SCHWARZ
22	SPCR:0.5IDX0.58ODX.35LG .5IDX0.58ODX.35LG
23	BELT:V TYP:3L x 29.41 POLY POLY
24	PLT:SEAL:DUST CVR:12\" HIGH WHL 12\" HIGH WHEEL:BLACK OXYDE
25	PIN:3/16\" X\"1.25\" LG FINISH:OIL
26	LEVER CLUTCH 731-05100
27	WIRE:TRANS:EURO 732-04509
