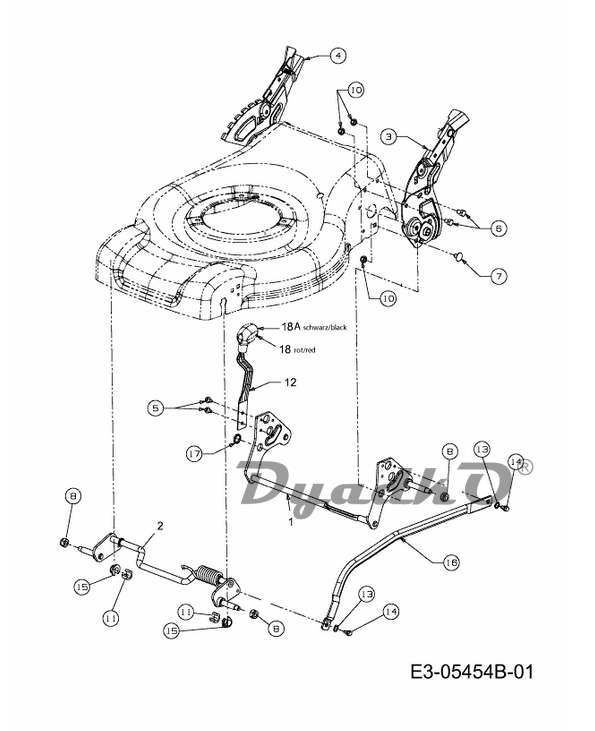

Схема (деталировка) газонокосилки бензиновые MTD SP 46 BHW (12A-J65C615) 2012 Cutting hight adjustment. Подбор по модели, низкие цены в интернет-магазине Дядько.ру с доставкой по Москве и всей России

1	BRKT ASM:RR:J-DECK:HIGH WHL MTD BLACK
2	BRKT ASM:FRONT:J-DECK:HIGH WHL SCHWARZ
3	BRKT ASM:HNDL:LH HIGH WHL:46cm PRESSTEIL
4	BRKT ASM:HNDL:RH:HW:J-DECK PRESSTEIL
5	SCREW:TT:1/4-20:0.375:HXINDWSH FINISH:MTD SPEC-100016
6	SCREW:HEX:M8X12 DIN 933-8.8 MTD SPEC-100015 21.1441.67
7	BOLT:CRG:M8-1.25x12 4KT-ANSATZ KURZ 000.02.578
8	NUT:HEX:M10x1.25 DIN 985 FINISH:MTD SPEC-100015
10	NUT:HEXLK:M8-1.25 NYLON DIN985 FINISH:SPEC-100015 24.1426.18
11	AXLE CLAMP RING 731-05470
12	SPR:LEVER:HIGH WHEEL 732-04480A
13	WASH:WAVE:.385IDX.598 OD FINISH:SPEC 100016
14	SCR:SHLDR:1/4-20:0.50:HXINDWSH FINISH:MTD STD SPEC-100015
15	BRG:FLG:HEX SPLIT .500 ID 741-04136B SCHWARZ
16	BRKT:CROSS:CHA:HI WHL:19\"/J SCHWARZ
17	SPCR:.690X.870X.150 750-05061
18	KNOB HEIGHT ADJUSTMENT LEVER FINISH:VERKEHRSROT 788-0719
18A	KNOB HEIGHT ADJUSTMENT LEVER FINISH:SCHWARZ 788-0637
