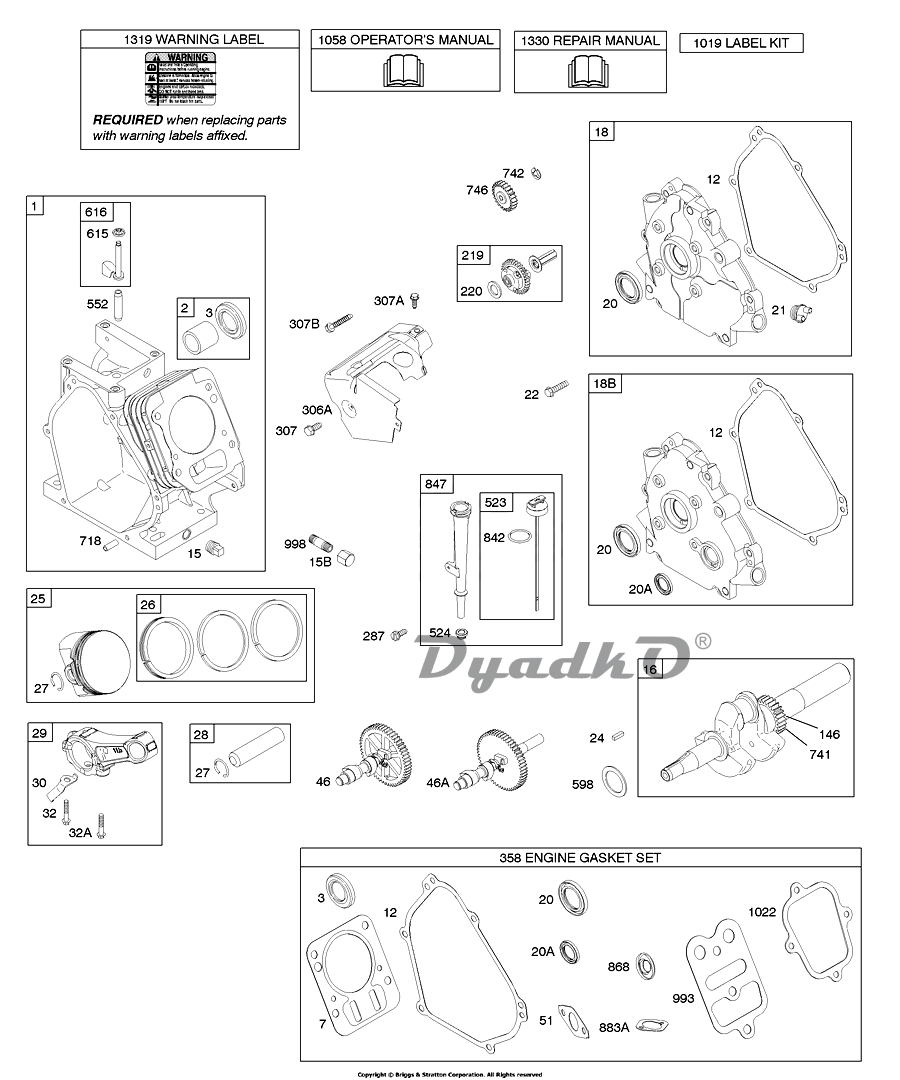

Схема BRIGGS&STRATTON 12R113-0696-E1 Camshaft, Crankcase Cover, Crankshaft, Cylinder, Lubrication, Piston Group

1 Cylinder Assembly Description
2 Kit-Bushing/Seal (Magneto Side)
3 SEAL, Oil (Magneto Side)
7 Gasket-Cylinder Head
12 Gasket-Crankcase
15 PLUG, Oil Drain
15B Plug-Oil Drain
16 Crankshaft
18 Cover-Crankcase
20 Seal-Oil (PTO Side)
20A Seal-Oil
21 Cap-Oil Fill (PTO Side)
22 Screw (Crankcase Cover/Sump)
24 KEY, Flywheel
25 Piston Assembly (Standard)
25 Piston Assembly (.020 Oversize)
26 Ring Set (.020 Oversize)
26 Ring Set (Standard)
27 Lock-Piston Pin
28 Pin-Piston
29 Rod-Connecting
30 Dipper-Connecting Rod
32 Screw (Connecting Rod)
32A Screw (Connecting Rod)
46 Camshaft
46A Camshaft
51 Gasket-Intake (2 Required)
146 KEY, Woodruff
219 GEAR, Governor
220 Washer (Governor Gear)
287 Screw (Dipstick Tube)
306A Shield-Cylinder
307 Screw (Cylinder Shield)
307A Screw (Cylinder Shield)
307B SCREW (Cylinder Shield)
358 Gasket Set-Engine
523 Dipstick Used Before Code Date 10022200
523 Dipstick Used After Code Date 10022100
524 Seal-Dipstick Tube
552 Bushing-Governor Crank shaft
598 Shim-End Play (Crankshaft or Cam Bearing)
615 Retainer-Govemor Shaft
616 Crank-Govemor
718 PIN, Locating
741 Gear-Timing
742 RETAINER, E Ring
746 Gear-Idler
842 SEAL, O-Ring (Dipstick Tube)
847 Dipstick/Tube Assembly Used After Code Date 10022100
847 Dipstick/Tube Assembly Used Before Code Date 10022200
868 Seal-Valve
883A Gasket-Exhaust
993 Gasket-Cylinder Head Plate
998 Pipe-Oil (4\" Long)
998 Pipe-Oil (2 1/2\" Long)
1019 Kit-Label
1022 Gasket-Rocker Cover
1058 Operator\'s Manual
1319 LABEL, Warning
1330 Repaii- Manual
