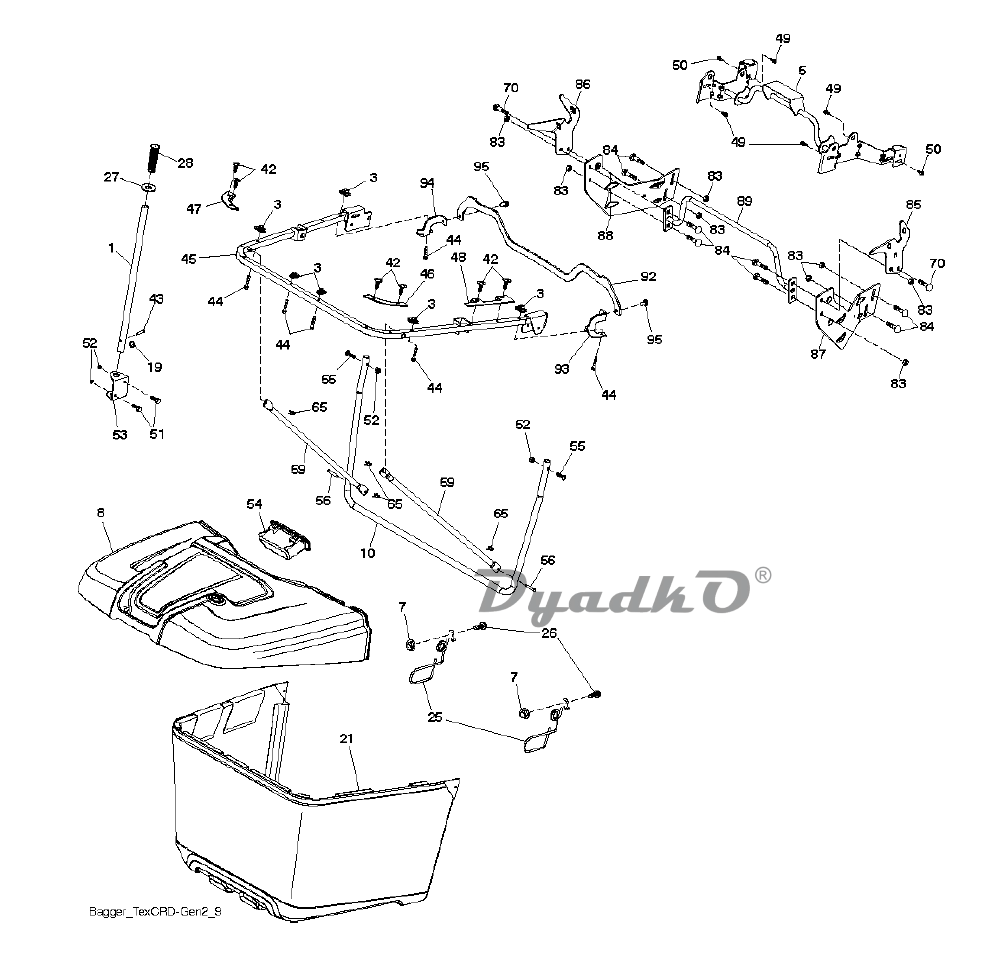

| 1 | TUBE |
| 3 | NUT |
| 5 | FRAME |
| 7 | NUT |
| 8 | COVER |
| 10 | FRAME |
| 19 | PIN |
| 21 | BAG |
| 25 | LATCH |
| 26 | SCREW |
| 27 | GROMMET |
| 28 | HANDLE |
| 42 | CLIP |
| 43 | RIVET |
| 44 | SCREW |
| 45 | FRAME |
| 46 | CONNECTOR |
| 47 | CONNECTOR |
| 48 | BAFFLE |
| 49 | BOLT |
| 50 | BOLT |
| 51 | BOLT |
| 52 | LOCK NUT |
| 53 | BRACKET |
| 54 | FRAME |
| 55 | RHSNB 5/16-18 X 1-1/2 GR 5 ZD |
| 56 | CLEVIS PIN |
| 59 | TUBE |
| 65 | RETAINING RING |
| 70 | SCREW |
| 83 | NUT |
| 84 | BOLT |
| 85 | BRACKET |
| 86 | BRACKET |
| 87 | BRACKET |
| 88 | BRACKET |
| 89 | TUBE ASSY |
| 92 | BRACKET |
| 93 | BRACKET |
| 94 | BRACKET |
| 95 | SCREW |
