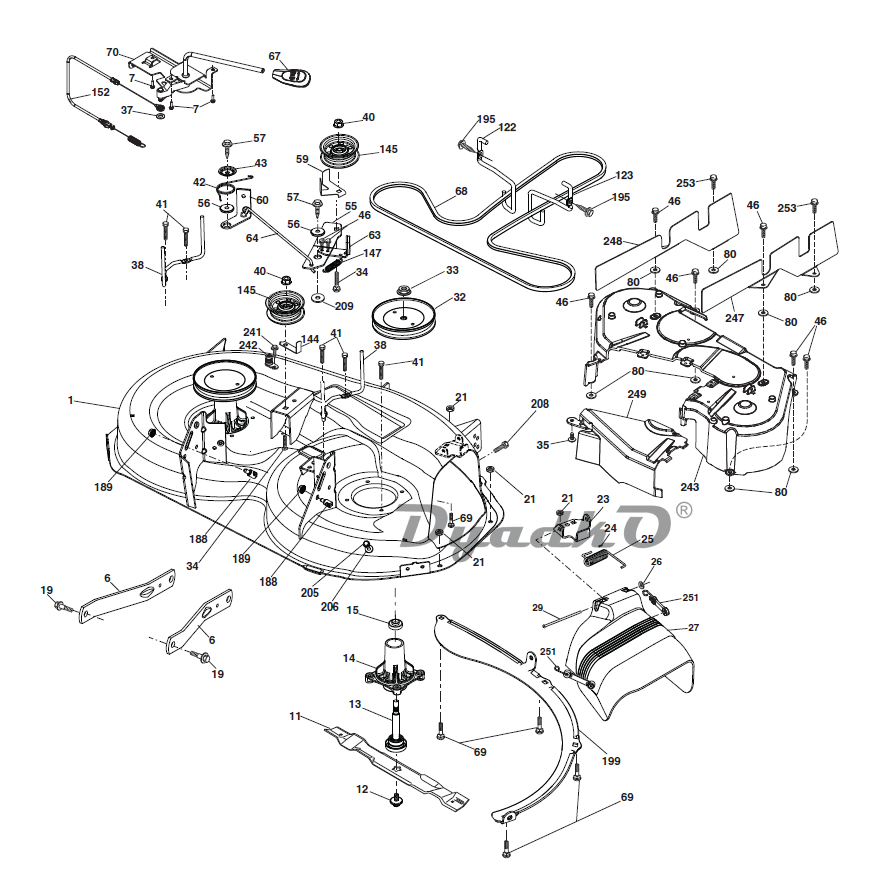

Схема (деталировка) тракторы садовые и райдеры MCCULLOCH M110-97T CLASSIC (960410406) MOWER DECK. Подбор по модели, низкие цены в интернет-магазине Дядько.ру с доставкой по Москве и всей России

1	Mower Housing
6	Arm Suspension
7	Screw #10 x 0.750 BOS Thread
11	Blade 38\" 2N1 Premium
12	Screw 7/16-20 x 1 Hx
13	Shaft Assembly, Mandrel
14	Housing, Mandrel
15	Bearing, Mandrel
19	Bolt, Shoulder
21	Nut, Crownlock 5/16-18 unc
23	Bracket, Deflector
24	Cap, Sleeve
25	Spring, Torsion, Deflector
26	Nut, Push
27	Shield, Deflector
29	Rod, Hinge
32	Pulley, Mandrel
33	Nut, Toplock, Flanged
34	Bolt Carr. Sh. 3/8-16 x 1-1/2 Gr. 5
35	Fastener
37	Washer
38	Keeper Belt LH Mandrel
40	Nut, Lock Flg. 3/8-16 unc
41	Bolt Hex Wshr
42	Spring Torsion Brake
43	Spring Torsion Retainer
46	Screw 1/4 - 20 x 5/8
55	Arm, Idler
56	Spacer, Retainer
57	Screw 3/8-16 x 1
59	Guard, Tuv. Idler
60	Arm Brake Mower
63	Arm Brake Mower
64	Link Brake
67	Handle Clutch Cable
68	V-Belt
69	Bolt
70	Clutch Asm. Manual
80	Palnut 1/4
122	Keeper Belt Engine LH
123	Keeper Belt Engine RH
144	Keeper Belt
145	Pulley Idler
147	Spring Return
152	Manual Clutch Cable
188	Stud Fastener
189	Nut Lock Hex Flange
195	Screw 3/8-16 x 3/4
199	Baffle Vortex
205	Screw 1/4-20 x 1
206	Washer 9/32 x 7/8 x 16 Ga.
208	Screw THRDL
209	Washer 13/32 x 2 x 10
241	Screw TT #10-32.5 3/8
242	Port Washout
243	Cover Deck 38
247	Shield Deck LH
248	Shield Deck RH
249	Cover Cable Clutch
251	Kit Bungee
253	Rivet
- -	MandrelAssembly (Includeshousing (key# 14), shaft assembly (key# 13), and bearing (key# 15) only - pulley/ nut/washer and blade bolt/washers not included.)
- -	Replacement Mower, Complete
