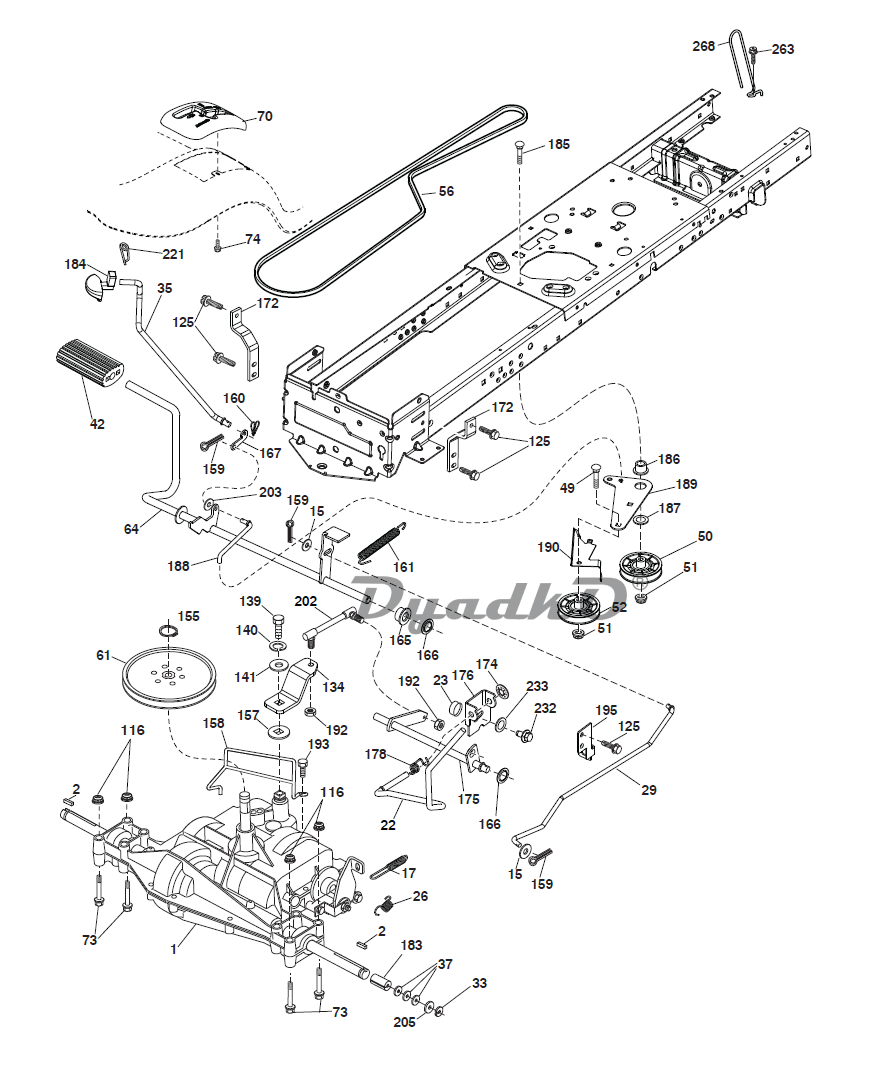

Схема (деталировка) тракторы садовые и райдеры MCCULLOCH M110-97T CLASSIC (960410406) DRIVE. Подбор по модели, низкие цены в интернет-магазине Дядько.ру с доставкой по Москве и всей России

1	Transaxle, Peerless 206-565 (197941) (Order parts from transaxle manufacturer.)
2	Key Square
15	Washer 13/32 x 13/16 x 16 Ga.
17	Spring, Brake
22	Rod Shift
23	Knob
26	Spring Brake Return
29	Rod, Brake
33	Ring E
35	Rod, Brake, Park
37	Washer 25/32 x 1-1/4 x 16 Ga.
42	Cover, Foot Pedal
49	Bolt
50	Pulley Idler Flat
51	Lock Nut 3/8-16
52	Idler V-Groove
56	V-Belt, Drive
61	Pulley Transaxle
64	Shaft Asm. Pedal Brake Control
70	Console Shift
73	Bolt Hex Flgd 5/16-18 x 2-1/2 Gr. 5
74	Screw Hex Wsh 1/4 x 1/2
116	Nut Lock Hex Flange 5/16-18
125	Screw 5/16-18 x 3/4
134	Asm Shift
139	Bolt 1/4-28 unf Gr. 8 w/Patch
140	Washer Lock Hvy Helical 1/4
141	Washer 9/32 x 3/4 x 10 Ga.
155	Ring Retainer
157	Washer Plate Shift
158	Belt Keeper
159	Pin Cotter 1/8 x 3/4
160	Retainer Clip
161	Spring, Return, Clutch
165	Busing Shaft Brake Hand Control
166	Nut Push .625
167	Latch Brake Parking
172	Strap Torque LH
174	Nut Push
175	Shaft Asm. Shift
176	Arm Clevis Rod Shift
178	Spring Shift
183	Spacer Axle
184	Handle Parking Brake
185	Bolt 3/8-16 unc x 2-3/4 Gr. 5
186	Spacer Retainer
187	Washer
188	Link Clutch Ground Drive, Long
189	Bellcrank Ground Drive
190	Keeper Bellcrank Ground Drive
192	Nut Lock Center 1/4-28 Fnthd
193	Screw 5/16-18 x 3/4
195	Bracket Brake Rod
202	Link Transaxle
203	Washer 11/32 x 11/16 x 16 Ga.
205	Washer 25/32 x 1-5/8 16 Ga.
221	Retainer Spring Clip Handle
232	Bolt Hex 7/16-14 x 1 Gr. 5
233	Washer Serrated
263	Screw Hexwsh THDR 3/8-16 x 3/4
268	Guard Muffler
