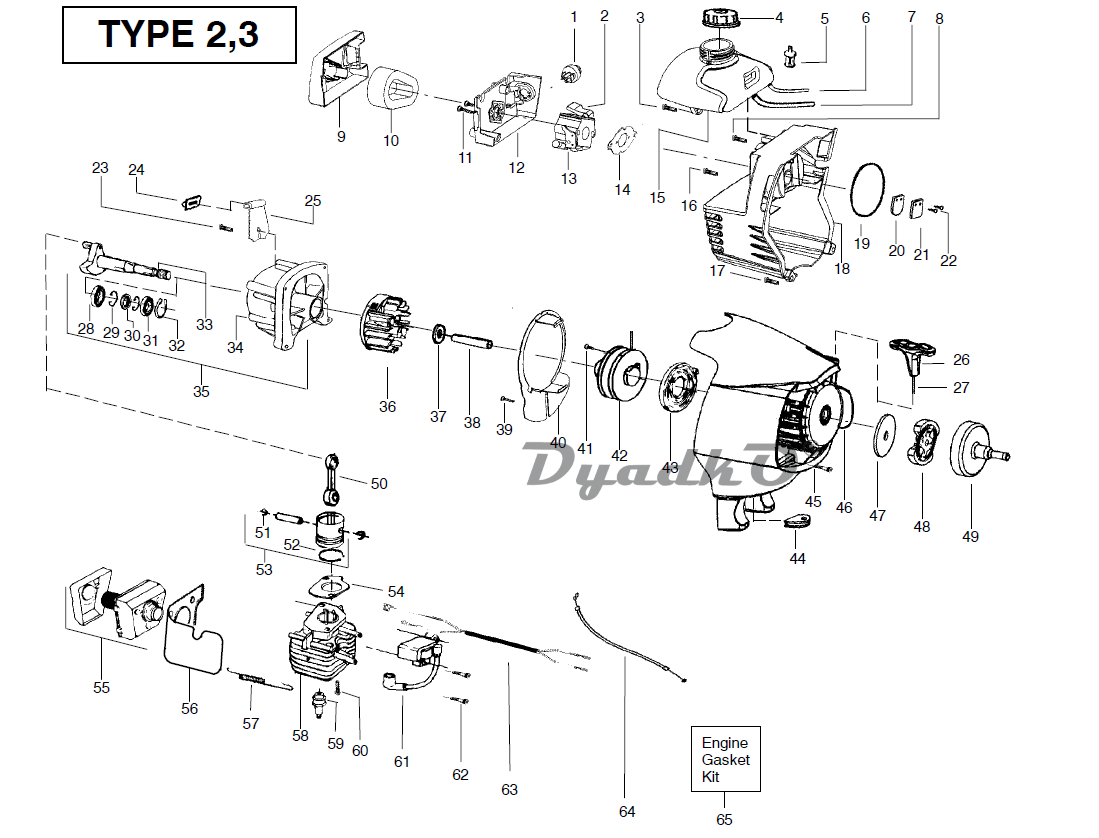

Схема MCCULLOCH TM 281 Двигатель (Тип 2,3)

1.	Bulb-purge
2.	Kit-Choke Lever
3.	Screw-tank
4.	Assy-Fuel cap
5.	Assy-Fuel pick-up
6.	Kit-Fuel line
7.	Kit-Fuel/Purge line
8.	Screw
9.	Cover-Air box
10.	Filter-Air
11.	Screw-carb.
12.	Box-Air
13.	Kit-Assy-carb. (WT-628)
14.	Gasket-Carb. (kit)
15.	Assy-Fuel tank
16.	Screw-crankcase
17.	Screw-shrd to f/hsg.
18.	Assy-Shroud
19.	O-Ring-c/case (kit)
20.	Valve-reed
21.	Stop-reed
22.	Screw-reed valve
23.	Screw-tank retainer
24.	Isolator-fuel tank
25.	Ret.-fuel tank
26.	Handle-starter
27.	Kit-Rope
28.	Bearing-inner
29.	Retainer
30.	Seal
31.	Bearing-outer
32.	Retainer-crankshaft
33.	Assy-crankshaft
34.	Assy-crankcase (Incl. 28,29,30,31)
35.	Assy-c’case/c’shaft (incl. 32,33,34)
36.	Assy-Flywheel
37.	Washer
38.	Spacer
39.	Screw-baffle
40.	Plate-baffle
41.	Screw-rope
42.	Kit-pulley (incl. #41)
43.	Spring-starter
44.	Grommet
45.	Screw-F/hsq
46.	Housing-Fan w/eyelet
47.	Washer-Clutch
48.	Assy.-Clutch
49.	Assy-Drum w/adapter
50.	Assy-Connecting rod
51.	Retainer-piston pin
52.	Ring-Piston
53.	Kit-Piston (Incl. 51,52)
54.	Gasket-Cylinder (kit)
55.	Kit-Muffler
56.	Heat shield
57.	Sprinq-muffler
58.	Cylinder
59.	Spark plug (RCJ-6Y)
60.	Bolt-Cylinder
61.	Module-Ignition
62.	Screw-module
63.	Assy-Rear wire
64.	Assy-Throttle Cable
65.	Kit-Gasket (incl. 14,19,54)
