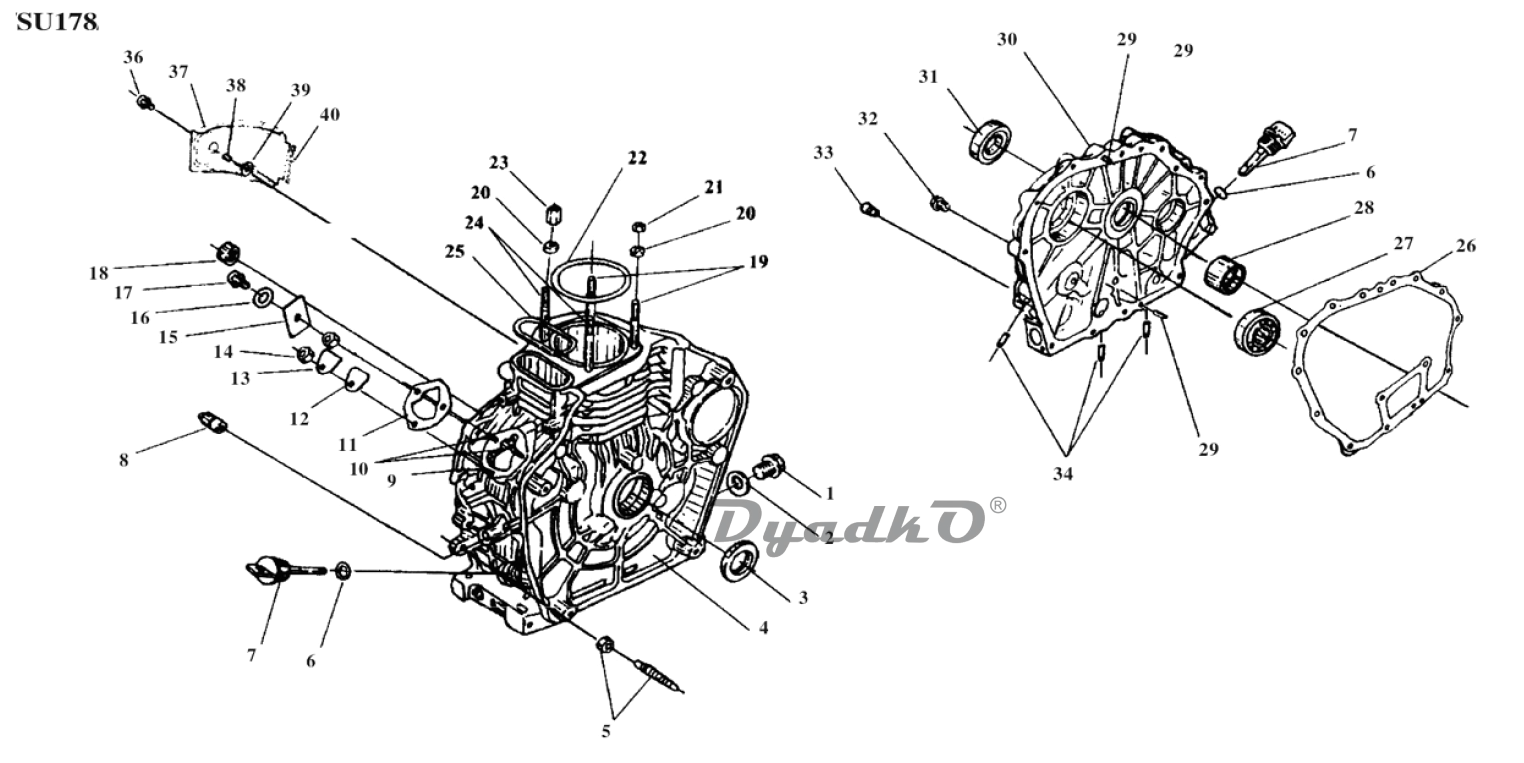

Схема CHAMPION (IGP) DTP80E Цилиндр

1	Drain Plug
2	Oil Piug Seal Assem
3	Oil Seal SG30458 / SG355010
4	Cylinder Block
5	Fuel Controller Assem
6	0-Ring24*2.4
7	Oil Filler Cap
8	Needle Bearing7941/8
9	Stud Plate(Short)
10	Stud Plate(Long)
11	Riel Injection Pump Gasket
12	Seal Gasket
13	Seal Plate
14	Nut M6
15	Retainer
16	Washer8
17	Bolt M8*12
18	Needle Bearing37941 /15
19	Cylinder Head Stud(Short)
20	Cylinder Head Washer
21	Cylinder Head Nut(Short)
22	Cylinder Head Gasket
23	Cylinder Head Nut(Long)
24	Cylinder Head Stud(Long)
25	Ring
26	Crank Case Gasket
27	Ball Bearina D205 / D206 / D207
28	Main Bearing
29	Pin8*12
30	Crank Case Cover
31	Oil Seal SG254210 / SG304510 / SG355010
32	Bolt M8*33.5
33	Plug
34	Plunger8
35	BoltM6*25
36	Bolt M6* 14
37	Air Gover
38	Air Gover Collar
39	Shock Absorber
40	Shock Absorber Seat
