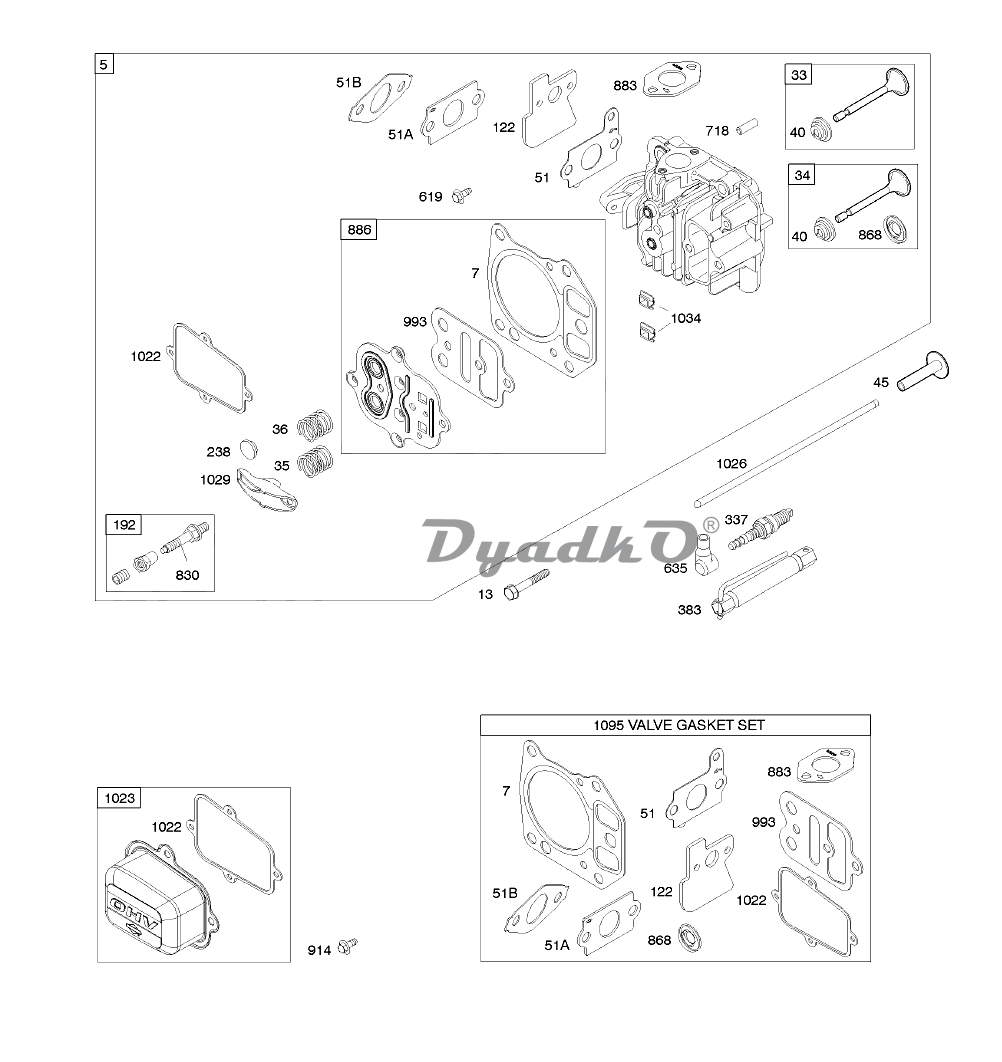

Схема (деталировка) бензиновые двигатели с вертикальным валом BRIGGS&STRATTON 12H602-0486-E1 Cylinder Head. Подбор по модели, низкие цены в интернет-магазине Дядько.ру с доставкой по Москве и всей России

5	Head-Cylinder-Used Before Code Date 05110200
5	Head-Cylinder-Used After Code Date 05110100
7	Gasket-Cylinder Head
13	Screw-(Cylinder Head)
33	Valve-Exhaust
34	Valve-Intake
35	Spring-Valve-(Intake)
36	Spring-Valve-(Exhaust)
40	Retainer-Valve
45	TAPPET, Valve
51	Gasket-Intake
51A	Gasket-Intake
51B	Gasket-Intake
122	Spacer-Carburetor
192	Adjuster-Rocker Arm
238	Cap-Valve
337	PLUG, Spark-(EMS)
337	Plug-Spark-(Resistor)
383	Wrench-Spark Plug
619	SCREW-(Cylinder Head Plate)
635	BOOT, Spark Plug
718	PIN, Locating
830	Stud-Rocker Arm
868	Seal-Valve
883	Gasket-Exhaust
886	Gasket Kit-Cylinder Head/Plate
914	SCREW-(Rocker Cover)
993	Gasket-Cylinder Head Plate
1022	Gasket-Rocker Cover
1023	Cover-Rocker
1026	Rod-Push
1029	Arm-Rocker
1034	Guide-Push Rod
1095	Gasket Set-Valve
	Replacement Engine
	Replacement Short Block
	Top No-Load Speed: 2750-Trim: ALL
	Service Note: If the replacement engine supersedes to or is a Model 120000 series engine, refer to the illustrations located after the conversion data for this model series. the overall dimensions that differ, are shown in the illustrations.
	Service Note: If after making a visual inspection and it is determined the Model
	120000 series engine cannot be used because of equipment interference, the original engine should be repaired with individual parts.
