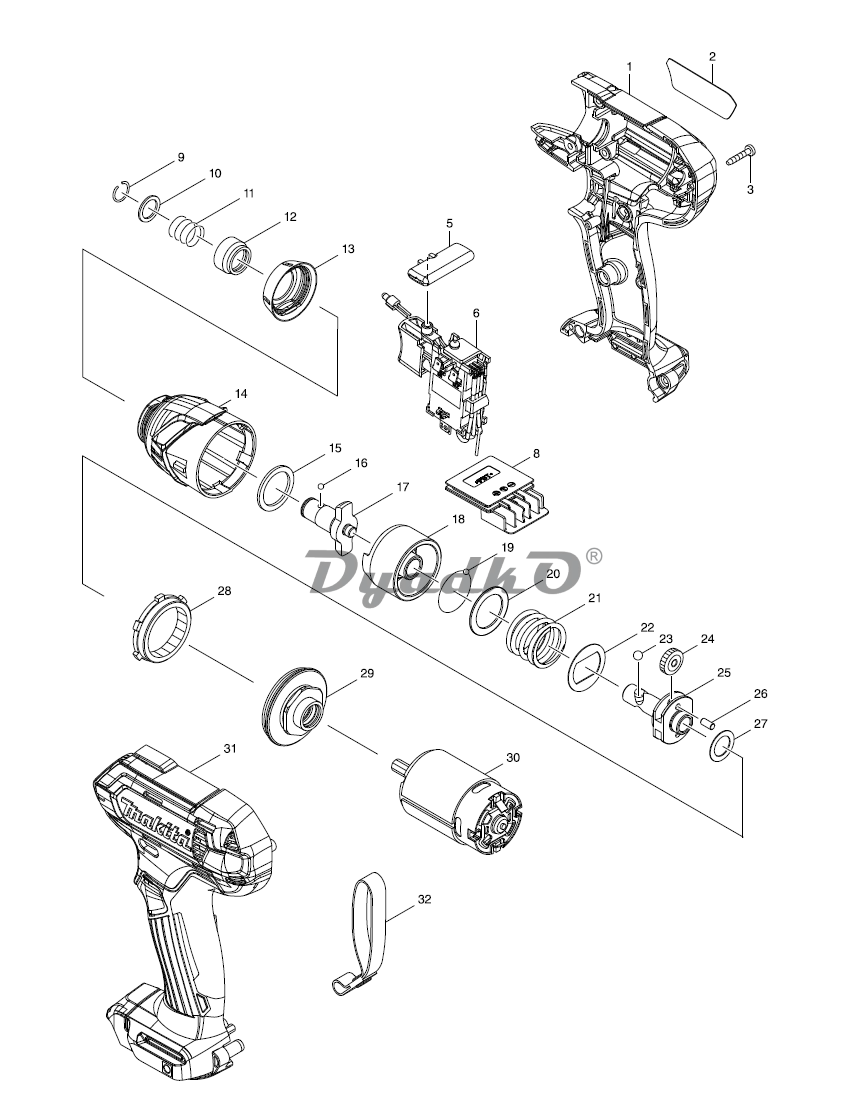

| 1 | HOUSING SET |
| 2 | TD110D NAME PLATE |
| 3 | TAPPING SCREW 3X16 |
| 5 | F/R CHANGE LEVER |
| 6 | SWITCH UNIT |
| 8 | TERMINAL |
| 9 | RING SPRING 10 |
| 10 | FLAT WASHER 11 |
| 11 | COMPRESSION SPRING 13 |
| 12 | BIT SLEEVE |
| 13 | BUMPER |
| 14 | HAMMER CASE COMPLETE |
| 15 | NYLON WASHER 20 |
| 16 | STEEL BALL 3 |
| 17 | ANVIL M |
| 18 | HAMMER |
| 19 | STEEL BALL 3 |
| 20 | FLAT WASHER 20 |
| 21 | COMPRESSION SPRING 21 |
| 22 | WASHER 21 |
| 23 | STEEL BALL 4.8 |
| 24 | SPUR GEAR 17 |
| 25 | SPINDLE |
| 26 | PIN 3.5 |
| 27 | FLAT WASHER 12 |
| 28 | INTERNAL GEAR 43 |
| 29 | BEARING BOX COMPLETE |
| 30 | DC MOTOR |
| 31 | HOUSING SET |
| 33 | LINE FILTER |
| A03 | BIT 2-50 |
| C10 | LATCH |
| C10 | LED CIRCUIT |
| D10 | INC. 31 |
| C10 | HEX. LOCKING NUT M4-7 |
| C10 | HEX. LOCKING NUT M4-7 |
| D10 | INC. 1 |
| A01 | TRUSS HEAD SCREW M4X12 |
| A02 | HOOK |
| D10 | COMPO-PARTS |
| D10 | COMPO-PARTS |
| C10 | LATCH |
| C20 | LINE FILTER UNIT |
| A07B | PLASTIC CARRYING CASE |
| A06B | BATTERY BL1020B SET |
| A04B | BATTERY COVER |
| A05B | DC 10WC BATTERY CHARGER |
| A05C | DC 10WC BATTERY CHARGER |
| A07C | PLASTIC CARRYING CASE |
| A04C | BATTERY COVER |
| A06C | BATTERY BL1040B SET |
