120212-0560-B8

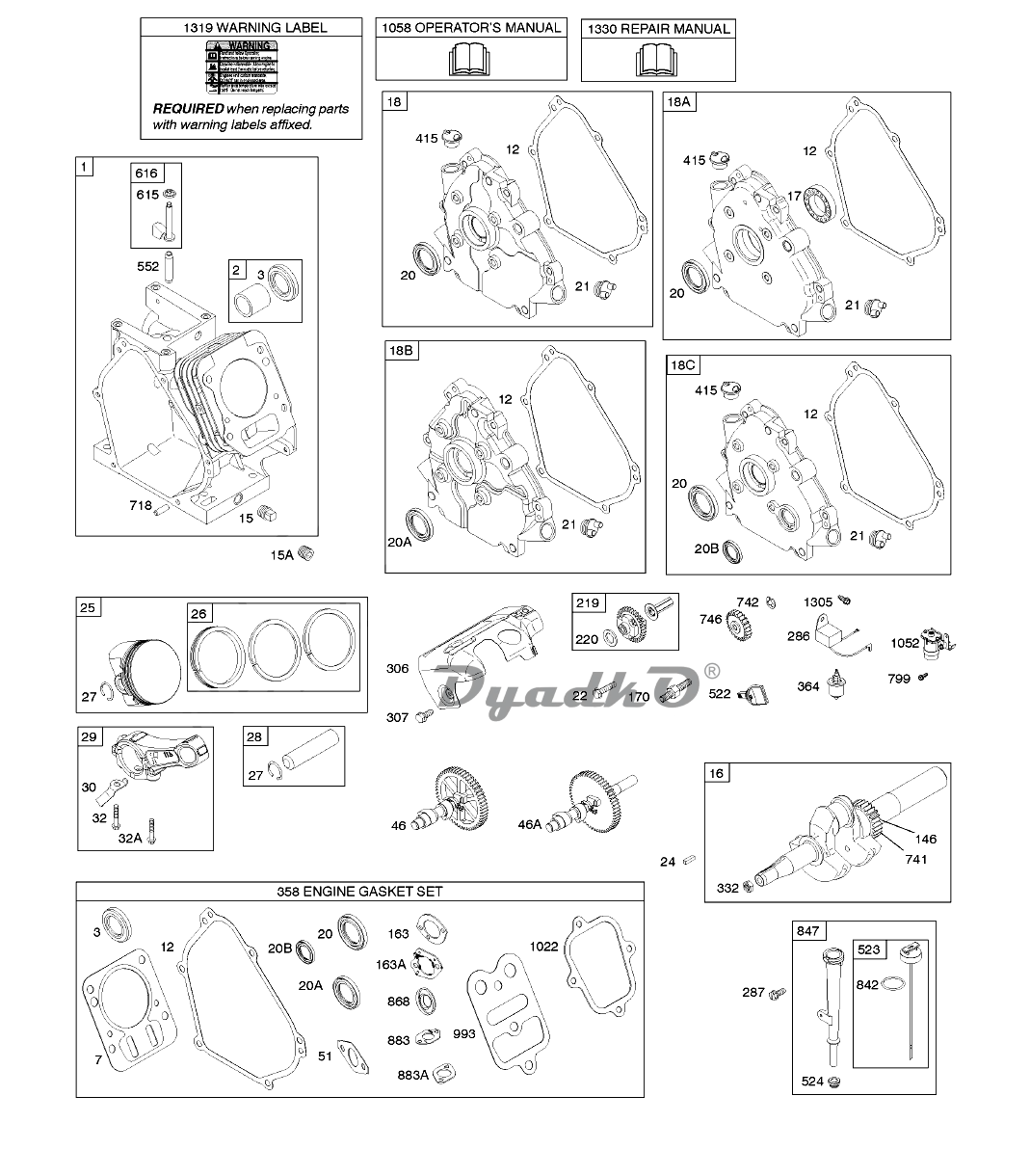

Схема BRIGGS&STRATTON 120212-0560-B8 Camshaft, Crankcase Cover, Crankshaft, Cylinder, Lubrication, Piston Group
1
Cylinder Assembly
2
Kit-Bushing/Seal-(Magneto Side)
3
SEAL, Oil-(Magneto Side)
7
Gasket-Cylinder Head
12
Gasket-Crankcase
15
PLUG, Oil Drain-(Square Head)(1/4\" Diameter)
15A
Plug-Oil Drain-(Hex Socket)(1/4\" Diameter)
16
Crankshaft
17
Bearing-Ball
18
Cover-Crankcase
20
Seal-Oil-(PTO Side)
20A
Seal-Oil-(PTO Side)
20B
Seal-Oil-(PTO Side)
21
Cap-Oil Fill
22
Screw-(Crankcase Cover/Sump)
24
KEY, Flywheel
25
Piston Assembly-(.020\" Oversize)
25
Piston Assembly-(Standard)
26
Ring Set-(Standard)-Used Before Code Date 05060700
26
Ring Set-(.020\" Oversize)-Used After Code Date 05060600
26
Ring Set-(Standard)-Used After Code Date 05060600
26
Ring Set-(.020\" Oversize)-Used Before Code Date 05060700
27
Lock-Piston Pin
28
Pin-Piston
29
Rod-Connecting
30
Dipper-Connecting Rod
32
Screw-(Connecting Rod)
32A
Screw-(Connecting Rod)
46
Camshaft
46A
Camshaft
51
Gasket-Intake
146
KEY, Woodruff
163
Gasket-Air Cleaner-(Flat Panel Air Cleaner)
163A
Gasket-Air Cleaner-(High Mount)
170
Stud-(Crankcase Cover/Sump)
219
GEAR, Governor
220
Washer-(Governor Gear)
286
Module-Oil Sensor
287
Screw-(Dipstick Tube)
306
Shield-Cylinder
307
Screw-(Cylinder Shield)
332
Nut-(Flywheel)
358
Gasket Set-Engine
364
Terminal-Oil Plug
415
Plug
522
Plug-Dipstick/Fill
523
Dipstick-Used After Code Date 10022100
523
Dipstick-Used Before Code Date 10022200
524
Seal-Dipstick Tube
552
Bushing-Governor Crank
615
Retainer-Governor Shaft
616
Crank-Governor
718
PIN, Locating
741
Gear-Timing
742
RETAINER, E Ring-(Idler Gear)
746
Gear-Idler
799
Screw-(Oil Sensor)
842
SEAL, O-Ring-(Dipstick Tube)
847
Dipstick/Tube Assembly-Used Before Code Date 10022200
847
Dipstick/Tube Assembly-Used After Code Date 10022100
868
Seal-Valve
883
Gasket-Exhaust-(Between Adapter And Cylinder)
883A
Gasket-Exhaust
993
Gasket-Cylinder Head Plate
1022
Gasket-Rocker Cover
1052
Sensor-Oil
1058
Operator\'s Manual
1305
SCREW-(Oil Sensor Module)
1319
LABEL, Warning
1330
Repair Manual
