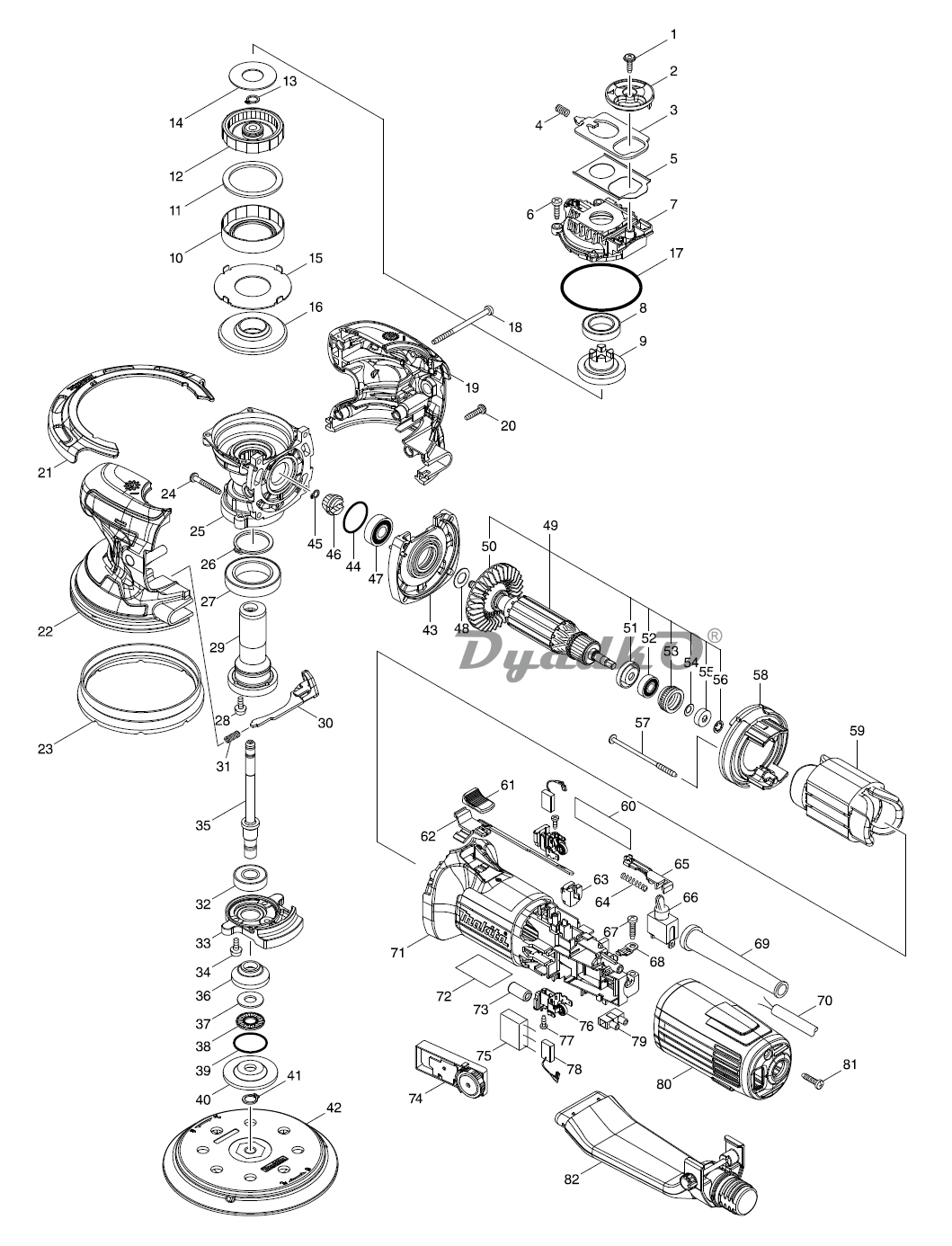

Схема MAKITA BO 6050

1 TAPPING SCREW 4X14
2 CHANGE KNOB
3 CHANGE PLATE
003-1 CHANGE PLATE
4 COMPRESSION SPRING 5
5 GUIDE PLATE
6 TAPPING SCREW CT 4X16
7 TOP COVER
8 BALL BEARING 6804LLU
9 SPUR GEAR 31
10 BRAKE RING
11 SPONGE WASHER 40
12 INTERNAL GEAR 34
13 RETAINING RING S-8
14 FLAT WASHER 18
15 PLATE
16 SPIRAL BEVEL GEAR 43
17 O RING 65
18 TAPPING SCREW 4X65
19 HEAD COVER SET
20 TAPPING SCREW 4X18
21 PAD PROTECTOR
22 HEAD COVER SET
23 RUBBER GUARD
24 TAPPING SCREW 4X30
25 GEAR HOUSING COMPLETE
26 RETAINING RING S-30
27 BALL BEARING 6906DDW
28 PAN HEAD SCREW M4X12
29 OUTER SPINDLE COMPLETE
30 SHAFT LOCK COMPLETE
31 COMPRESSION SPRING 4
32 BALL BEARING 6001DDW
33 BALANCER
34 PAN HEAD SCREW M4X12
35 INNER SPINDLE COMPLETE
36 COVER
37 FLAT WASHER 10
38 THRUST NEEDLE CAGE 1024
39 O-RING 26
40 FLANGE
41 RETAINING RING S-10
42 PAD 150 SET
43 GEAR HOUSING COVER COMPLETE
44 O-RING 26
45 RETAINING RING S-6
46 SPIRAL BEVEL GEAR 11
47 BALL BEARING 6000DDW
48 FLAT WASHER 10
49 ARMATURE ASS\'Y 220-240V
50 FAN 60
51 INSULATION WASHER
52 BALL BEARING 607LLB
53 LABYRINTH RUBBER RING 19
54 WAVE WASHER 6
55 MAGNET SLEEVE
56 SELF LOCK 6
57 TAPPING SCREW 4X75
58 BAFFLE PLATE
59 FIELD 220-240V
60 B06050 NAME PLATE
61 SWITCH KNOB
62 FRONT SWITCH LEVER
63 PICUP COIL COVER
64 COMPRESSION SPRING 4
65 REAR SWITCH LEVER
66 SWITCH
67 TAPPING SCREW 4X18
68 STRAIN RELIEF
69 CORD GUARD 10
70 POWER SUPPLY CORD 1.0-2-4.0
71 MOTOR HOUSING
72 INDICATION LABEL
73 LINE FILTER
74 CONTROLLER
75 NOISE SUPPRESSOR
76 BRUSH HOLDER
77 TAPPING SCREW BIND PT 3X10
78 CARBON BRUSH CB-325
79 TERMINAL BLOCK 1P
80 REAR COVER
81 TAPPING SCREW 4X18
82 NOZZLE COMPLETE
A06 ABRASIVE DISC 150#120
D10 INC. 22
D10 INC. 19
A01 GRIP 36 COMPLETE
A02 CONNECTOR PLASTIC CASE (TYPE3)
C10 LATCH
A03 INNER TRAY
A04 B06050J INDICATION LABEL
A05 B06050J PLASTIC CASE LABEL
D10 INC. 50-56
