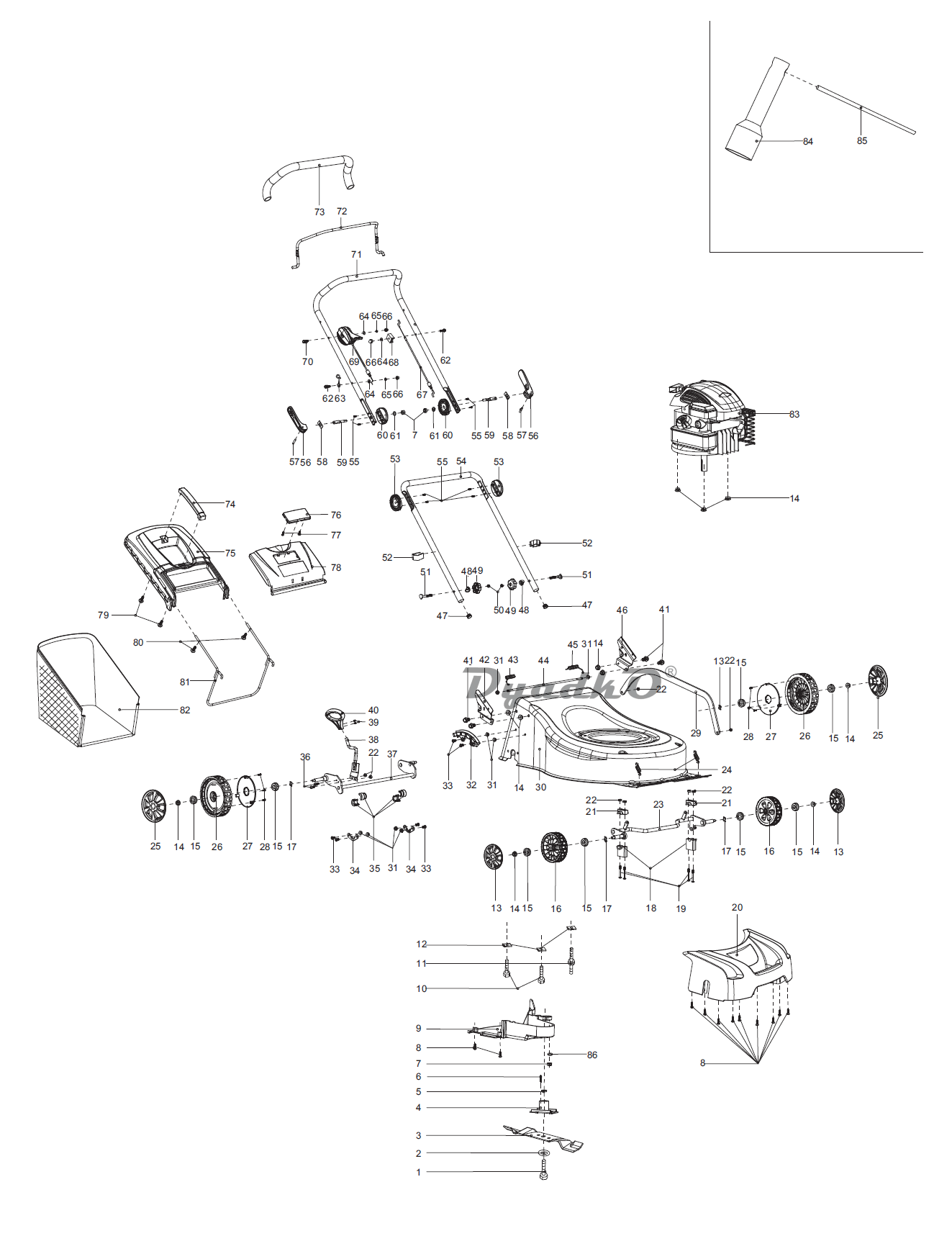

Схема MAKITA PLM 4616, PM-46

1 BLADE TIGHTEN SCREW 3/8\", L=40mm
2 LID SHAPE WASHER 044.5/10.2x2.5
3 BLADE 460mm
4 BLADE SUPPORT
5 BLADE SUPPORT BUSH
6 FLAT KEY 4.7x4x4.7
7 HEXAGONAL LOCKING NUT M8
8 SELF-TAPPING SCREW 5x16
9 BELT COVER
10 HEXAGON BOLT M8x35
11 SPECIAL SCREW M8x17x35
12 SQUARE GASKET 10
13 WHEEL COVER 8\"
14 HEXAGONAL LOCKING NUT M8
15 BEARING
16 WHEEL ASSY 8\"
17 WAVE WASHER 4)12x4)18x0.5
18 LOWER SUPPORT OF WHEEL AXIS
19 BOLT M6x60mm
20 FRONT COVER 18”
21 UPPER SUPPORT OF WHEEL AXIS
22 LOCKING NUT M6
23 FRONT WHEEL AXLE 18”
24 EXTENSION SPRING OF FRONT WHEEL AXLE
25 WHEEL COVER 11”
26 WHEEL ASSY 11”
27 DUST COVER 11”
28 SELF-TAPPING SCREW ST4x16
29 LINK ROD 18”
30 DECK 18\", MAKITA
31 HEXAGONAL LOCKING NUT M6
32 HEIGHT ADJUSTMENT PLATE 18\"
33 TRIGGER BOLT M6x12
34 RING OF AXLE FIXING
35 AXLE SHEATH
36 TRIGGER BOLT M6x14
37 REAR WHEEL AXLE 18\"
38 HANDLE ASSY 18\"
39 SCREW M5x8
40 GRIP
41 HEXAGON HEAD BOLT M8x6
42 BRACKET HANDLE, RIGHT 18\", MAKITA
43 TORSION SPRING, RIGHT
44 LONG POLE 4)6,18\"
45 TORSION SPRING, LEFT
46 BRACKET HANDLE, LEFT 18\", MAKITA
47 TUBE PLUG 4>22mm
48 WASHER
49 STAR KNOB
50 NUT M8
51 FLAT HEAD BOLT M8x52
52 BOWDEN CABLE CLAMP
53 LOWER ADJUSTING TOOTH RING
54 HANDLE, LOWER PART
55 BOLT 3x10
56 LOCKING HANDLE
57 CYLINDRICAL PIN 5x20
58 PRESSING PLATE
59 BOLT M8x69
60 UPPER ADJUSTING TOOTH RING
61 FLAT WASHER 4>16x
62 BOLT M6x35
63 CABLE HOOK
64 WASHER 4)16x4)8x0,8
65 SPRING WASHER 4)6,65
66 HEX. LOCK NUT M6
67 CONTROL CABLE (MOTOR BRAKE) 960mm
68 FIXED BRACKET
69 THROTTLE HANDLE ASS\'Y
70 BOLT M6x50
71 UPPER HANDLE
72 LEVER, MOTOR BRAKE
73 HANDLE SHEATH 4)22x4)32x500
74 GRASS CATCHER HANDLE
75 GRASS-BOX, UPPER 60L
76 TRANSPARENT WINDOW
77 SELF-TAPPING SCREW ST4x12
78 REAR FLAP ASS\'Y
79 SELF-TAPPING SCREW 8x19
80 BOLT 4,2x18
81 GRASS CATCHER BRACKET 18720\"
82 GRASS CATCHER 60L, MAKITA LOGO
83 ENGINE 500/158CC/2.2KW /2600rpm,B&S,XA Q,Makita
84 BOX SPANNER 21mm
85 SPANNER POLE 08x110mm
86 WASHER 4>8
