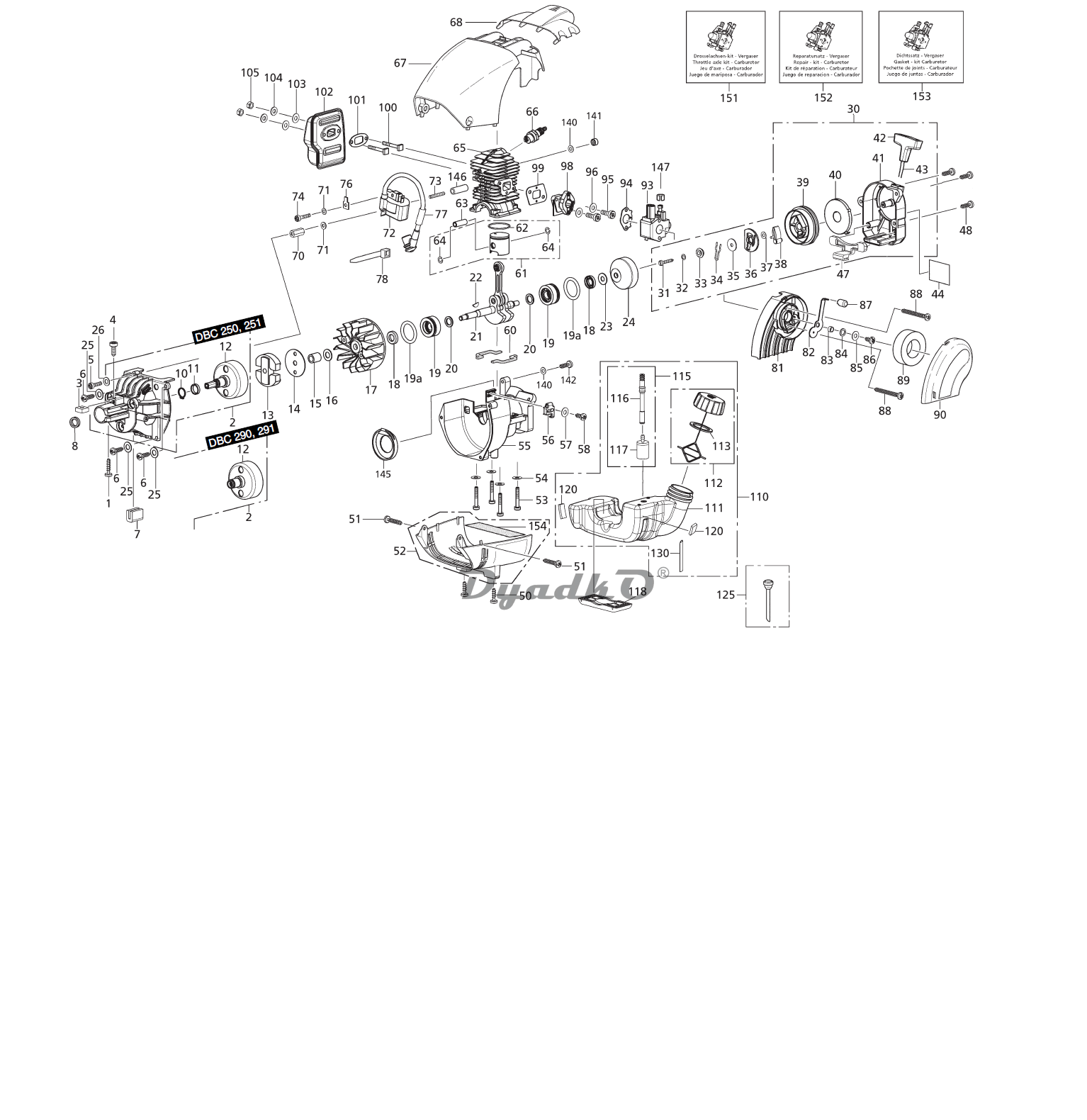

Схема MAKITA DBC 290 Двигатель

1 screw 6x25
2 flange housing 7 Z
3 nut M5-SW12
4 screw M5x14,5
5 screw M4x16
6 screw 5x16 kt
7 AV profile
8 spacer
10 circlip
11 spacer
12 clutch drum 7 Z
13 centrifugal clutch
14 washer
15 spacer tube 15x2,5x17
16 washer 10,2x20x1,1-DIN2093
17 fan wheel
18 oil seal 12x22x5
19 bearing sleeve
19a o-ring 27x3
20 washer 12x18x1,8DIN988
21 crankshaft
22 disc spring 1,6x4,3
23 spring 8,2x20x1 DIN2093
24 pulley
25 washer 5,2x12x0,5 DIN2093
26 washer 4,2x10x0,5
30 starter
31 screw 3,5x22 DIN7971
32 safety washer 4S
33 spacer
34 pin
35 washer
36 template
37 spring washer 4 DIN137B
38 starter ratchet
39 rope pulley
40 spring cassette
41 starter housing
42 starter grip
43 starter rope 3x1050
44 sticker MAKITA
47 damping piece
48 screw 5x16 kt
50 screw 5x16 kt
51 screw 5x16 kt
52 housing MAKITA
53 screw M5x35
54 washer 5,2x12x0,5 DIN2093
55 crankcase
56 counter bearing
57 washer 5,2x12x0,5 DIN2093
58 screw M5x12
60 gasket
61 piston Ø 35 mm
62 piston ring 35x1,5
63 piston pin
64 piston pin circlip 9x0,8 C DIN 73130
65 cylinder Ø 35 mm
66 spark plug
67 cover MAKITA
68 ignition cap
70 Hex. nut M4 h=18,5
71 safety washer 4 DIN6796
72 ignition coil
73 stud screw M4x30 DIN835
74 screw M4x20
76 flat plug
77 felt
78 cable strap
81 filter housing
82 choke flap
83 spacer tube 7x0,8x3,7
84 washer
85 washer 5,2x12x0,5 DIN2093
86 screw 5x10 kt
87 knob
88 screw 5x45 kt
89 filterplate
90 filter lid MAKITA
93 carburetor WT602 A
94 carburetor gasket
95 screw M5x20
96 safety washer
98 intake socket
99 manifold gasket
100 screw
101 exhaust gasket
102 exhaust
103 washer 5,2x12x0,5 DIN2093
104 safety washer 5-DIN6796
105 hex. nut M5-DIN980-Sto
110 tank cpl.
111 tank
112 tank cap
113 gasket 30,5x40,8x2
115 fuel filter
116 fuel hose
117 fuel pick-up
118 damping piece
120 felt
125 ventilation hose
130 hose
140 safety washer 4 DIN6796
141 carb. port piece
142 screw M4x16
145 pot
146 sleeve
147 retaining ring
151 throttle axle kit - carburetor WT 602
152 repair set - carburetor WT 602
153 gasket set - carburetor WT 602
154 felt
