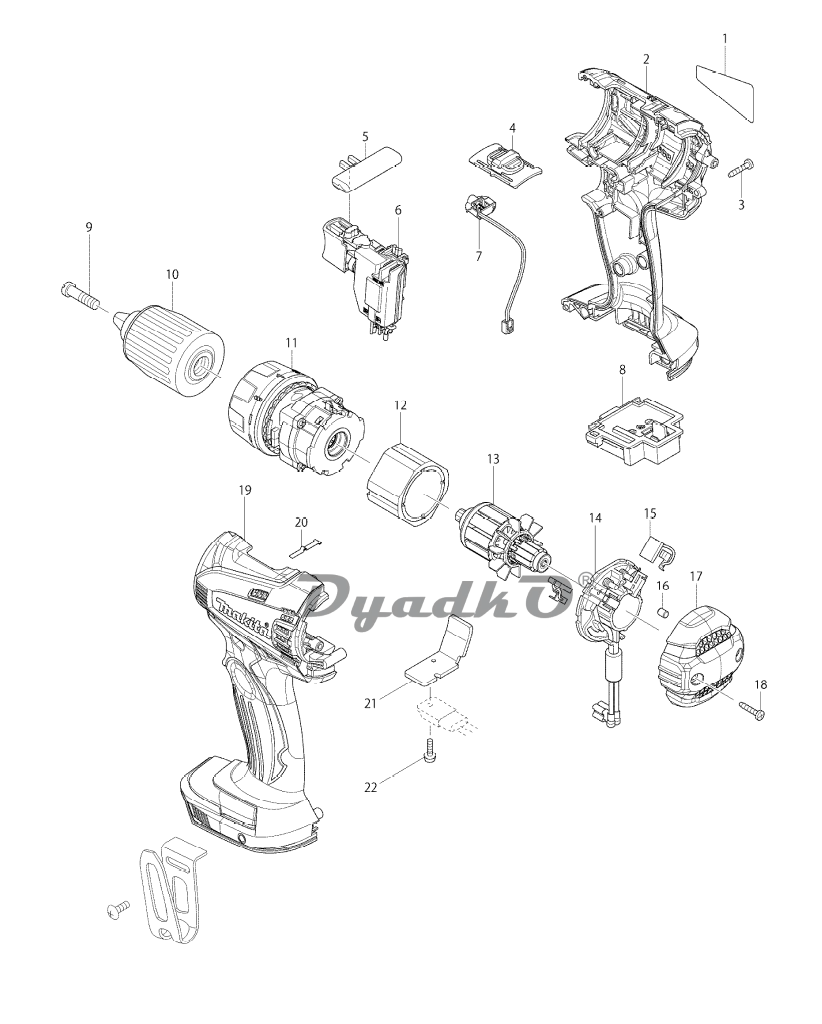

Схема (деталировка) шуруповёрты MAKITA BDF 446 RFE. Подбор по модели, низкие цены в интернет-магазине Дядько.ру с доставкой по Москве и всей России

1	BDF446 NAME PLATE
2	HOUSING SET INC. 19
3	TAPPING SCREW 3X16
4	SPEED CHANGE LEVER ASSEMBLY
5	F/R CHANGE LEVER
6	SWITCH C3HZ-1A-TLMS
7	LED CIRCUIT
8	TERMINAL
9	FLAT HEAD SCREW M6X22
10	KEYLESS DRILL CHUCK 13
11	GEAR ASSEMBLY
12	YOKE UNIT
13	ARMATURE
14	BRUSH HOLDER COMPLETE
15	CARBON BRUSH CB-440
16	RUBBER PIN 4
17	REAR COVER
18	TAPPING SCREW 3X16
19	HOUSING SET INC. 2
20	LEAF SPRING
21	HEAT SINK
22	PAN HEAD SCREW M3X10
A01	SCREW M4X12
A02	HOOK
A03	BIT 2-45
A04	PLASTIC CARRYING CASE COMPLETE
A05	BATTERY COVER
A06	DC18RC FAST CHARGER
A07	BATTERY BL1430 SET
A08	BDF446RFE PLASTIC CASE LABEL
