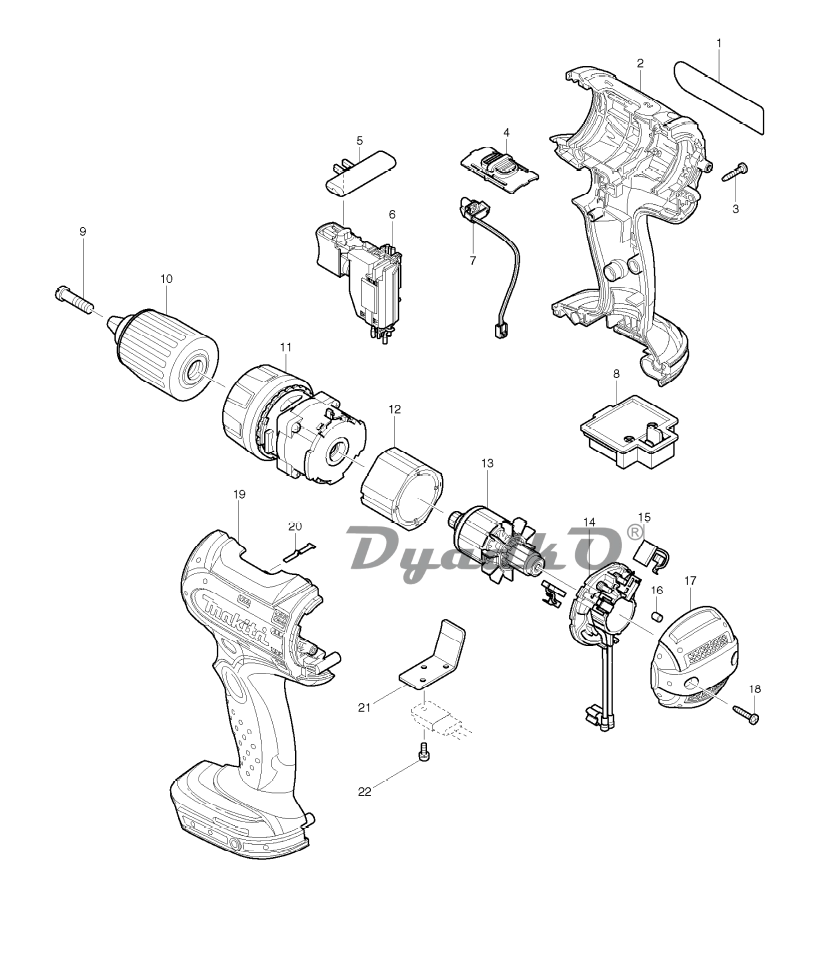

Схема MAKITA BDF 442
1
BDF442 NAME PLATE
2
HOUSING SET INC. 19
3
TAPPING SCREW BIND PT 3X16
4
SPEED CHANGE LEVER ASS\'Y
5
F/R CHANGE LEVER
6
SWITCH C3HZ-1A-TLM
7
LED CIRCUIT
8
TERMINAL
9
FLAT HEAD SCREW M6X22
10
KEYLESS DRILL CHUCK 13
11
GEAR ASS\'Y
12
YOKE UNIT
13
ARMATURE
14
BRUSH HOLDER COMPLETE
15
CARBON BRUSH CB-440
16
RUBBER PIN 4
17
REAR COVER
18
TAPPING SCREW BIND PT 3X16
19
HOUSING SET INC. 2
20
LEAF SPRING
21
HEAT SINK
22
PAN HEAD SCREW M3X8
A01
DC18RC FAST CHARGER
A02
BIT 2-45
A03
PLASTIC CASE COMPLETE
A04
BATTERY BL1430 SET
A05
BDF442RFE PLASTIC CASE LABEL
A06
BATTERY COVER
E01
HOOK
E02
SCREW M4X12
