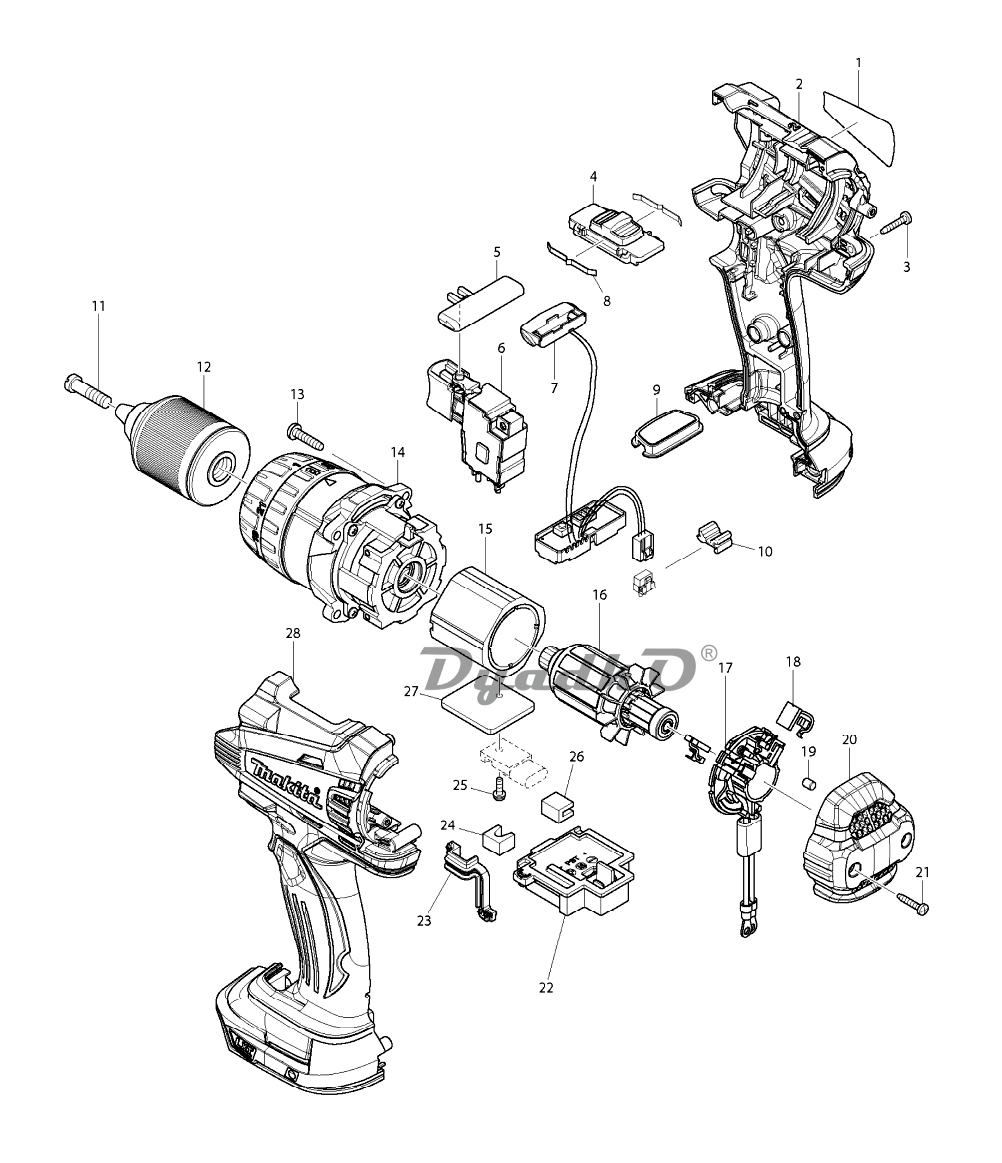

| 1 | BDF458 NAME PLATE |
| 2 | HOUSING SET INC. 28 |
| 3 | TAPPING SCREW BIND PT 3X16 |
| 4 | SPEED CHANGE LEVER ASSEMBLY |
| 5 | F/R CHANGE LEVER |
| 6 | SWITCH TG573FSB-3 |
| 7 | LIGHT CIRCUIT |
| 8 | LEAF SPRING |
| 9 | SWITCH PLATE COMPLETE |
| 10 | CUSHION |
| 11 | FLAT HEAD SCREW M6X22 |
| 12 | KEYLESS DRILL CHUCK 13 |
| 13 | TAPPING SCREW 4X18 |
| 14 | GEAR ASSEMBLY |
| 15 | YOKE UNIT |
| 16 | ARMATURE |
| 17 | BRUSH HOLDER COMPLETE |
| 18 | CARBON BRUSH CB-440 |
| 19 | RUBBER PIN 4 |
| 20 | REAR COVER |
| 21 | TAPPING SCREW BIND PT 3X16 |
| 22 | TERMINAL |
| 23 | SEAL |
| 24 | SPONGE A |
| 25 | PAN HEAD SCREW M3X10 |
| 26 | SPONGE B |
| 27 | HEAT SINK |
| 28 | HOUSING SET INC. 2 |
| A01 | GRIP ASSEMBLY |
| A02 | SCREW M4X12 |
| A03 | HOOK |
| A04 | BIT HOLDER |
| A05 | BIT 2-45 |
| A06 | DC18RC FAST CHARGER |
| A07 | BATTERY BL1830 SET |
| A08 | BATTERY COVER |
| A09 | PLASTIC CARRYING CASE |
| A10 | BDF458RFE PLASTIC CASE LABEL |
