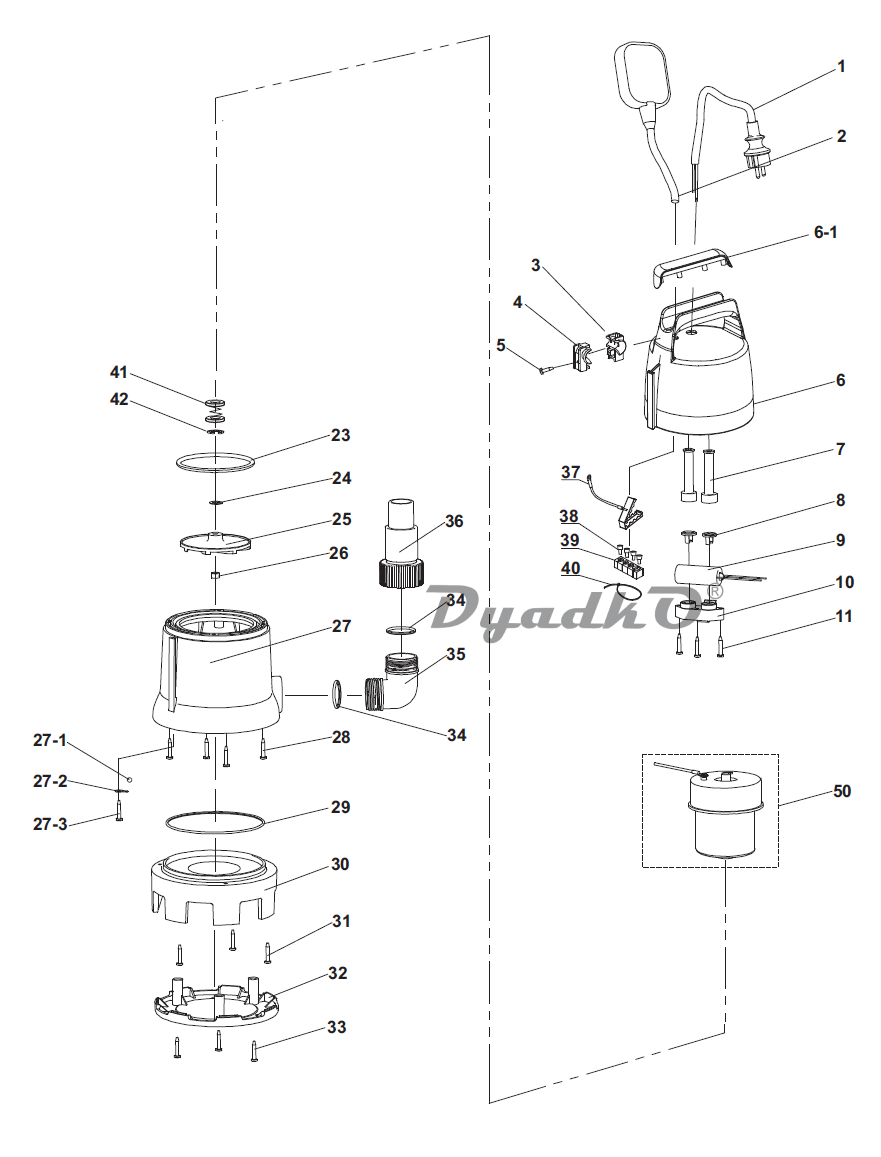

Схема (деталировка) дренажные и фекальные погружные насосы MAKITA PF0410. Подбор по модели, низкие цены в интернет-магазине Дядько.ру с доставкой по Москве и всей России

1	POWER SUPPLY CORD W. PLUG H05RN-F 3G0.75mm2,«J)7m m*10.27m
2	FLOAT SWITCH H07RN - F 3G1.Omm2,09.Om m’0.64m (MAKITA)
3	WIRE CLAMP
4	WIRE CLAMP
5	SELF-TAPPING SCREW
6	BACK PUMP CASING MAKITA
6-1	HANDLE COVER MAKITA
7	CABLE JACKET o6.5
7	CABLE JACKET 08.5
8	CABLE PRESS PAD
8	CABLE PRESS PAD
9	CAPACITOR 6pF
10	CABLE PRESS PAD
11	SELF-TAPPING SCREW
23	O-RING 89*5.2
24	ADJUSTING GASKET d8.5D20H1
25	IMPELLER
26	NUT
27	MAIN PUMP SHELL
27-1	STEEL BALL
27- 2	SMALL PADS
27- 3	SELF-TAPPING SCREW
28	SELF-TAPPING SCREW
29	O-RING 125*3
30	BASE
31	SELF-TAPPING SCREW 4.5x18
32	BOTTOM PLATE
33	SELF-TAPPING SCREW F type
34	O-RING 37.5*3
35	ELBOW
36	OUTPUT CONNECTOR
37	GROUND COVER
38	NYLON SAFTY PRESS CAP
38	NYLON SAFTY PRESS CAP
39	RUBBER CLIP
40	NYLON BAND
41	MECHANICAL SEAL
42	RETAINING RING
50	MOTOR KIT PF0410
