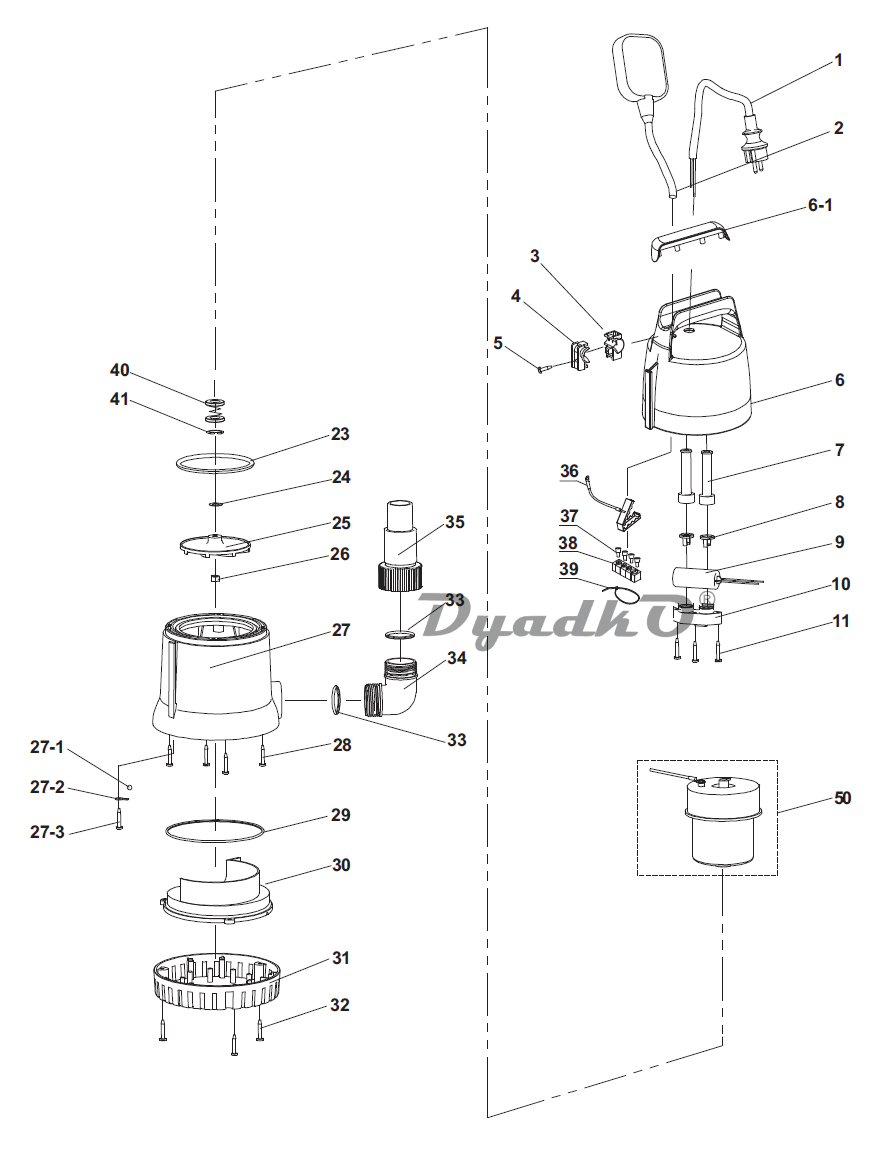

Схема (деталировка) дренажные и фекальные погружные насосы MAKITA PF0300. Подбор по модели, низкие цены в интернет-магазине Дядько.ру с доставкой по Москве и всей России

1	POWER SUPPLY CORD W. PLUG H05RN-F 3G0.75mm2,«J>7m m* 10.27m
2	FLOAT SWITCH H07RN - F 3G1 .Omm2,09.Om m*0.64m (MAKITA)
3	WIRE CLAMP
4	WIRE CLAMP
5	SELF-TAPPING SCREW
6	BACK PUMP CASING MAKITA
6-1	HANDLE COVER MAKITA
7	CABLE JACKET 43226
7	CABLE JACKET 43228
8	CABLE PRESS PAD
8	CABLE PRESS PAD
9	CAPACITOR 6pF
10	CABLE PRESS PAD
11	SELF-TAPPING SCREW
23	O-RING 89x5.2
24	ADJUSTING GASKET d8.5D20H1
25	IMPELLER
26	NUT
27	MAIN PUMP SHELL
27-1	STEEL BALL
27-2	SMALL PADS
27-3	SELF-TAPPING SCREW
28	SELF-TAPPING SCREW
29	O-RING 125x3
30	INNER BASE 32
31	BASE
32	SELF-TAPPING SCREW
33	O-RING 37.5x3
34	ELBOW
35	OUTPUT CONNECTOR
36	GROUND COVER
37	NYLON SAFTY PRESS CAP
37	NYLON SAFTY PRESS CAP
38	RUBBER CLIP
39	NYLON BAND
40	MECHANICAL SEAL
41	RETAINING RING
50	MOTOR KIT PF0300
