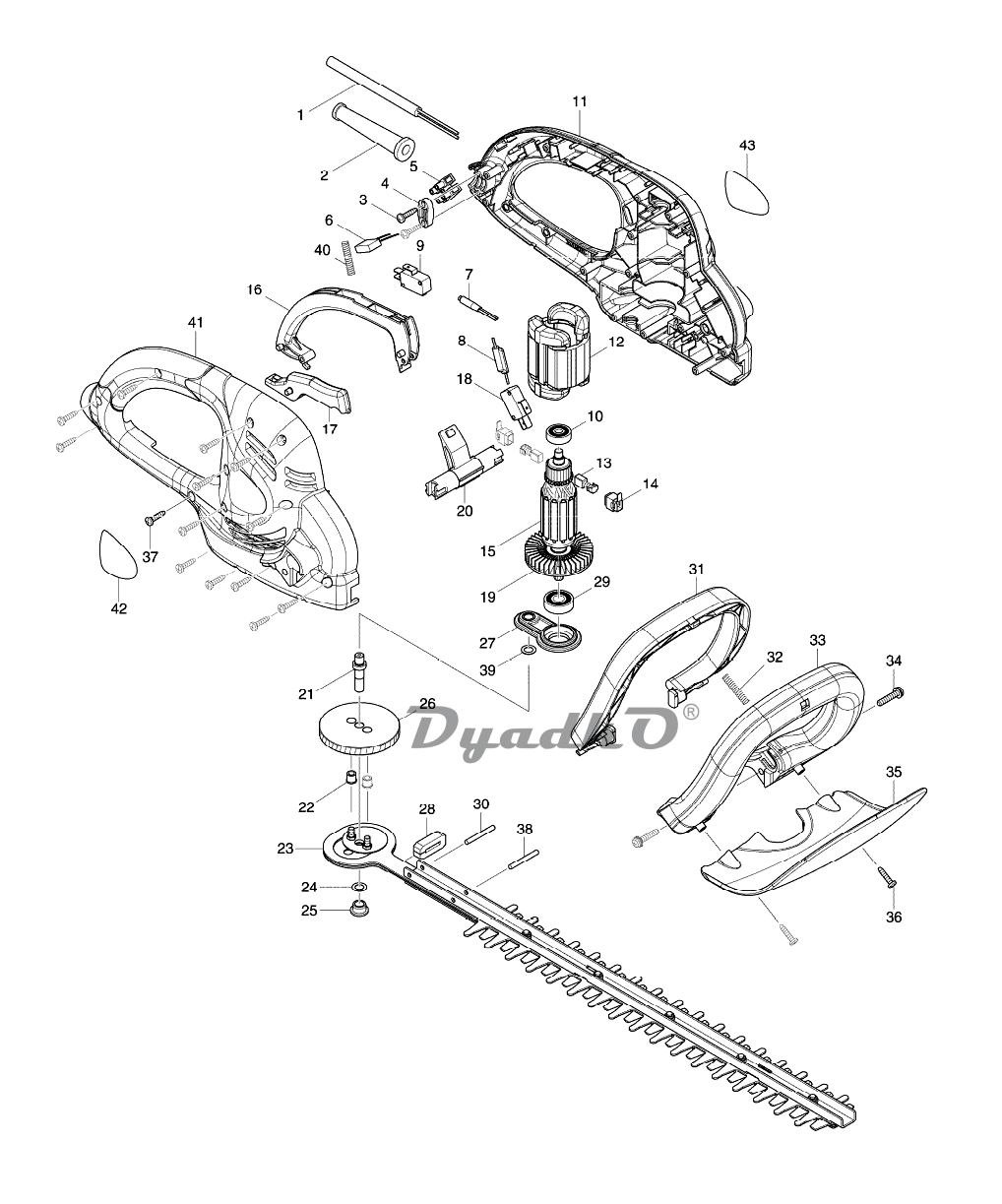

| 1 | POWER SUPPLY CORD 1.0-2-0.3 |
| 2 | CORD GUARD 9.3-85 |
| 3 | TAPPING SCREW 4X18 |
| 4 | STRAIN RELIEF |
| 5 | TERMINAL BLOCK 2P |
| 6 | NOISE SUPPRESSOR |
| 7 | CHOKE COIL |
| 8 | CHOKE COIL |
| 9 | SWITCH |
| 10 | BALL BEARING 627ZZ |
| 11 | HOUSING SET INC. 41,43 |
| 12 | FIELD 220-240V |
| 13 | CARBON BRUSH CB-419 |
| 14 | BRUSH HOLDER |
| 15 | ARMATURE ASS\'Y 240V INC. 10,19,29 |
| 16 | SWITCH LEVER A |
| 17 | SWITCH LEVER C |
| 18 | SWITCH |
| 19 | FAN 60 |
| 20 | SWITCH ARM |
| 21 | SPINDLE |
| 22 | NYLON SLEEVE 5 |
| 23 | SHEAR BLADE COMPLETE |
| 24 | FLAT WASHER 8 |
| 25 | PLANE BEARING 8 |
| 26 | HELICAL GEAR 67 |
| 27 | BEARING BOX COMPLETE |
| 28 | DUST GUARD |
| 29 | BALL BEARING 6000ZZ |
| 30 | PIN 4 |
| 31 | SWITCH LEVER B |
| 32 | COMPRESSION SPRING 5 |
| 33 | FRONT GRIP |
| 34 | PAN HEAD SCREW M5X25 |
| 35 | PROTECTOR COMPLETE |
| 36 | TAPPING SCREW 4X18 |
| 37 | TAPPING SCREW 4X18 |
| 38 | PIN 4 |
| 39 | FLAT WASHER 8 |
| 40 | COMPRESSION SPRING 5 |
| 41 | HOUSING SET INC. 11,43 |
| 42 | UH4261 NAME PLATE |
| 43 | MAKITA LOGO LABEL |
| A01 | CORD HOLDER COMPLETE SET |
| A02 | HOOK COMPLETE |
| A03 | BLADE COVER |
