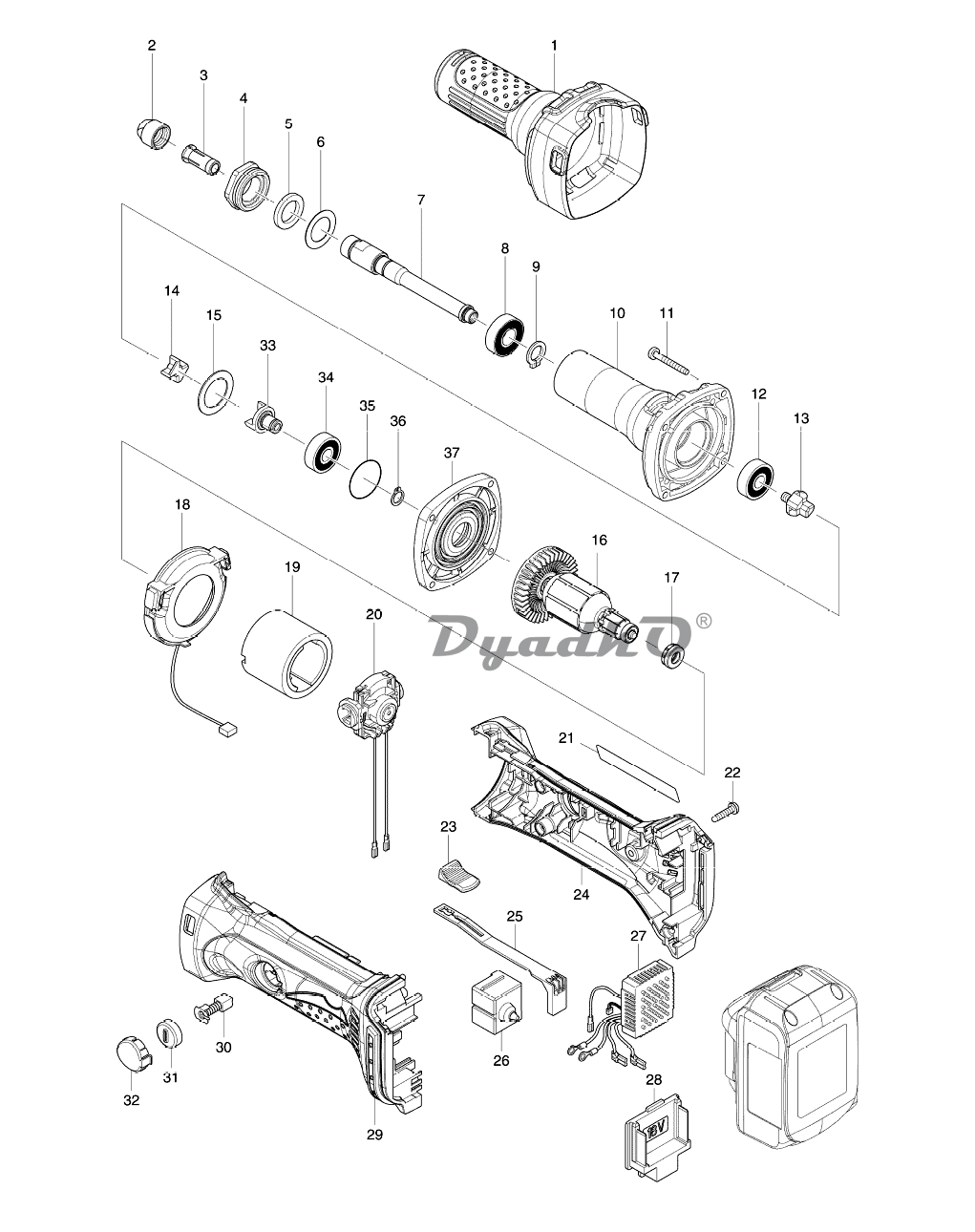

| 1 | INSULATION COVER |
| 2 | COLLET NUT |
| 3 | COLLET CONE 6 |
| 4 | BEARING RETAINER |
| 5 | FELT RING 17 |
| 6 | FLAT WASHER 18 |
| 7 | SPINDLE |
| 8 | BALL BEARING 6001LLB |
| 9 | RETAINING RING S-12 |
| 10 | BARREL |
| 11 | TAPPING SCREW 4X30 |
| 12 | BALL BEARING 629LLB |
| 13 | COUPLING |
| 14 | SPACER |
| 15 | FLAT WASHER 22 |
| 16 | ARMATURE INC. 17 |
| 17 | RUBBER RING 13 |
| 18 | LED CIRCUIT |
| 19 | YOKE UNIT |
| 20 | ENDBELL COMPLETE |
| 21 | BGD800 NAME PLATE |
| 22 | TAPPING SCREW 4X18 |
| 23 | SWITCH KNOB |
| 24 | HOUSING SET INC. 29 |
| 25 | SWITCH LEVER |
| 26 | SWITCH 1246.3223 |
| 27 | CONTROLLER |
| 28 | TERMINAL |
| 29 | HOUSING SET INC. 24 |
| 30 | CARBON BRUSH CB-430 |
| 31 | BRUSH HOLDER CAP |
| 32 | HOLDER CAP COVER |
| 33 | COUPLING |
| 34 | BALL BEARING 629LLB |
| 35 | O-RING 26 |
| 36 | RETAINING RING S-9 |
| 37 | GEAR HOUSING COVER |
| A01 | WRENCH 13 |
| A02 | BATTERY COVER |
| A03 | DC18RC FAST CHARGER |
| A04 | BATTERY BL1830 SET |
| A05 | PLASTIC CASE COMPLETE |
| A06 | BGD800RFE PLASTIC CASE LABEL |
