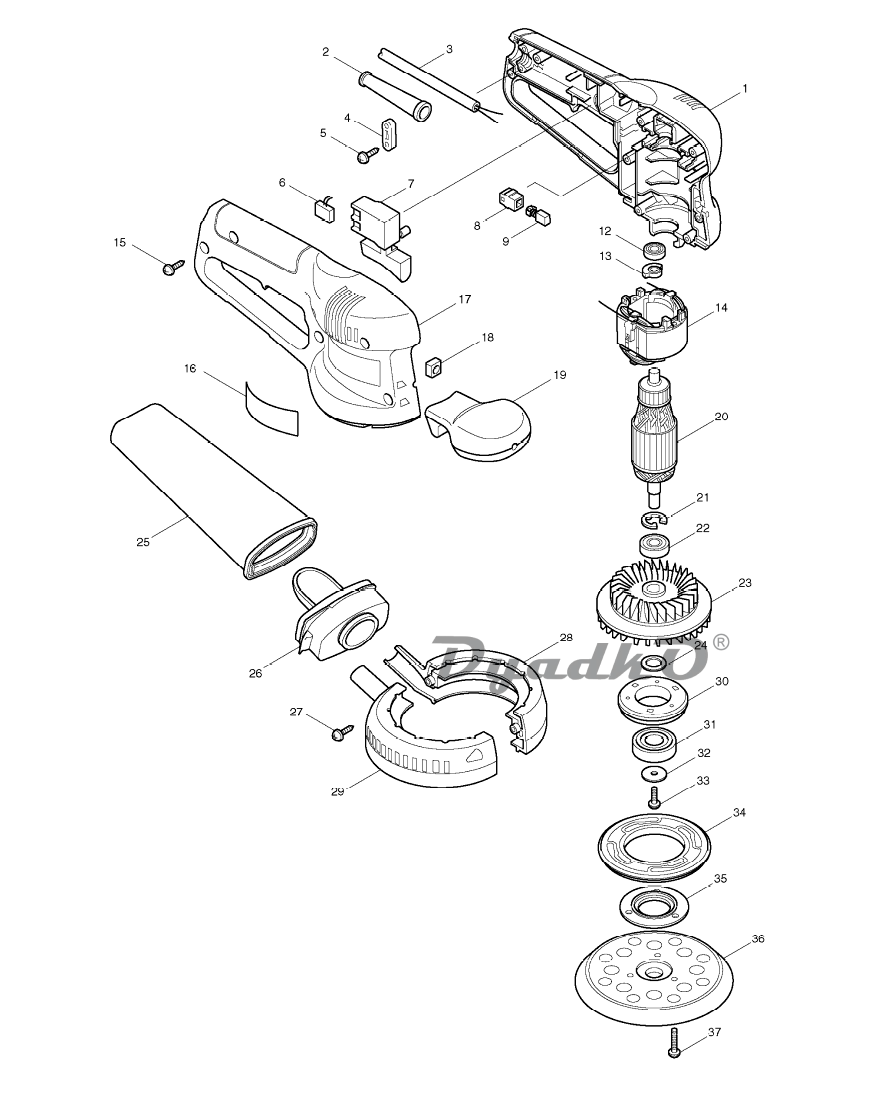

Схема MAKITA BO 5020
1
HOUSING SET INC. 17
2
CORD GUARD 8-85
3
POWER SUPPLY CORD 1.0-2-2.5
4
CORD CLAMP
5
TAPPING SCREW 4X18
6
NOISE SUPPRESSOR
7
SWITCH SGEL206C-5
8
BRUSH HOLDER 5-8
9
CARBON BRUSH CB-64
12
BALL BEARING 607DDW
13
COUNTER WEIGHT
14
FIELD 220-240V
15
TAPPING SCREW 4X18
16
NAME PLATE BO5020
17
HOUSING SET INC. 1
18
SQUARE NUT M5
19
FRONT GRIP
20
ARMATURE ASS\'Y 220-240V INC. 12,13,21,22
21
STOP RING E-9
22
BALL BEARING 6000LLU
23
FAN 88
24
THIN WASHER 15
25
DUST BAG COMPLETE
26
DUST NOZZLE COMPLETE
27
TAPPING SCREW 4X18
28
SKIRT SET INC. 29
29
SKIRT SET INC. 28
30
BEARING BOX
31
BALL BEARING 6002DDW
32
FLAT WASHER 4
33
PAN HEAD SCREW M4X12
34
BRAKE RING
35
BEARING BOX COVER
36
PAD 123
37
PAN HEAD SCREW M4X16
A01
ABRASIVE DISC 125 #120
A03
PAPER DUST BAG
A04
PAPER DUST BAG HOLDER
