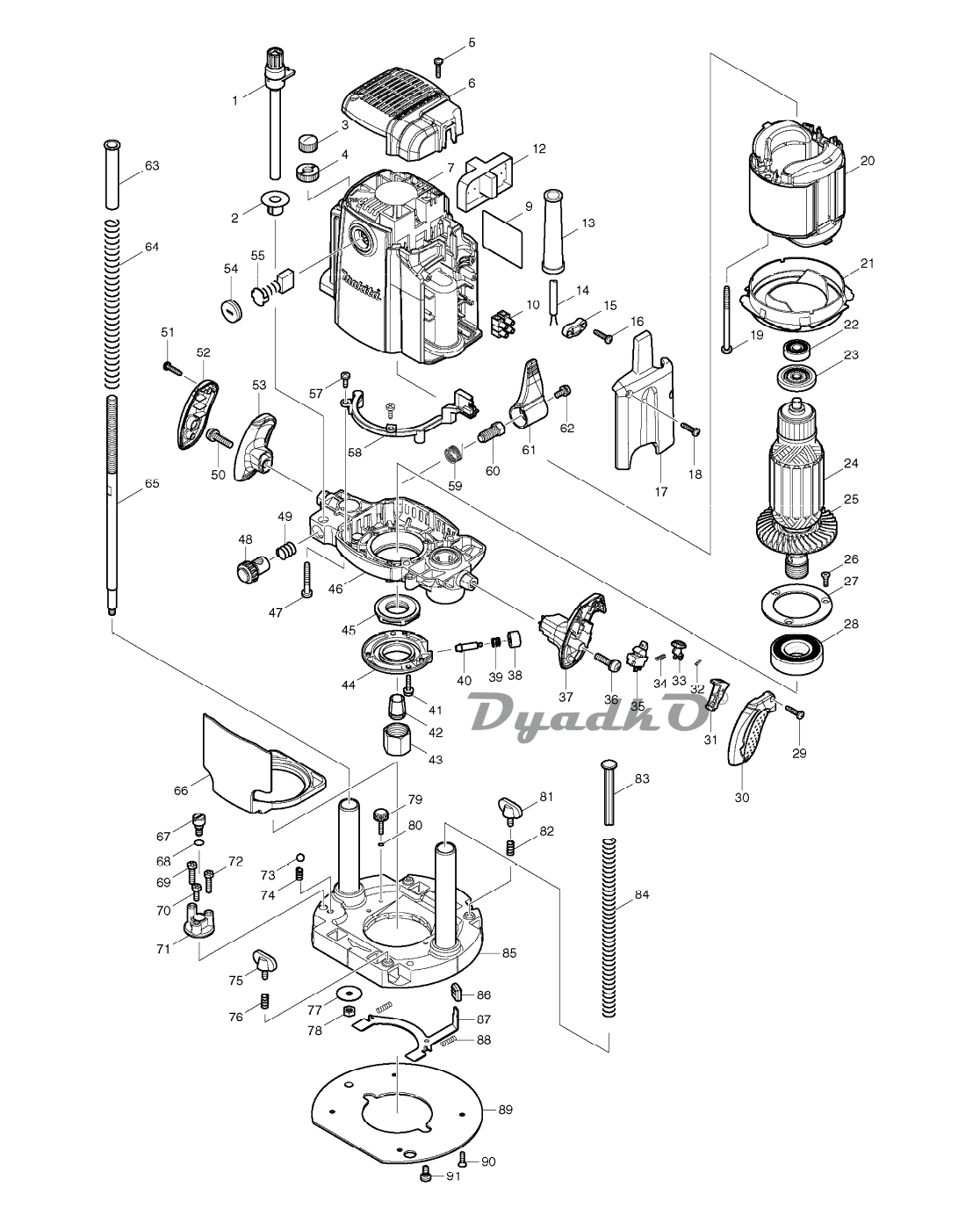

Схема MAKITA RP 1800 F

1 THUMB SCREW M10X115 ASS\'Y
2 DEPTH POINTER
3 WING NUT M10
4 NYLON NUT M10
5 TAPPING SCREW 4X18
6 REAR COVER
7 MOTOR HOUSING COMPLETE
9 RP1800F NAME PLATE
10 TERMINAL BLOCK 2P
12 POWER SUPPLY CIRCUIT
13 CORD GUARD 10-90
14 POWER SUPPLY CORD 1.0-2-4.0
15 STRAIN RELIEF
16 TAPPING SCREW 4X18
17 COVER
18 TAPPING SCREW 4X18
19 TAPPING SCREW 5X75
20 FIELD 240V
21 BUFFLE PLATE
22 BALL BEARING 629DDW
23 INSULATION WASHER
24 ARMATURE ASS\'Y 240V INC. 22,23,25
25 FAN 80
26 COUNTERSUNK HEAD SCREW M4X14
27 BEARING RETAINER 60
28 BALL BEARING 6205DDW
29 TAPPING SCREW 4X18
30 GRIP COVER R
31 SWITCH LEVER
32 COMPRESSION SPRING 4
33 LOCK OFF BUTTON
34 COMPRESSION SPRING 5
35 SWITCH
36 PAN HEAD SCREW M6X25
37 GRIP R
38 PUSH BUTTON
39 COMPRESSION SPRING 8
40 COLLARED PIN 6
41 PAN HEAD SCREW M4X18
42 COLLET CONE 12MM
43 COLLET NUT
44 RETAINER COVER
45 RETAINER
46 MOTOR BRACKET COMPLETE
47 TAPPING SCREW 5X35
48 HALF NUT COMPLETE
49 COMPRESSION SPRING 12
50 PAN HEAD SCREW M6X25
51 TAPPING SCREW 4X18
52 GRIP COVER L
53 GRIP L
54 BRUSH HOLDER CAP 7-18
55 CARBON BRUSH CB-203
57 TAPPING SCREW BIND CT 4X12
58 LED CIRCUIT
59 TORSION SPRING 15
60 SET BOLT M10
61 LOCK LEVER
62 PAN HEAD SCREW M5X12
63 SILENT POLE
64 COMPRESSION SPRING 13
65 SCREW M10
66 TIP DEFLECTOR
67 FLAT HEAD SCREW M6
68 O RING 8
69 HEX. BOLT M5X20
70 HEX. BOLT M5X14
71 STOPPER
72 HEX. BOLT M5X20
73 STEEL BALL 7.1
74 COMPRESSION SPRING 5
75 THUMB SCREW M5X14
76 COMPRESSION SPRING 7
77 FLAT WASHER 6
78 HEX. NUT M6
79 THUMB SCREW M4X19
80 O RING 3
81 THUMB SCREW M5X14
82 COMPRESSION SPRING 7
83 POLE
84 COMPRESSION SPRING 11
85 BASE COMPLETE
86 CAP 14
87 LOCK PLATE
88 COMPRESSION SPRING 4
89 BASE PLATE
90 COUNTERSUNK HEAD SCREW M4X10
91 SET BOLT M5X10
A01 GUIDE HOLDER ASS\'Y
A02 DUST NOZZLE ASS\'Y
A03 STRAIGHT GUIDE
A04 PAN HEAD SCREW M6X135
A05 COLLET SLEEVE FOR 6 MM BIT
A06 COLLET SLEEVE FOR 8 MM BIT
A07 WRENCH 24
A08 FLAT WASHER 6
