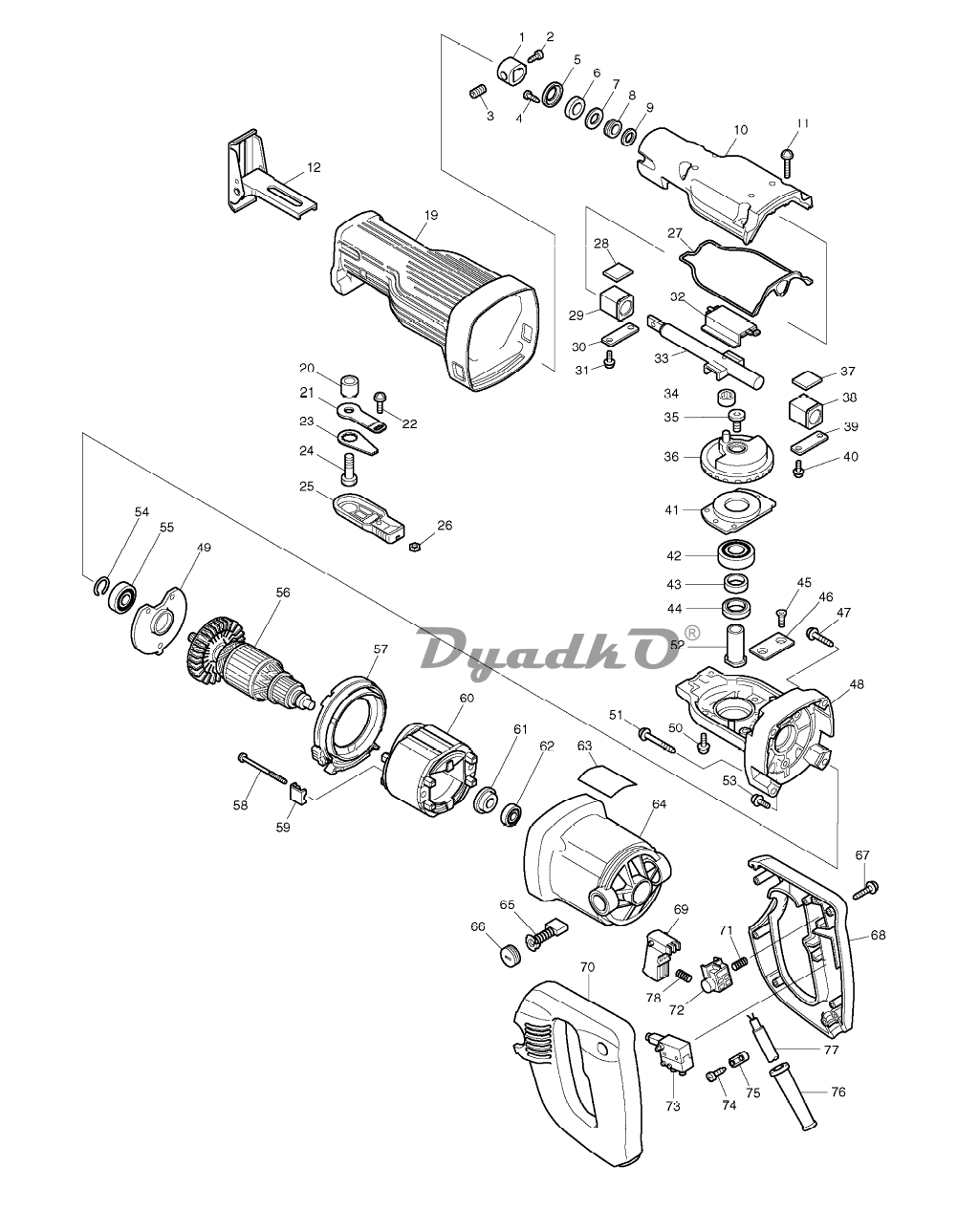

Схема MAKITA JR 3030

1 BLADE CLAMP
2 HEX. SOCKET HEAD BOLT M5X15
3 H.SOCKET SET SCREW(HOLE)M8X10
4 TAPPING SCREW BIND CT 5X12
5 FELT RETAINER
6 FELT RING 14
7 FLAT WASHER 14
8 X RING 14
9 FLAT WASHER 16
10 GEAR HOUSING COVER
11 PAN HEAD SCREW M5X30
12 SHOE
19 INSULATION COVER
20 SLEEVE 9
21 INNER PLATE
22 PAN HEAD SCREW M4X10
23 LOCK PLATE
24 HEX. BOLT M8X25
25 LEVER 60
26 HEX. NUT M4
27 PACKING
28 PLATE 12X16
29 PLANE BEARING 14
30 PLATE
31 PAN HEAD SCREW M5X16
32 SLIDE PLATE
33 SLIDER
34 NEEDLE BEARING 708
35 HEX. SOCKET HEAD BOLT M10X18
36 GEAR COMPLETE
37 PLATE 12X16
38 PLANE BEARING 14
39 PLATE
40 PAN HEAD SCREW M5X16
41 BEARING RETAINER 56
42 BALL BEARING 6202LLB
43 RING 15
44 BALL BEARING 6902
45 HEX. SOCKET HEAD BOLT M5X12
46 PLATE (C)
47 TAPPING SCREW 5X30
48 GEAR HOUSIHG
49 BEARING RETAINER
50 PAN HEAD SCREW M5X8
51 TAPPING SCREW 5X45
52 GEAR SHAFT
53 PAN HEAD SCREW M5X8
54 RETAINING RING S-12
55 BALL BEARING 6001DDW
56 ARMATURE ASS\'Y 220V INC. 61,62
57 BAFFLE PLATE
58 TAPPING SCREW 5X60
59 RETAINER
60 FIELD ASS\'Y 220V
61 INSULATION WASHER
62 BALL BEARING 608DDW
63 NAME PLATE JR3030
64 MOTOR HOUSING COMPLETE
65 CARBON BRUSH CB-303
66 BRUSH HOLDER CAP 7-11
67 TAPPING SCREW 4X20
68 HANDLE SET INC. 70
69 SWITCH LEVER
70 HANDLE SET INC. 68
71 COMPRESSION SPRING 4
72 LOCK-ON BUTTON
73 SWITCH SGE106CV-1P
74 TAPPING SCREW 4X18
75 STRAIN RELIEF
76 CORD GUARD 9.3-90
77 POWER SUPPLY CORD 1.0-2-4.0
78 COMPRESSION SPRING 5
A01 RECIPRO SAW BLADE NO.21
A02 RECIPRO SAW BLADE NO.22
A03 RECIPRO SAW BLADE NO.23
A04 WRENCH HOLDER 3.4
A05 HEX. WRENCH 4
A07 PLASTIC CARRYING CASE
E02 NOISE SUPPRESSOR
E03 EARTH TERMINAL
