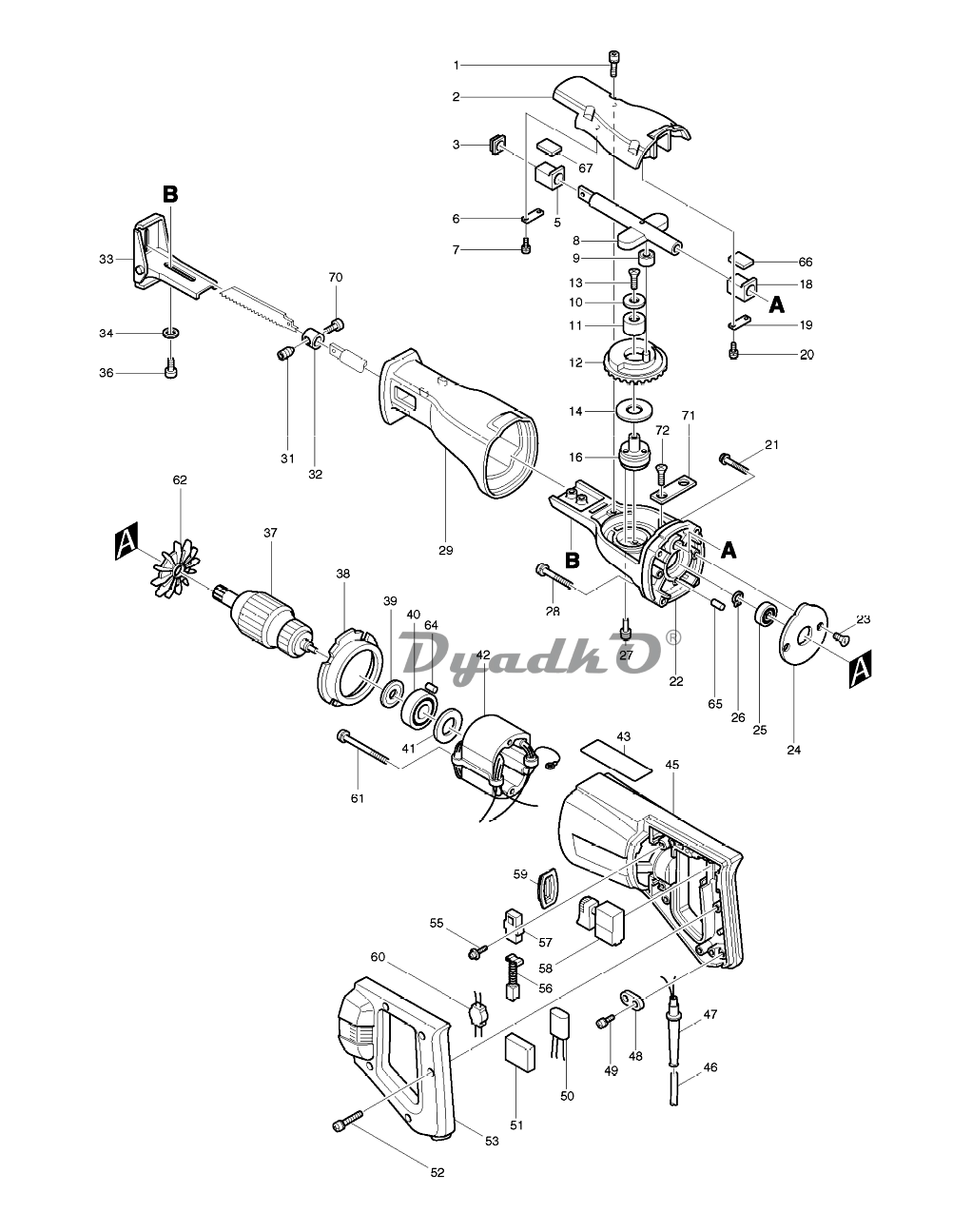

Схема MAKITA JR 3000 V

1 PAN HEAD SCREW M5X25
2 GEAR HOUSING COVER
3 SEAL
5 PLANE BEARING 12.7
6 PLATE
7 PAN HEAD SCREW M5X16
8 SLIDER (NEW)
9 NEEDLE BEARING 708
10 FLAT WASHER 6
11 NEEDLE BEARING 1216
12 GEAR ASS\'Y INC. 11
13 HEX.SOCKET HEAD BOLT M5X12 (NEW)
14 FLAT WASHER 18
16 GEAR SHAFT
17 SPACE BLOCK
18 PLANE BEARING 12.7
19 PLATE (NEW)
20 PAN HEAD SCREW M5X16
21 PAN HEAD SCREW M5X30
22 GEAR HOUSING COMPLETE (NEW)
23 COUNTERSUNK HEAD SCREW M4X (NEW)
24 BEARING RETAINER 54
25 BALL BEARING 6200DDW
26 RETAINING RING S-10
27 PAN HEAD SCREW M5X12
28 PAN HEAD SCREW M5X35
29 INSULATION COVER (NEW)
31 HEX.SOCKET SET SCREW(HOLE)M8X9
32 BLADE CLAMP (NEW)
33 SHOE
34 FLAT WASHER 5
36 HEX. SOCKET HEAD BOLT M5X14
37 ARMATURE ASS\'Y 220V INC. 39,40,62
38 BAFFLE PLATE
39 INSULATION WASHER
40 BALL BEARING 608LB
41 FLAT WASHER 14
42 FIELD ASS\'Y 220V
43 NAME PLATE JR3000V
45 MOTOR HOUSING COMPL
46 POWER SUPPLY CORD 1.0-2-4.0
47 CORD GUARD 9.3-85
48 STRAIN RELIEF
49 PAN HEAD SCREW M4X18
50 NOISE SUPPRESSOR
51 SPONGE SHEET
52 PAN HEAD SCREW M4X28
53 HANDLE COVER
55 PAN HEAD SCREW M4X14
56 CARBON BRUSH CB-55
57 BRUSH HOLDER 5-8
58 SWITCH SGEL106CV-1A
59 SWITCH COVER
60 LINE COIL
61 PAN HEAD SCREW M5X55
62 FAN 66
63 SPRING PIN 2.5-9
64 RUBBER PIN 4
65 RUBBER PIN 4
66 PLATE 12X16
67 PLATE 12X16
68 PIN 3
70 HEX. SOCKET HEAD BOLT M5X15
71 PLATE (C)
72 HEX. SOCKET HEAD BOLT M5X12
73 MAKITA LABEL
400 RECIPRO SAW BLADE SET
403 HEX. WRENCH 4
404 WRENCH HOLDER 3.4
405 PLASTIC CARRYING CASE
903 VARNISHED POLYESTER TUBE 3-70
INSULATION COVER (OLD)
PLANE BEARING 12.8
COUNTERSUNK HEAD SCREW M4X (OLD)
GEAR HOUSING COMPLETE (OLD)
SLIDER (OLD)
COUNTERSUNK HEAD SCREW M5X (OLD)
BLADE CLAMP (OLD)
PLANE BEARING 12.7
PLATE (OLD)
