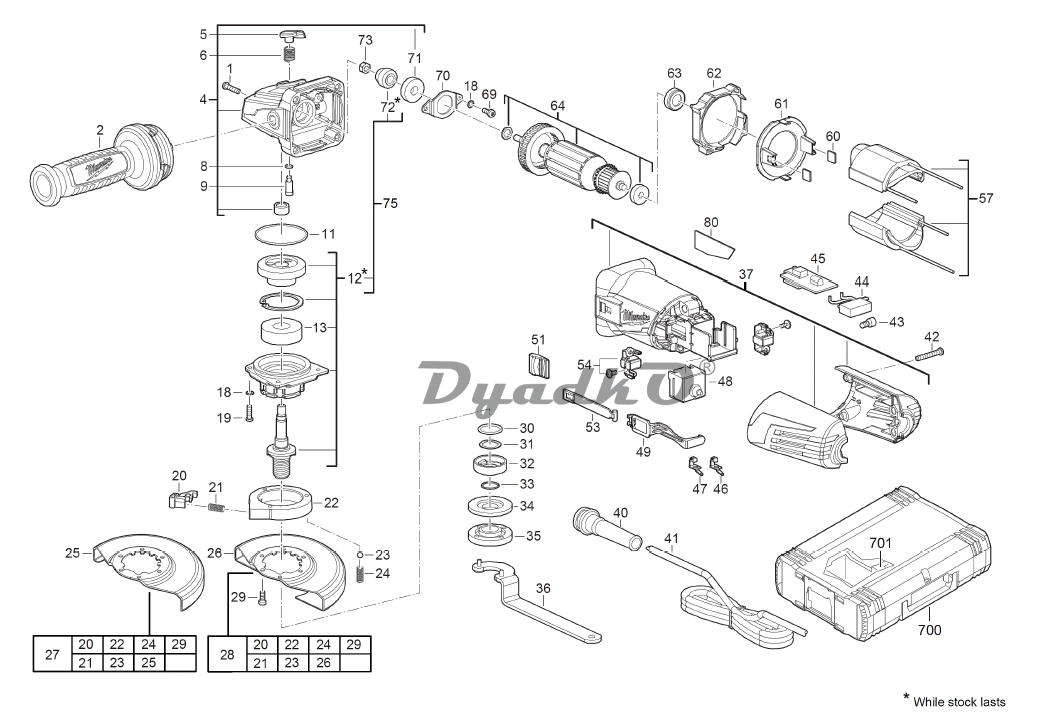

Схема MILWAUKEE AGV 12-125X (4000428086)

0001 4002395855292 SCREW
0002 4002395855919 AUXILIARY HANDLE
0004 4002395855926 GEAR BOX
0005 4002395855933 TRIGGER
0006 4002395855940 SPRING
0008 4002395855957 O-RING
0009 4002395855964 LOCKING BOLT
0011 4002395824472 O-RING
0012 4002395883424 SPINDLE KIT
0013 4002395875733 BALL BEARING
0018 4002395823895 PROTECTION WASHER
0019 4002395823796 SCREW
0020 4002395855988 FLANGE
0021 4002395855995 SPRING
0022 4002395860340 SPACER
0023 4058546080525 BALL
0024 4002395856602 SPRING
0025 GUARD CAP
0026 4002395180936 CUTTING GUARD
0027 4002395180288 GUARD CAP
0028 4002395180929 CUTTING GUARD
0029 4002395856633 SCREW
0030 4002395856640 O-RING
0031 4002395856657 SPRING WASHER
0032 4002395860357 FLANGE
0033 4002395856664 RETAINING RING
0034 4002395856671 FLANGE
0035 4002395887699 FLANGE NUT
0036 4002395823727 SPANNER M14
0037 4002395259601 HOUSING
0040 4002395856695 CABLE COLLAR
0041 4002395824052 CONNECTION CABLE
0042 4002395857302 SCREW
0043 4002395772445 CONNECTOR
0044 4002395857319 CAPACITOR
0045 4002395857326 PRINTED CIRC. BOARD
0046 4002395857333 CLAMP
0047 4002395857340 CLAMP
0048 4002395863020 SWITCH
0049 4002395857357 SLIDE
0051 4002395857364 SWITCH BUTTON
0053 4002395857371 SLIDE
0054 4002395857388 CARBON BRUSH SET
0057 4002395854608 ELECTRIC FIELD
0060 4002395854615 BLOCK
0061 4002395854622 FOOT
0062 4002395144709 SPEED GOVERNOR
0063 4002395854646 RUBBER SLEEVE
0064 4002395854653 ARMATURE ASSEMBLY
0069 4002395823789 SCREW
0070 4002395860364 RETAINER
0071 4002395826988 BALL BEARING
0072 PINION
0073 4002395824526 NUT
0075 4002395883424 SPINDLE KIT
0080 4002395856053 RATING PLATE
700 4002395349401 CARRYING CASE WITH FOAM INSERT MET
701 4002395849673 INSERT
