4105KB

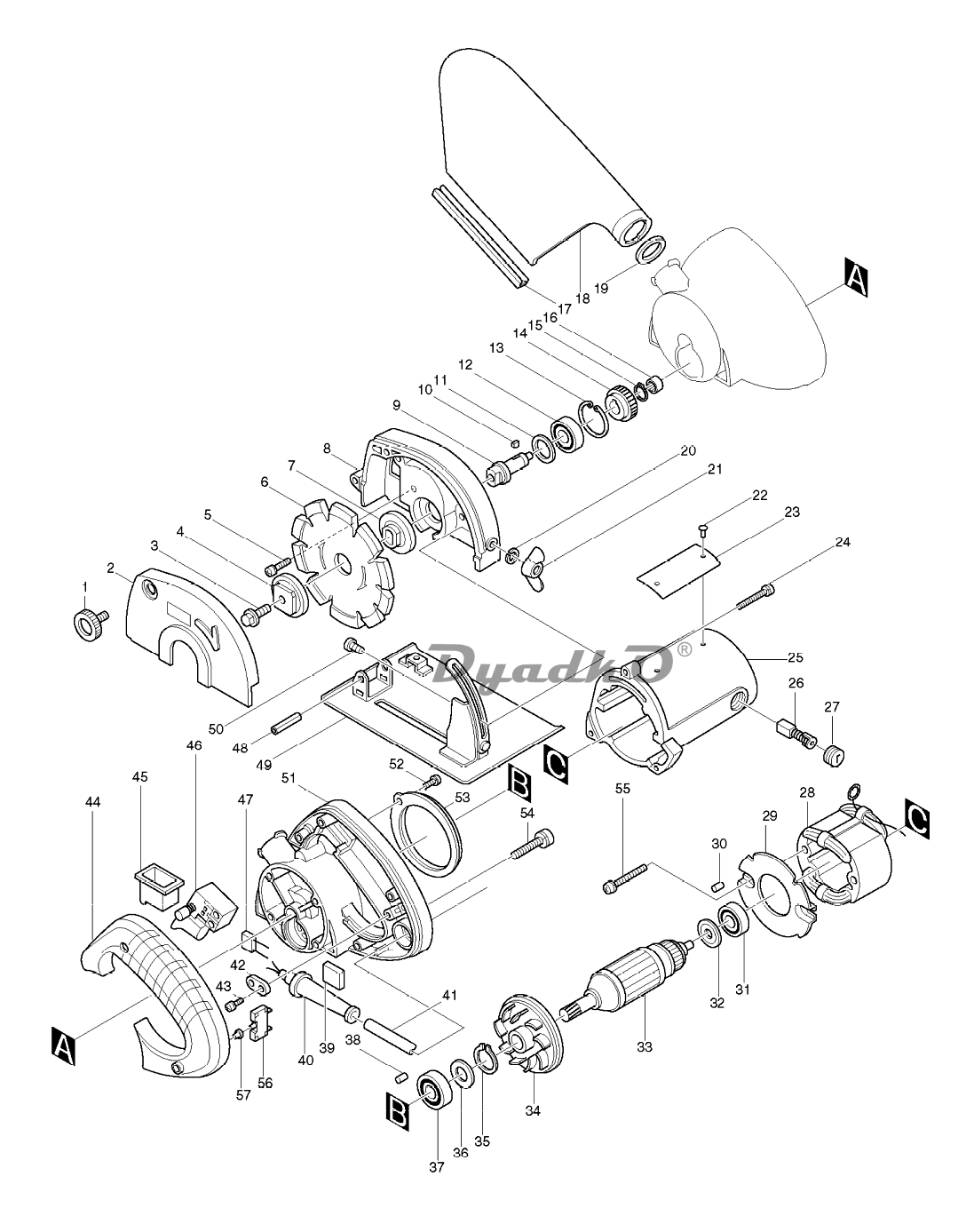

Схема MAKITA 4105KB
1
PAN HEAD SCREW M5X10
2
BLADE COVER COMPLETE
3
HEX. SOCKET HEAD BOLT M6X20
4
OUTER FLANGE 36
5
PAN HEAD SCREW M4X18
6
DIAMOND WHEEL125 SEG/CONCRETE
7
INNER FLANGE 36
8
BLADE CASE
9
SPINDLE
10
WOODRUFF KEY 4
11
THIN WASHER 12
12
BALL BEARING 6201DDW
13
RETAINING RING R-32
14
HELICAL GEAR 40
15
RETAINING RING S-12
16
NEEDLE BEARING 709
17
FASTENER
18
DUST BAG ASSEMBLY INC. 17,19
19
RUBBER RING 26
20
SPRING WASHER 6
21
WING NUT M6
22
RIVET 0-5
23
NAME PLATE 4105KB
24
PAN HEAD SCREW M5X40
25
MOTOR HOUSING INC. 30
26
CARBON BRUSH CB-100
27
BRUSH HOLDER CAP 6-10
28
FIELD ASS\'Y 220V
29
BAFFLE PLATE
30
RUBBER PIN 4
31
BALL BEARING 608LLB
32
INSULATION WASHER
33
ARMATURE ASS\'Y 220V INC. 31,32,34-37
34
FAN 72
35
RETAINING RING S-12
36
WASHER 12
37
BALL BEARING 6001DDW
38
RUBBER PIN 4
39
SPONGE SHEET
40
CORD GUARD 8-85
41
POWER SUPPLY CORD 1.0-2-2.5
42
STRAIN RELIEF
43
PAN HEAD SCREW M4X18
44
HANDLE COVER COMPLETE
45
SWITCH COVER
46
SWITCH SGES215C
47
NOISE SUPPRESSOR
48
SPRING PIN 6-36
49
BASE
50
CAP SQUARE NECK BOLT M6X20
51
GEAR HOUSING INC. 38
52
PAN HEAD SCREW M4X10
53
SEPARATOR
54
PAN HEAD SCREW M4X22
55
PAN HEAD SCREW M5X65
56
OVER CURRENT RELAY 220V
57
RELAY COVER
400
WRENCH 22 1
401
HEX. WRENCH 5 1
402
WRENCH HOLDER 5.6 1
900
RING 20
