6300-4

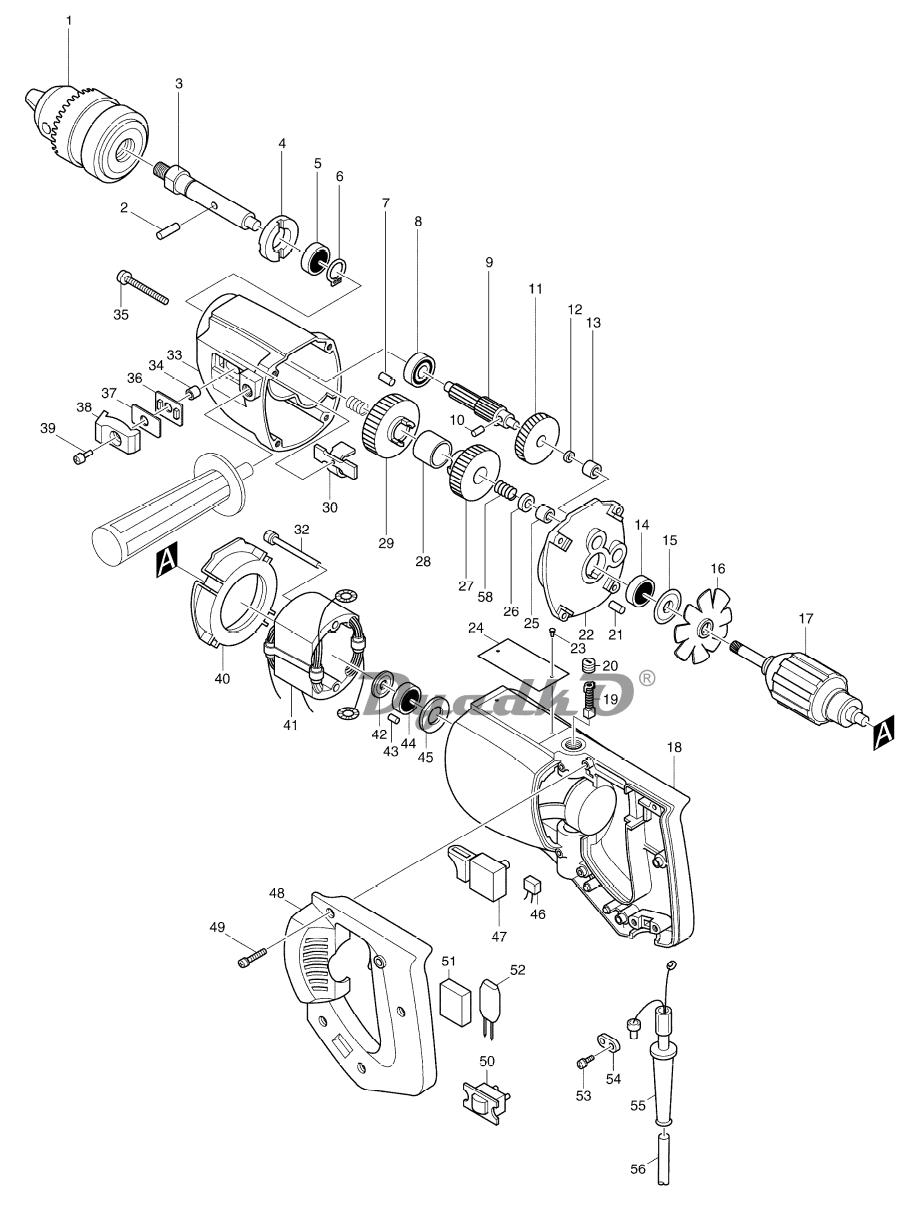

Схема MAKITA 6300-4
1
DRILL CHUCK S13
2
PIN 5
3
SPINDLE
4
BEARING RETAINER 22-36
5
BALL BEARING 6202LLB
6
RETAINING RING S-15
7
RUBBER PIN 4
8
BALL BEARING 626LLB
9
SPUR GEAR 7-13
10
PIN 4
11
HELICAL GEAR 43
12
FLAT WASHER 8
13
NEEDLE BEARING 810
14
BALL BEARING 608LLB
15
DUST SEAL 8
16
FAN 68
17
ARMATURE ASS\\\'Y 220V INC. 14,15,16,42,44
18
MOTOR HOUSING INC. 43
19
CARBON BRUSH CB-51
20
BRUSH HOLDER CAP 5-8
21
RUBBER PIN 4
22
GEAR HOUSING COVER INC. 21
23
RIVET 0-5
24
NAME PLATE 6300-4
25
NEEDLE BEARING 810
26
FLAT WASHER 8
27
SPUR GEAR 38
28
SLEEVE 20
29
SPUR GEAR 45
30
SLIDER
32
PAN HEAD SCREW M5X50
33
GEAR HOUSING COMPLETE INC. 7
34
SLEEVE 5
35
PAN HEAD SCREW M5X40
36
SET SPRING
37
LEAF SPRING
38
GEAR SWITCH BUTTON
39
PAN HEAD SCREW M5X12
40
BAFFLE PLATE
41
FIELD ASS\\\'Y 220V
42
INSULATION WASHER
43
RUBBER PIN 4
44
BALL BEARING 608LLB
45
FLAT WASHER 14
46
NOISE SUPPRESSOR
47
SWITCH SGEL206C-2
48
HANDLE COVER
49
PAN HEAD SCREW M4X28
50
SWITCH SS106A
51
SPONGE SHEET
52
DIODE S3V60ZM-H
53
PAN HEAD SCREW M4X18
54
STRAIN RELIEF
55
CORD GUARD 8-85
56
POWER SUPPLY CORD 1.0-2-2.5
58
COMPRESSION SPRING 14
59
GASKET
400
CHUCK KEY S13
401
GRIP 36 COMPLETE
402
KEY HOLDER
