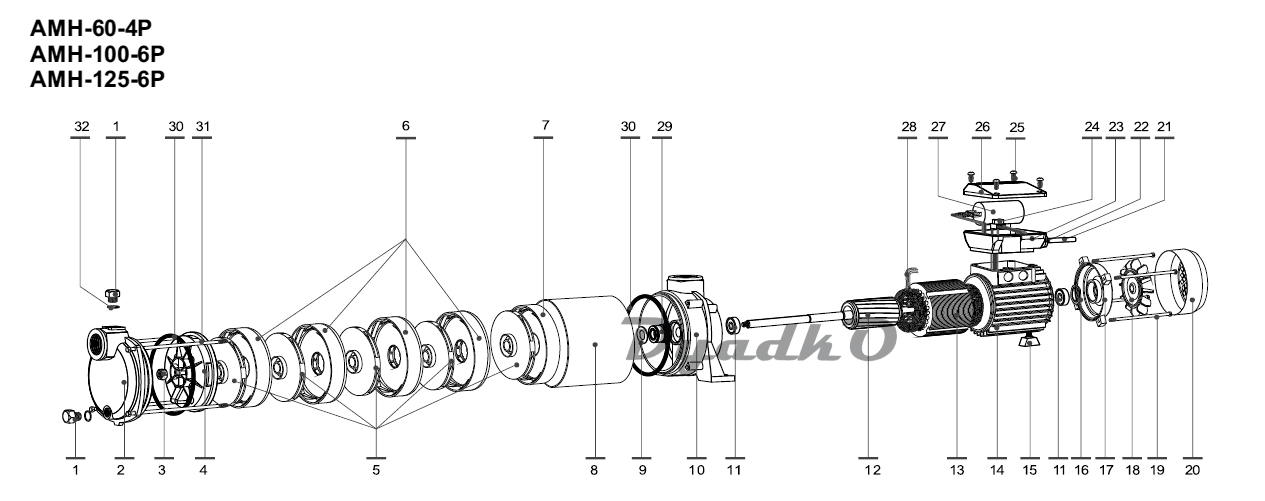

| 1 | Screw 1 |
| 2 | Suction Mounting |
| 3 | Locking Nut |
| 4 | Self-priming Cover |
| 5 | Impeller |
| 6 | Diffuser 1 |
| 7 | Diffuser 2 |
| 8 | Pump Housing |
| 9 | Flat Mat |
| 10 | Discharge Mounting |
| 11 | Ball Bearing |
| 12 | Motor Rotor |
| 13 | Stator Coil |
| 14 | Motor Body |
| 15 | Motor Bracket |
| 16 | Spring Washe |
| 17 | Motor End Cover |
| 18 | Fan |
| 19 | Tie Bolt 1 |
| 20 | Fan Cover |
| 21 | Power Cable |
| 22 | Terminal Box Screw |
| 23 | Terminal Box |
| 24 | Terminal Block |
| 25 | Screw 2 |
| 26 | Terminal Box Cover |
| 27 | Capacitor |
| 28 | Connector Wire |
| 29 | Mechanical Seal |
| 30 | Seal 1 |
| 31 | Tie Bolt 2 |
| 32 | Seal 2 |
