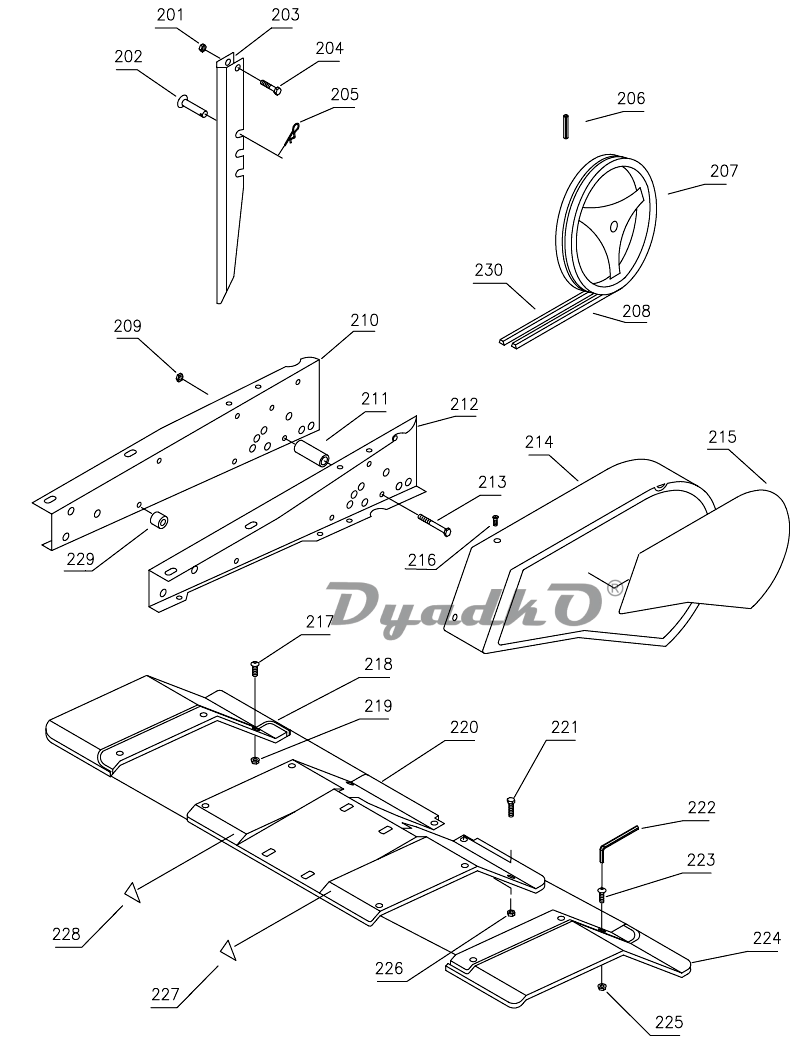

| 201 | Nut |
| 202 | Cotter bolt |
| 203 | Depth skid |
| 204 | Screw |
| 205 | Cotter pin |
| 206 | Pin |
| 207 | Pulley |
| 208 | Belt |
| 209 | Nut |
| 210 | Member R yellow |
| 211 | Bushing |
| 212 | Member L yellow |
| 213 | Screw |
| 214 | Prot. Sheet |
| 215 | Label |
| 216 | Screw |
| 217 | Screw |
| 218 | Outer Sheet R |
| 219 | Nut |
| 220 | Sheet yellow |
| 221 | Screw |
| 222 | Torx key |
| 223 | Screw |
| 224 | Outer Sheet L |
| 225 | Nut |
| 226 | Nut |
| 227 | Warning mark |
| 228 | Warning mark |
| 229 | Bushing |
| Torx key | |
| Sheet red | |
| Member R red | |
| Member L red |
