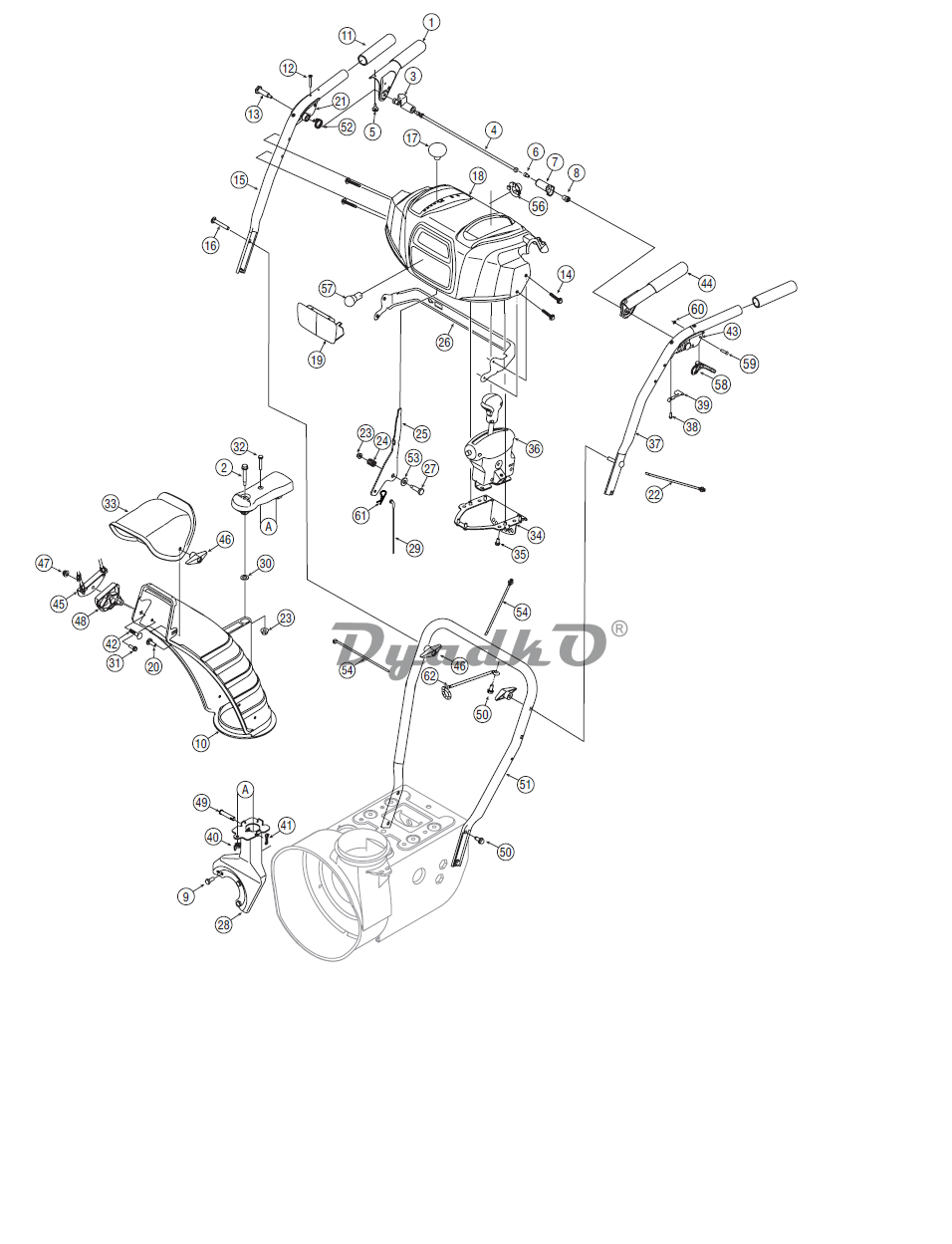

Схема (деталировка) снегоуборщики бензиновые CRAFTSMAN 889990 (247.889990) Рукав. Подбор по модели, низкие цены в интернет-магазине Дядько.ру с доставкой по Москве и всей России

1.	Handle Engagement Assembly RH
2.	Flange Shoulder Screw
3.	Lock Plate
4.	Pivot Rod
5.	Rubber Bumper
6.	Screw, 1/4-20 x .500
7.	Clutch Lock Cam
8.	Shoulder Nut, 1/4-20
9.	Hex Screw, 5/16-24 x .750
10.	Lower Chute
11.	Handle Grip
12.	Screw, #10-24 x 0.375
13.	Shoulder Screw, 1/4-20
14.	Screw, 1/4-20 x 1.625
15.	Upper Handle RH
16.	Carriage Screw, 5/16-18 x 2.25
17.	Shift Knob
18.	Handle Panel
19.	Lens
20.	Carriage Bolt, 5/16-18 x 1.0
21.	Handle Clutch Lock RH Assy
22.	Cable Tie
23.	Flange Lock Nut, 1/4-20
24.	Compression Spring
25.	Shift Lever
26.	Panel Bracket
27.	Shoulder Screw
28.	Chute Support Bracket
29.	Speed Selector Cable
30.	Flat Washer, .25 x .630 x .0515
31.	Hi-Lo Screw, 1/4-15 x .75
32.	Hex Screw, 1/4-20 x 1.50
33.	Upper Chute
34.	Joystick Bracket
35.	Hi-Lo Screw, 1/4-15 x 0.5
36.	4-Way Chute Control™ Assembly
37.	Upper Handle LH
38.	Screw, #8-16 x 0.50
39.	Clutch Lock Spring
40.	Wing Nut, 1/4-20
41.	Bow Tie Cotter Pin
42.	Carriage Bolt, 5/16-18 x 1.50
43.	Handle Clutch Lock LH Assy
44.	Handle Engagement Assembly LH
45.	Cable Bracket
46.	Wing Knob
47.	Flange Lock Nut, 5/16-18
48.	Chute Tilt Cable Guide
49.	Clevis Pin
50.	Screw, 5/16-18 x 0.75
51.	Lower Handle
52.	Torsion Spring
53.	Flat Washer
54.	Cable Tie
55.	Wire Harness (Not Shown)
56.	Light Socket
57.	Lamp
58.	Steering Control
59.	Pin, 3/16
60.	E-Ring
61.	Click Pin
62.	Cable Guide
