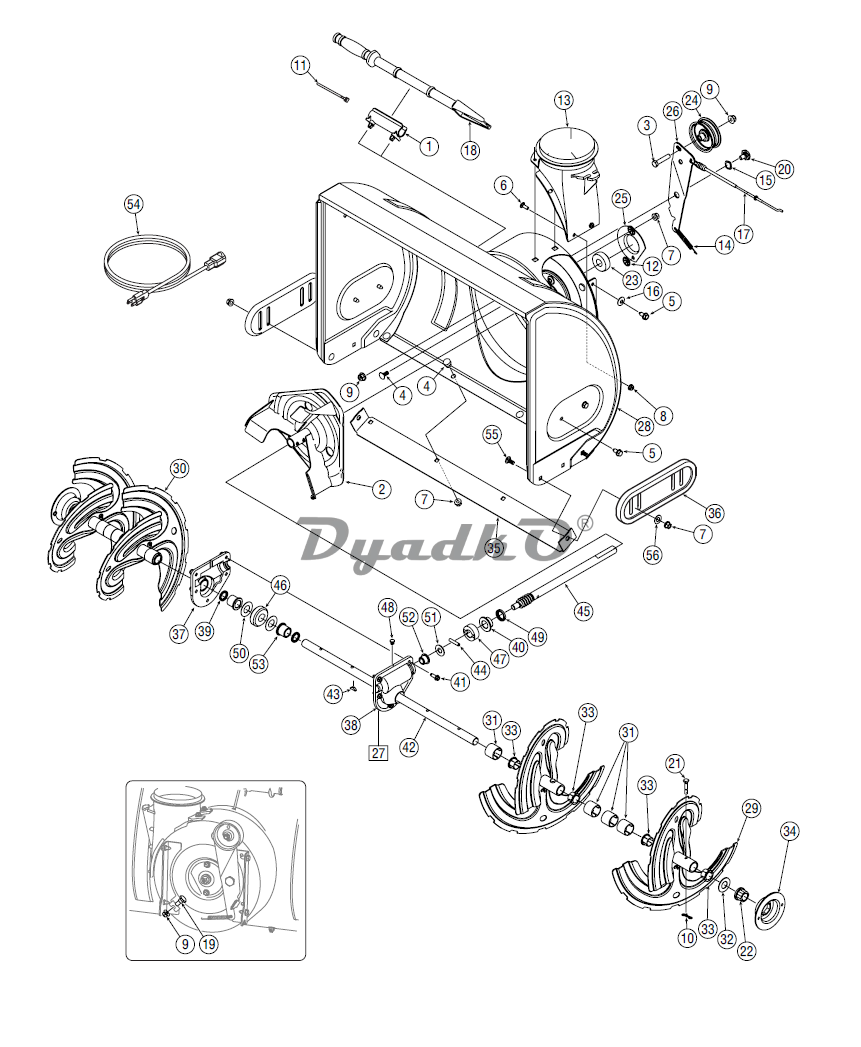

1. |
Snow Removal Tool Mount |
|
2. |
Impeller Assembly, 12\" Dia. |
|
3. |
Hex Screw, 3/8-16, 1.75, Gr5 |
|
4. |
Bolt, Carriage, 5/16-18, .750 Gr1 |
|
5. |
Screw, 5/16-18, 0.750 |
|
6. |
Screw, Carriage, 1/4-20, .750, Gr5 |
|
7. |
Nut, Flange Lock, 5/16-18, Nylon |
|
8. |
Nut, Flange Lock, 1/4-20, Nylon |
|
9. |
Nut, Flange Lock, 3/8-16, Nylon |
|
10. |
Cotter Pin, Bow-tie |
|
11. |
Cable, Tie, 3/16 x .05 x 7.4 |
|
12. |
Nut, Push-on, .25 Dia |
|
13. |
Chute, Adapter 5\" Dia |
|
14. |
Spring, Extension, .38 OD x 4.59 |
|
15. |
Washer, Wave, .625 x .885 x .015 |
|
16. |
Washer, Bell, .340 x .872 x .060 |
|
17. |
Clutch Cable, Auger, 47.23\" |
|
18. |
Snow Removal Tool |
|
19. |
Screw, Shoulder, .498 x .34, 3/8-16 |
|
20. |
Screw, Shoulder, .625 x .17, 3/8-16 |
|
21. |
Shear Pin, .25 x 1.50 |
|
22. |
Bearing, Hex Flange x .75 ID |
|
23. |
Bearing, Ball, .75 ID x 1.85 OD |
|
24. |
Flat Pulley, Idler, 2.75 OD |
|
25. |
Housing, Bearing, 1.85 ID |
|
26. |
Bracket, Auger Idler w/ Brake |
|
27. |
Gearbox Assembly, Auger, 28\" |
|
28. |
Housing Assembly, Auger 28\" |
|
29. |
Spiral Assembly, LH |
|
30. |
Spiral Assembly, RH |
|
31. |
Spacer, 1.25 OD x .75 ID x 1.00 |
|
32. |
Washer, Flat, .76 x 1.49 x .06 |
|
33. |
Bushing, Flange, .80 ID x .91 OD |
|
34. |
Housing, 1\" Hex Bearing |
|
35. |
Shave Plate, 2.25 x 27.66 |
|
36. |
Slide Shoe |
|
37. |
Housing, Auger, RH Reduced |
|
38. |
Housing, Auger, LH Reduced |
|
39. |
Seal, Oil, .750 x 1.00 x .125 |
|
40. |
Bearing, Flange, .75 x 1.0 x .59 |
|
41. |
Screw, Self-tapping, 1/4-20, 0.750 |
|
42. |
Axle, Auger, 28\" |
|
43. |
Key, Hi-pro 3/16 x 5/8 |
|
44. |
Pin, Dowel, .25 OD x 1.2 |
|
45. |
Shaft, Worm .75 OD |
|
46. |
Gear, Worm 20T |
|
47. |
Collar, Thrust |
|
48. |
Plug, 1/4 x .437 |
|
49. |
Seal, Oil, .75 x 1 x .131 |
|
50. |
Washer, Flat, .760 ID x 1.5 OD |
|
51. |
Washer, Flat, .51 x 1.12 |
|
52. |
Bearing, Flange, .75 x 1.0 x .925 |
|
53. |
Bearing, Flange, .75 x 1.00 x .975 |
|
54. |
Extention Cord, 110V |
|
55. |
Screw, Carriage, 5/16-18 x 1.00 |
|
56. |
Washer, Flat, .349 x .879 x .063 |
