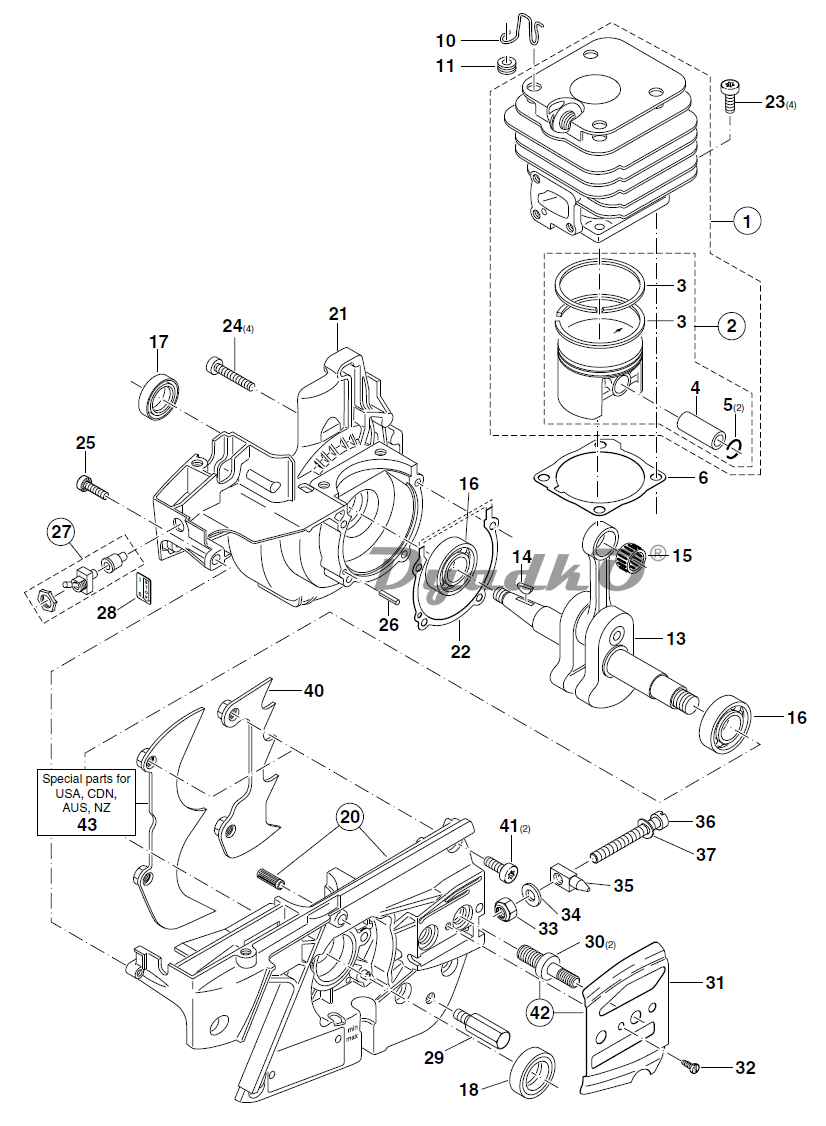

| 1 | Cylinder / piston cpl. |
| 2 | Piston assy. |
| 3 | Piston ring |
| 4 | Piston pin |
| 5 | Spring ring |
| 6 | Gasket |
| 10 | Cramp |
| 11 | Rubber bush |
| 13 | Crankshaft cpl. |
| 14 | Key |
| 15 | Needle cage |
| 16 | Ball bearing |
| 17 | Radial ring |
| 18 | Radial ring |
| 20 | Crankcase cl.side 41809 ➠ 43106 ➠ |
| 21 | Crankcase mag. side |
| 22 | Gasket |
| 23 | Screw |
| 24 | Screw |
| 25 | Screw |
| 26 | Spiral clamping pin |
| 27 | Short-circuit switch cpl. |
| 28 | Label |
| 29 | Chain catch bolt |
| 30 | Bolt |
| 31 | Guide plate => |
| 31 | Guide plate |
| 32 | Screw |
| 33 | Hexagonal nut |
| 34 | Disc |
| 35 | Nut with pivot |
| 36 | Screw |
| 37 | Spring washer |
| 40 | Spike bar |
| 41 | Screw |
| 42 | Modification set for STIHL guide bars |
| 42 | Modification set f. HUSQVARNA guide bars |
