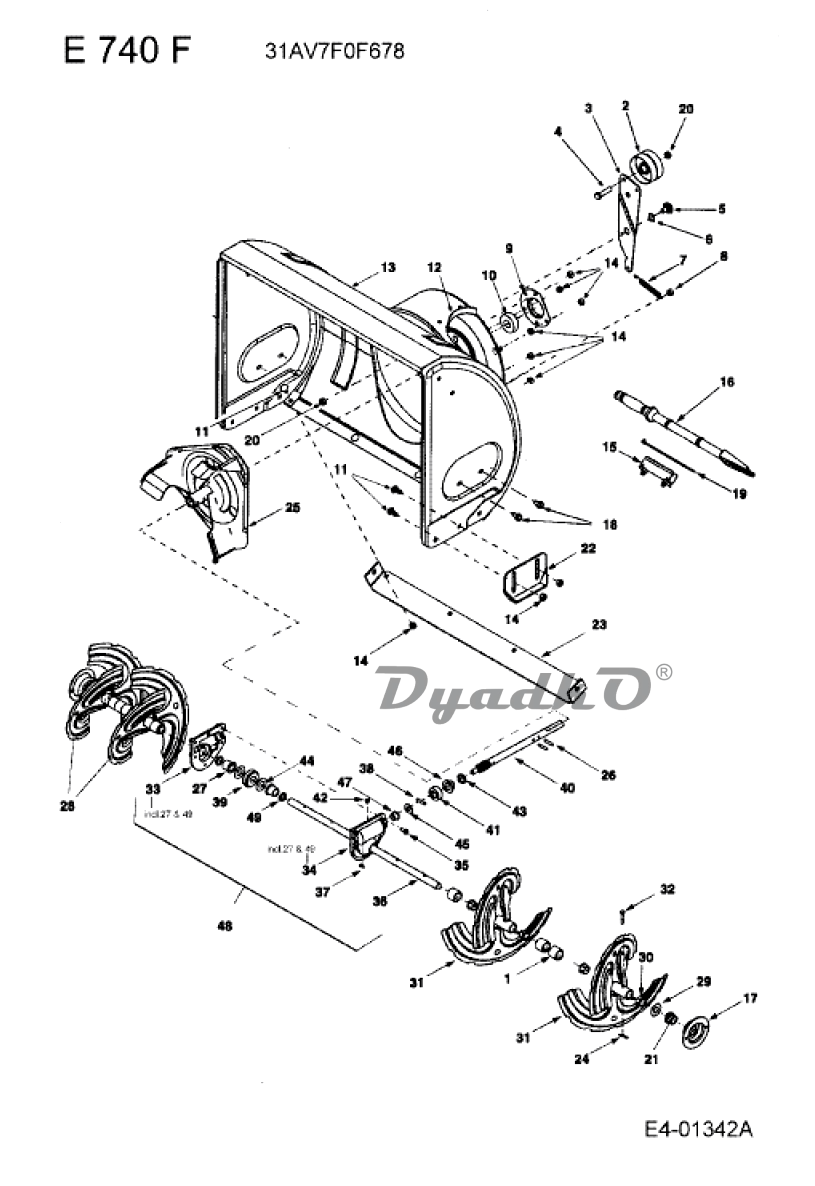

Схема MTD E 740 F (31AV7F0F678) (2006) Auger housing, Auger, Auger gearbox

1 SPACER:1.25ODx.75IDx1.00 LG 731-04870
2 TENSION PULLEY 756-0178
3 PLATE-BYPASS 784-5632B-0637
4 HHCS:3/8-16:1.75:GR5:STD FINISH:MTD STD 701-01000
5 SCR:SHLDR:.625 x.17:3/8-16 938-0281/ FINISH:ZINK SIEHE ZG
6 WASHER:WAVE:.625x.885x.015 FINISH:STD 701-01001 FSt
7 SPR:EXTN:.38 OD x 3.6 LG FINISH:MTD 701-01006 932-0611
8 NUT:HEXLK:5/16-18:GR5:PATCH PATCH FINISH:701-01000
9 HSG:BRG:1.85 ID 05931A
10 BALL BRG:.75 ID x 1.85 OD FLNG 941-0309
11 BOLT:CRG:5/16-18:.750 GR1 FINISH:701-01000 910-0451
12 REINFORCEMENT-CHUTE 5.0 705-5226-0637
13 HOUSING ASM:AUGER 26\" MTD RED 684-04128A-0638
14 FLANGED NUT 5/16-18:GRF:NYLON FINISH:MTD STD SPEC-101616
15 MOUNTING BRACKET - CHUTE TOOL 731-2635
16 CHUTE CLEAN-OUT TOOL 731-2643
17 HOUSING, BEARING:1\" HEX FINISH:LACKIERT 790-00087A FC?
18 SCREW:TT:5/16-18:0.625HXINDWSH FINISH:MTD SPEC-701-01002
19 CBL:TIE: 3/16 X .05 X 7.4 MATERIAL:NYLON-SCHWARZ
20 NUT:FLGLK:3/8-16:GRF:NYLON FINISH:SPEC-101616 912-04065
21 BRG:HEX FLANGE x.75 ID FINISH:SCHWARZ 941-0245
22 SLIDE SHOE 784-5580-0637 / SCHWARZ
23 SHAVE-PLATE 26\" 790-00121-0638
24 PIN-COTTER FINISH:VERZINKT
25 IMPELLOR 984-0065-0637
26 SPRING PIN 715-0114/915-0114
27 FLANGE BEARING 741-0661A
28 AUGER ASM-RH MTD RED 684-04108-0638
29 WASH:FLAT:.760x1.490X.060:HD FINISH:MTD STD 701-01001
30 BUSH:FLG:.800 ID x.910 OD FINISH:NATUR
31 AUGER ASM-LH MTD RED 684-04107-0638
32 PIN-SHEAR:.25 x 1.50:GR2 FINISH:701-01000
33 RH REDUCER HOUSING 618-0123 MB LINKS
34 LEFT HOUSING 918-0124 MB RECHTS
35 SCR:TT:1/4-20:.750:HXINDWSH MTD SPEC-701-01002 910-0642
36 SHAFT AUGER 25.50\" 711-04284
37 KEY:HI-PRO:3/16 x 5/8 714-0161/914-0161
38 PIN-CLEVIS 715-04021
39 GEAR-WORM 917-0528A *
40 Worm shaft 717-0526
41 BUSH 718-04071
42 GREASE PLUG 721-0325
43 SEAL-OIL 721-0327
44 WASH:SHIM:.760x1.500X.030:HD FINISH:BLAU VERZINKT 936-0351
45 WASH:THRST:.510 X 1.120 X .060 FINISH:MTD STD 701-01001
46 BRG:HEX FLG:.628 ID:SPLIT 741-0662
47 BRG:HEX FLG:.628 ID:SPLIT 741-0663
48 GEARBOX ASM: AUGER 30\" TRACK 918-04205
49 OIL SEAL 3/4 ID 721-0179 / 921-0179
