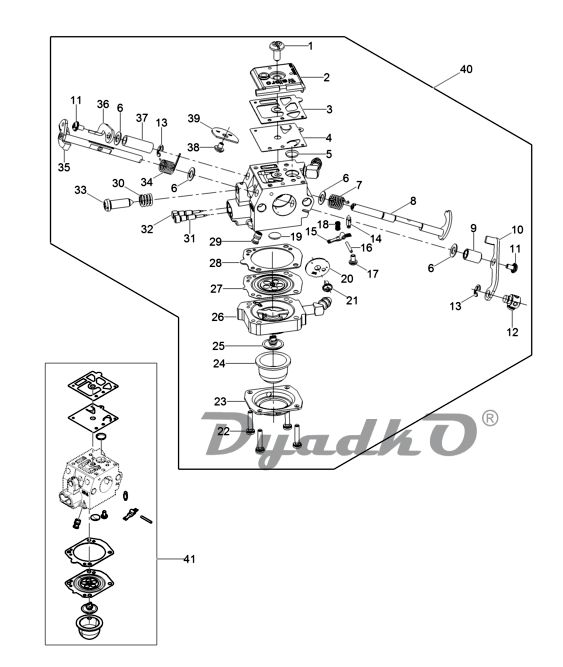

| 1 | Pan head screw |
| 2 | Cover |
| 3 | Gasket |
| 4 | Diaphragm cpl. |
| 5 | Screen |
| 6 | Washer |
| 7 | Spring |
| 8 | Choke shaft |
| 9 | Spacer |
| 10 | Throttle lever |
| 11 | Screw |
| 12 | Swivel |
| 13 | Retaining ring |
| 14 | Inlet valve |
| 15 | Lever |
| 16 | Pin |
| 17 | Screw |
| 18 | Spring |
| 19 | Plug |
| 20 | Throttle valve |
| 21 | Screw |
| 22 | Screw |
| 23 | Cover |
| 24 | Bulb |
| 25 | Valve |
| 26 | Air purge cpl. |
| 27 | Diaphragm cpl. |
| 28 | Gasket |
| 29 | Nozzle |
| 30 | Spring |
| 31 | Needle |
| 32 | Needle valve |
| 33 | Idle speed screw |
| 34 | Spring |
| 35 | Throttle shaft cpl. |
| 36 | Choke lever |
| 37 | Sleeve |
| 38 | Screw |
| 39 | Choke valve |
| 40 | Walbro carburetor 12,70mm |
| 41 | Carburetor Repair Kit |
