BS 60-2i (5200000664) Revision 105

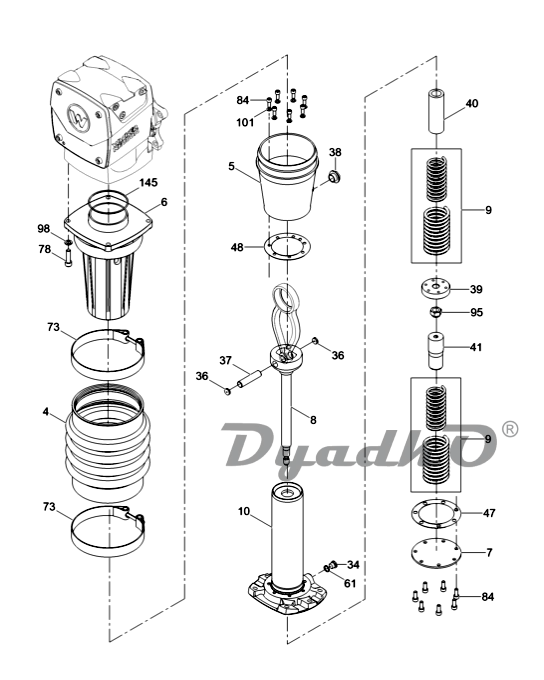

Схема WACKER NEUSON BS 60-2i (5200000664) Revision 105 Guide Cylinder cpl.
4
Bellows
5
Protective pipe 24Nm/18ft.lbs
6
Guide cylinder
7
Spring cover
8
Ram
9
Spring Set
10
Spring cylinder
34
Plug (threaded) M16 x 1,5 55Nm/41ft.lbs
36
Push-in plug
37
Piston pin
38
Sight Glass 10Nm/7ft.lbs
39
Piston guide
40
Bushing
41
Bushing
47
Gasket
48
Gasket
61
Gasket A16 x 20
73
Hose clamp
78
Cheese head screw M10 x 35 44Nm/32ft.lbs
84
Socket head screw M8 x 20 25Nm/18ft.lbs
95
Locknut M22 x 1,5 250Nm/184ft.lbs
98
Lock washer A10
101
Lock washer A8
145
O-Ring 96 x 3
