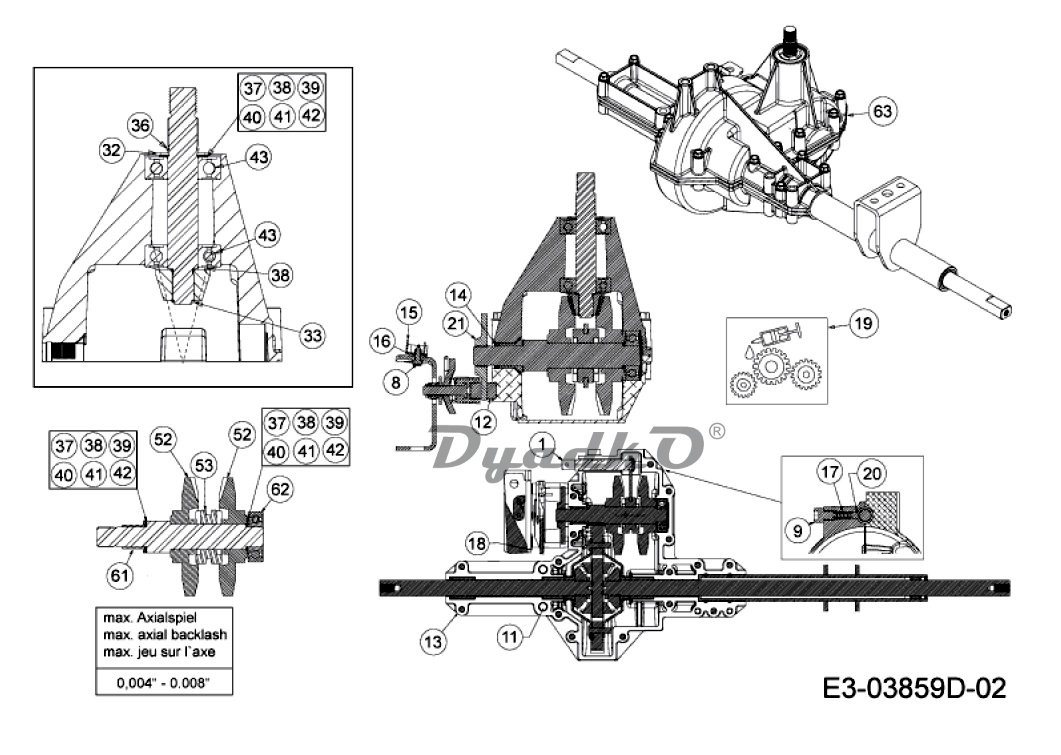

Схема (деталировка) тракторы садовые и райдеры MTD MASTERCUT 76 (13AH761C659) 2011 Gearbox. Подбор по модели, низкие цены в интернет-магазине Дядько.ру с доставкой по Москве и всей России

1	SHF ASM:YOKE:EURO PRESSTEIL:FINISH:
8	SCR:AB:#8-18:0.500:HXINDWH FINISH:MTD STD 701-01002
9	SCREW TT 5/16-18 .375lg 710-04731
11	SCREW:TT:1/4-20:1.625:HXINDWSH FINISH:MTD SPEC-701-01002
12	BRAKE CORK FINISH:
13	HSG:LWR 719-04358
14	SEAL:.625 .812X.094 FINISH:
15	SWITCH:SPRING:SHORT FINISH:VERZINKT SIEHE ZG.
16	INSULATING PLATE FINISH:NATUR ODER SCHWARZ
17	SPR:COMP:.205 OD x.61 LG FINISH:PHOS AND OIL SIEHE ZG.
18	WASHER:FLAT:.283 x.750 x .030 FINISH:MTD STD 701-01000
19	GEAR BOX GREASE (400G CAN) +Li12 HYDROXYSTEARAT
20	BALL:DETNT:7/32 FINISH:SIEHE ZG.
21	BRAKE DISC FINISH:ÖL UND FETTFREI
32	RING:E-TYPE:.750 FINISH:PHOS & OIL/916-0231
33	RING-RETAINING .394\" EXT FINISH:SCHWARZ PHOS & OIL
36	Circlip FINISH:ZINC PHOSPHATE
37	WASH:SHIM:.625x1.000x.030:HD ZINC SIEHE ZG.
38	WASH:SHIM:.634x1.000x.040:HD MTD STD 701-01001 936-0337
39	WASHER:SHIM:.630x1.000x.020:HD FINISH:SIEHE ZG.
40	WASH:SHIM:1.00 x.632 x .010 FINISH:GEÖLT
41	WASHER:FL:.632X1.000X.035:HD FINISH:ZINC SIEHE ZG.
42	WASHER:SHIM:.632x1.000x.025:HD FINISH:SIEHE ZG. 936-0495
43	BRG:BALL:.625x40x12:6203:DS FINISH: *
52	GEAR:BEVEL:55T FINISH:ÖL GEDIPPT
53	COLR:CLU FINISH:SIEHE ZG.
61	BRG:FLG:.625 X .75 X .75 FINISH:ÖL-IMPRÄGNIERT
62	BRG:BALL:.625x40x12:6203:DS FINISH: *
63	SERVICE KIT LT-5 TRANSMI. E-TEIL-SET
